Multifunction 12 Heads Concrete Floor Grinder 650mm Casting Mould Planetary System

Multifunction 12 Heads Concrete Floor Grinder 650mm Casting Mould Planetary System

Products - Concrete Floor Grinder
  • High Light

    concrete floor polishing machine

    ,

    concrete floor polishing equipment

    ,

    Casting Mould Concrete Floor Grinder

  • Feature
    Planetary System
  • Color
    OEM
  • Voltage
    380-440V
  • Phase
    3
  • Type
    S12-650
  • Work Width
    650
  • Place of Origin
    Made-in-China
  • Brand Name
    MERROCK
  • Certification
    CE, ISO9001,etc
  • Model Number
    S12-650
  • Minimum Order Quantity
    1pc
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    5-7 work days, OEM 20-25 work days
  • Payment Terms
    TT , West Union
  • Supply Ability
    50 sets/month

Multifunction 12 Heads Concrete Floor Grinder 650mm Casting Mould Planetary System

  • Multifunction 12 Heads Concrete Floor Grinder 650mm Casting Mould Planetary System
  • Multifunction 12 Heads Concrete Floor Grinder 650mm Casting Mould Planetary System
  • Multifunction 12 Heads Concrete Floor Grinder 650mm Casting Mould Planetary System
  • Multifunction 12 Heads Concrete Floor Grinder 650mm Casting Mould Planetary System
Get Price Contact Now





650mm Planetary System Concrete Floor Grinder Or Polisher For Concrete



Quick Detail:



Name 12 heads floor polishing machine Application Marble, granite, terrazzo, concrete floor
Type S12-650 Function Leveling, polishing, grinding, renovating





Description:

  1. 650 mm large work areas improve the work efficiency.
  2. Dia Casting moulding chassis
  3. Separated body make it easy for carrying.
  4. With multifunction plate include magnetic discs and Velcro discs meet different clients’ demand.
  5. Four plates, each fix 3 pieces small discs, total 18 pieces small discs one machine, each time need fix 18 pieces polishing pads.
  6. Handle is adjustable, is easy to control.
  7. With inverter could adjust the speed from 0 to 1500 rmp.
  8. Use import NSK bearing.

Application:



For stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Specification:



Type S12-650-380B S12-650-220B
Voltage 380V 380V
Motor Power 7.5KW 7.5KW
Inverter Power 7.5KW 11KW
Work Area 650mm2 650mm2
Self Rotation 0-1250rmp/m 0-1250rmp/m
Revolution Speed 0-320rmp/m 0-320rmp/m
Discs 12 pcs 12 pcs
Water tank 30L 30L
Weight 310kg 310kg

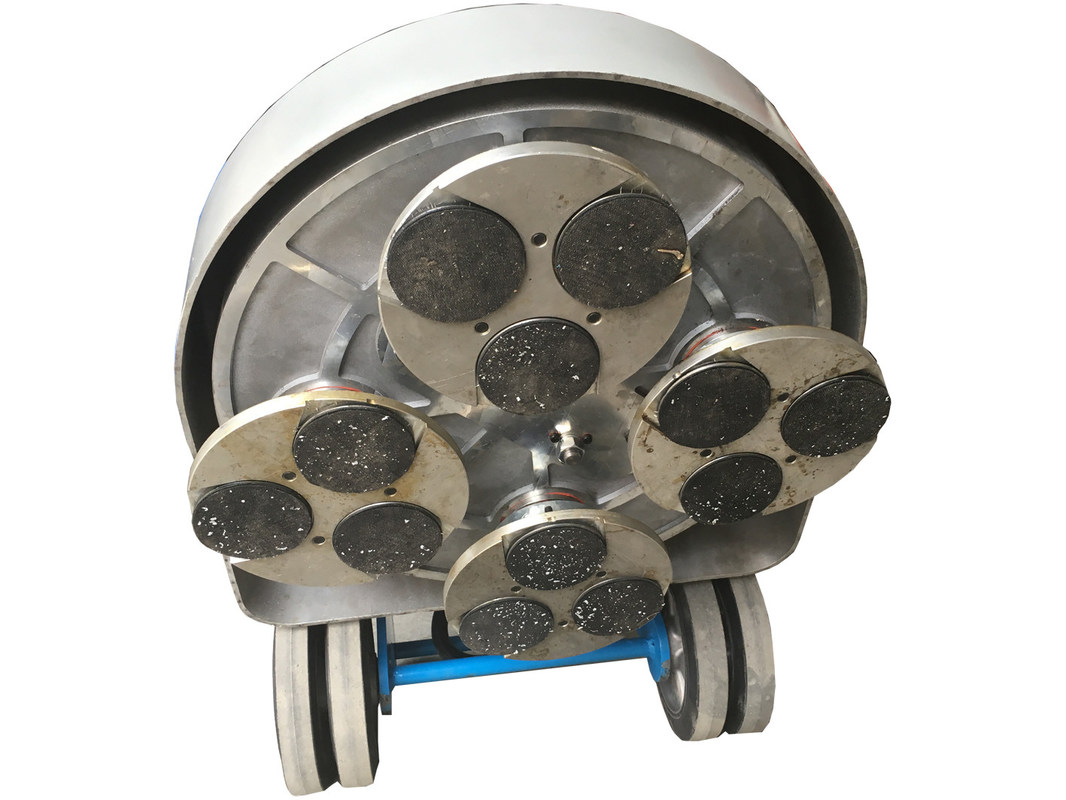

Detail picture:



Multifunction 12 Heads Concrete Floor Grinder 650mm Casting Mould Planetary System 0



Available abrasive:



  1. Diamond resin pads
  2. Diamond grinding shoes
  3. Metal diamond grinding discs

Instruction:

S-X12-650 Grinder Manual.pdf
