One Phase Concrete Floor Grinder In 220V / 50HZ / 60HZ With Vacuum Cleaner
Quick Detail:
Name | Concrete floor grinding machine | Application | Terrazzo, concrete floor, epoxy ground |
Type | MRK-360B | Function | Leveling, grinding |
Description:
Application:
For concrete and epoxy coating grinding, wipe off paint, old epoxy ground and zebra crossing etc...
Specification:
Type | MRK-360A | MRK-400A | MRK-360B | MRK-400B |
Specification(mm) | 900x400x1000 (Handle length:800) |
1100x430x1100 (Handle length:800) |
900x400x1000 (Handle length:800) |
1100x430x1100 (Handle length:800) |
Weight(kg) | 115kg | 140+30kg | 120kg | 145+30kg |
Work area | 350mm | 385mm | 350mm | 385mm |
Work speed | 800rpm | 780rpm | 0-1500rpm | 0-1500rpm |
Motor Type(Simens) | Entire sealed fan-shaped | Entire sealed fan-shaped |
Entire sealed fan-shaped | Entire sealed fan-shaped |
Motor Power | 3.0KW*4P/50HZ | 3.0KW*4P/50HZ | 3.0KW*4P/50HZ | 3.0KW*4P/50HZ |
Motor Voltage | 380V | 380V | 220V/380V | 220V/380V |
Motor Power cord | 12m(4mm2*4) | 12m(4mm2*4) | 12m(4mm2*4) | 12m(4mm2*4) |
Vacuum Output | 0.55KW/0.55KW | 0.55KW/0.55KW | 0.55KW/0.55KW | 0.55KW/0.55KW |
Vacuum Wind power | 2.2㎡/min | 2.2㎡/min | 2.2㎡/min | 2.2㎡/min |
Vacuum Wind pressure | 16.7Kpa | 16.7Kpa | 16.7Kpa | 16.7Kpa |
Vacuum Voltage | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
Capacity of dust collector |
20L | 20L | 20L | 20L |

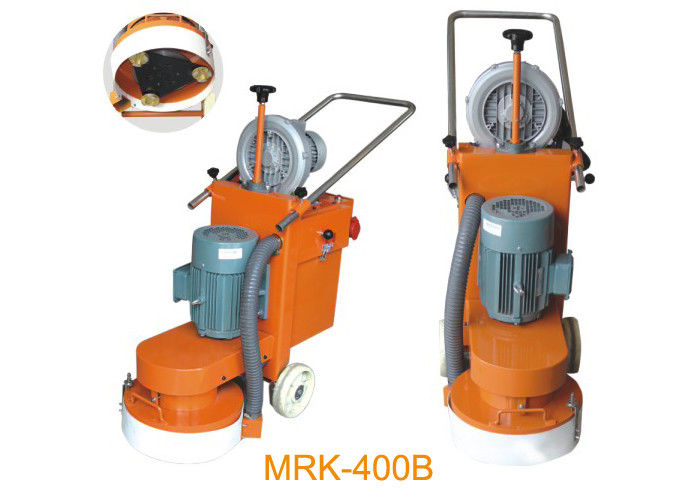

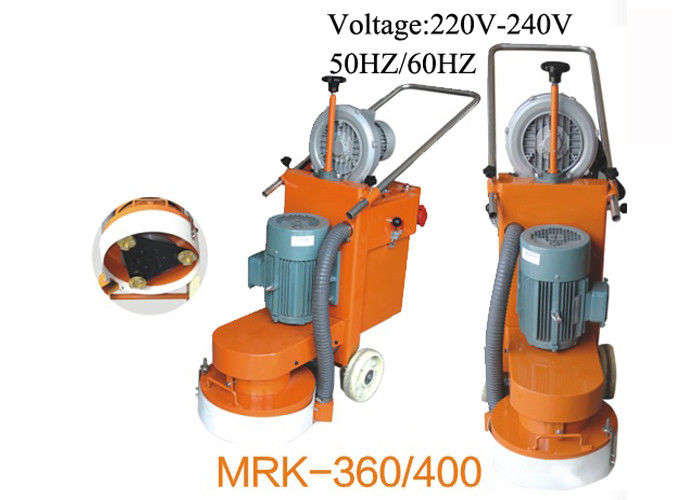

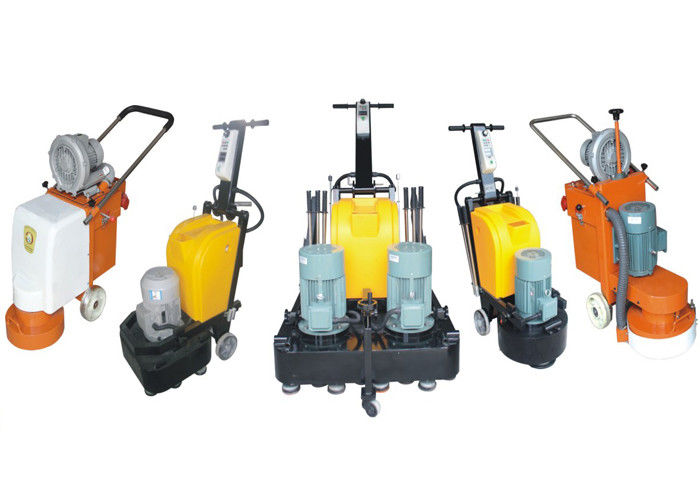

Detail picture:
Available abrasive:
1. Diamond resin pads
2. Sand paper
3. Metal diamond grinding discs
