Two Plates 380V Three Phase Terrazzo Concrete Grinding Machine

Two Plates 380V Three Phase Terrazzo Concrete Grinding Machine

Two Plates 380V Three Phase Terrazzo Concrete Grinding Machine
video
Two Plates 380V Three Phase Terrazzo Concrete Grinding Machine
Product Details:
Place of Origin: China
Brand Name: Merrock
Certification: CE
Model Number: MRK-V6-380B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 30
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 20
Contact Now
Detailed Product Description
Product Name: Two Grinding Plates Concrete Grinding Machine Manual Terrazzo Floor Grinder After-sales Service Provided: Video Technical Support, Online Support
Warranty: 1 Year Condition: New
Automatic Grade: Manual Voltage: 220V/240V 380V/440V
Power: 5.5HP/4KW Inverter: 4KW
Rotating Speed: 0-1500RPM Current: 16amps
High Light:

concrete floor polishing machine

,

concrete floor polisher



Two Grinding Plates 380V Three Phase Terrazzo Concrete Grinding Machine

MERROCK Profile.pdf



Quick Detail:



Name

Two Grinding Plate Concrete Grinding Machine 380V Terrazzo Floor Grinder

Application Marble, granite, terrazzo, concrete floor
Type MRK-V6-380B Function Leveling, polishing, grinding, renovating





Description:



1. Two Grinding Plate Concrete Grinding Machine 380V Terrazzo Floor Grinder designed for big industrial floor area grinding with high efficiency and competitive price
2. Beautiful and generous appearance design
3. Folding hande and integration control panel, to make operation easy and safe
4. Big power motor with frequency conversion, to meet Frequent and long time use requirements for industrial floor grinding
5. Automatic pressure adjustment control system, to meet the needs of different operation processes
6. Can be equipped with vacuum equipment, realization of dry and wet working mode
7. Knob-style water switch, water spray system from the center of pad holder, an effective solution to the diamond disc wear and
tear and marks generated by grinding, greatly improve work efficiency
8. Multifunctional pad holder can install all kinds of diamond tools, reduce your operation cost as much as possible
9. Scope: Grinding for concrete, granite and marble floor




Application:



For stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Video:




Model MRK-V6-220B MRK-V6-380B
Phase 1 3
Voltage 220V 380V
Power 5.5HP/4KW 5.5HP/4KW
Inverter 5.5HP/4KW 5.5HP/4KW
Speed 0-1500rpm
Work width 310*550mm
Heads 6 pieces
Grinding plate 2 pieces
Water tank 30L
NW(KG) 170+20
GW(KG) 230
Packing size(CM) 76x66x134cm





Detail picture:



Two Plates 380V Three Phase Terrazzo Concrete Grinding Machine 0

Two Plates 380V Three Phase Terrazzo Concrete Grinding Machine 1







Available abrasive:



Diamond resin pads



1. Wet polishing pad for wet grinding and polishing the marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry polishing the granite, stone, marble, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing the marble, granite, terrazzo and concrete floor.



Two Plates 380V Three Phase Terrazzo Concrete Grinding Machine 2Two Plates 380V Three Phase Terrazzo Concrete Grinding Machine 3Two Plates 380V Three Phase Terrazzo Concrete Grinding Machine 4







Diamond grinding shoes for concrete terrazzo and epoxy floor

Metal diamond grinding discs for concrete terrazzo and epoxy floor

Metal diamond grinding blades for concrete terrazzo and epoxy floor



Two Plates 380V Three Phase Terrazzo Concrete Grinding Machine 5

Solution for concrete floor:



1. Grinding blade J009 30#, 50#, 100# for leveling.

2. Wet polishing pad R-1 50#, 150#, 300#, 500# for grinding.

3. Dry polishing pad G-1 800#, 1500# for polishing.

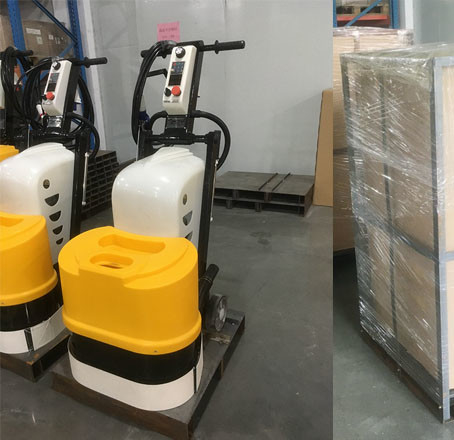

Packing:



Two Plates 380V Three Phase Terrazzo Concrete Grinding Machine 6



V6-V12 concrete grinder.pdf

What is Diamond Grinding?

Polished concrete is a craft that tends to be misunderstood. Often when people hear about polished concrete, they assume it is achieved through the application of a topical product or that it defines a cleaning process that makes the floor appear shiny. However, neither of these accurately describe the process of mechanically refined polished concrete. Polished concrete is a detailed, labor and skill-intensive process that requires highly specialized tooling and training to produce. One of the numerous tools required in this process is a grinder with diamond tooling.


Nowadays, most of the concrete grinding is performed by diamonds. This process is called as “diamond grinding”. Grinding concrete with diamond tooling is a mechanical process that renews worn or irregular concrete surfaces. It uses specialized tooling to produce a smoother surface and reduce concrete failures such as joint faults, warped slabs, and traffic wear. Due to the power needed to grind concrete, the diamond tools can quickly overheat during a wet grind process. Overheating is prevented by cooling the machine with water. However, this means a slurry is produced from the grinding and water excreted but the slurry is removed and disposed of. Dry grinding is also done with an air-cooled system. Both options can achieve the same desired result.

Tag: terrazzo floor grinding machine, concrete floor grinder
