4KW Single Phase 230V Granite Terrazzo Concrete Floor Grinder

4KW Single Phase 230V Granite Terrazzo Concrete Floor Grinder

4KW Single Phase 230V Granite Terrazzo Concrete Floor Grinder
video
4KW Single Phase 230V Granite Terrazzo Concrete Floor Grinder
Product Details:
Place of Origin: China
Brand Name: Merrock
Certification: CE
Model Number: V6-220B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1300-1500
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 30
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 20
Contact Now
Detailed Product Description
Voltage: 220V/240V 380V/440V Product Name: 4KW Single Phase Marble Grinding Machine 220V Granite Terrazzo Concrete Floor Grinder
Power: 5.5HP/4KW Rotating Speed: 0-1500RPM
Working Width: 310*550mm Color: Yellow/White
Inverter: 4KW Application: Concrete Terrazzo Marble, Concrete Floor Grinder, Grinding, Dry Concrete Floor Polishing
Water Tank: 30L Current: 16amps
High Light:

concrete floor polishing machine

,

concrete floor polisher



4KW Single Phase 230V Granite Terrazzo Concrete Floor Grinding Machine Grinder

MERROCK Profile.pdf



Quick Detail:



Name

4KW Single Phase Marble Grinding Machine 220V Granite Terrazzo Concrete Floor Grinder

Application Marble, granite, terrazzo, concrete floor
Type MRK-V6-220B Function Leveling, polishing, grinding, renovating





Description:



Multifunction professional ground grinding machine meets professional customers’ demand in promoting the grinding efficiency of large area industry ground, have great cost performance.





Feature:



1. Novelty appearance design, elegant appearance.
2. Foldable handle, integrated form central control panel design, convenient operation, on the safe side, accord with human engineering, handle is convenient to move.

3. High power (5.5 HP) variable-frequency motor meets long time using frequently demand in industry ground grinding.

4. Automatic pressure adjusting control system meets different construction demand.

5. It can equip with vacuum equipment to achieve dry and wet mode.

6.Whole stainless steel water tank, open the water by twisting the switch, water system in middle of grinding disc, it’s good for solving the second waste of the grinding pads and the grinding lineation when working, greatly improve the working efficiency.

7. Multifunction grinding discs can fix various grinding pads to reduce your construction cost.




Application:



For stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Video:



Model MRK-V6-220B MRK-V6-380B
Phase 1 3
Voltage 220V 380V
Power 5.5HP/4KW 5.5HP/4KW
Inverter 5.5HP/4KW 5.5HP/4KW
Speed 0-1500rpm
Work width 310*550mm
Heads 6 pieces
Grinding plate 2 pieces
Water tank 30L
NW(KG) 170+20KG
GW(KG) 230KG
Packing size(CM) 76x66x134cm

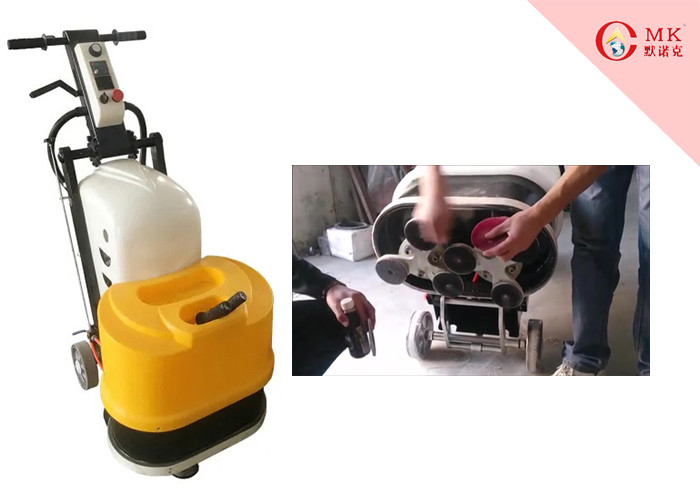

Detail picture:



4KW Single Phase 230V Granite Terrazzo Concrete Floor Grinder 0









Available abrasive:



Diamond resin pads



1. Wet polishing pad for wet grinding and polishing the marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for grinding and polishing the marble, granite, terrazzo and concrete floor.

3. Renovation pad for grinding and polishing the marble, granite, terrazzo and concrete floor.

4KW Single Phase 230V Granite Terrazzo Concrete Floor Grinder 14KW Single Phase 230V Granite Terrazzo Concrete Floor Grinder 24KW Single Phase 230V Granite Terrazzo Concrete Floor Grinder 3

Diamond grinding shoes for concrete terrazzo and epoxy floor etc...



Metal diamond grinding discs for concrete terrazzo and epoxy floor etc...

Metal diamond grinding blades for concrete terrazzo and epoxy floor etc...



4KW Single Phase 230V Granite Terrazzo Concrete Floor Grinder 44KW Single Phase 230V Granite Terrazzo Concrete Floor Grinder 5





Packing:



Carton with iron frame

Size: 76x66x134cm



4KW Single Phase 230V Granite Terrazzo Concrete Floor Grinder 6



V6-V12 concrete grinder.pdf

What is Diamond Grinding?

Polished concrete is a craft that tends to be misunderstood. Often when people hear about polished concrete, they assume it is achieved through the application of a topical product or that it defines a cleaning process that makes the floor appear shiny. However, neither of these accurately describe the process of mechanically refined polished concrete. Polished concrete is a detailed, labor and skill-intensive process that requires highly specialized tooling and training to produce. One of the numerous tools required in this process is a grinder with diamond tooling.


Nowadays, most of the concrete grinding is performed by diamonds. This process is called as “diamond grinding”. Grinding concrete with diamond tooling is a mechanical process that renews worn or irregular concrete surfaces. It uses specialized tooling to produce a smoother surface and reduce concrete failures such as joint faults, warped slabs, and traffic wear. Due to the power needed to grind concrete, the diamond tools can quickly overheat during a wet grind process. Overheating is prevented by cooling the machine with water. However, this means a slurry is produced from the grinding and water excreted but the slurry is removed and disposed of. Dry grinding is also done with an air-cooled system. Both options can achieve the same desired result.

Tag: marble floor polishing machineconcrete floor grinding machine
