1500Rpm V6 Marble Floor Grinding Machine 310x550mm One Phase

1500Rpm V6 Marble Floor Grinding Machine 310x550mm One Phase

  • High Light

    concrete floor polishing machine

    ,

    concrete floor polisher

    ,

    1500Rpm Floor Grinding Machine

  • Product Name
    310*550mm One Phase 1500 Rpm V6 Marble Floor Polishing Machine
  • Voltage
    220V/240V 380V/440V
  • Power(hp)
    5.5HP
  • Rotating Speed
    0-1500RPM
  • Weight
    170+20KG
  • Automatic Grade
    Manual
  • Working Width
    310*550mm
  • Water Tank
    30L
  • Function
    Stone, Terrazzo, Concrete Floor Grinding Polishing, Concrete, Marble
  • Packing Size (l*w*h)
    760*650*1320mm
  • Place of Origin
    China
  • Brand Name
    Merrock
  • Certification
    CE
  • Model Number
    MRK-V6-220B
  • Minimum Order Quantity
    1
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    30
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

1500Rpm V6 Marble Floor Grinding Machine 310x550mm One Phase



310*550mm One Phase 1500 Rpm V6 Marble Floor Grinding Machine

Quick Detail:


Name

310*550mm One Phase 1500 Rpm V6 Marble Floor Grinding Machine

Application Marble, granite, terrazzo, concrete floor
Type MRK-V6-220B Function Leveling, polishing, grinding, renovating





Description:



1. This 310*550mm One Phase 1500 Rpm V6 Marble Floor Grinding Machine, alterable frequency, alterable speed, folding handle and the height of handle is adjustable.

2. Grind, polish the crystallize granite, marble, terrazzo, quartzite and concrete floor etc.

3. Artistic design, aluminum alloy gear box, open model, low noise, light vibration.

4. Centralized control, convenient operation.

5. It can also grind granite, marble, new and existing concrete floor, wipe off soft and hard coatings etc.

6. With an external vacuum port.

7. Multifunctional grinding discs can be fixed various polishing pads to reduce your operation cost.

8. Each time fix 6 pieces pads or blades in same grit.

9. With belt driving is easy to maintain.






Application:



For quartzite marble granite terrazzo floor leveling, quartzite marble granite terrazzo floor polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...





Specification:MRK-V6 Grinder Manual.pdf

Model MRK-V6-220B MRK-V6-380B
Phase 1 3
Voltage 220V 380V
Power 5.5HP/4KW 5.5HP/4KW
Inverter 5.5HP/4KW 5.5HP/4KW
Speed 0-1500rpm
Work width 310*550mm
Heads 6 pieces
Grinding plate 2 pieces
Water tank 30L
NW(KG) 170+20
GW(KG) 230
Packing size(CM) 76x66x134cm



Detail picture:

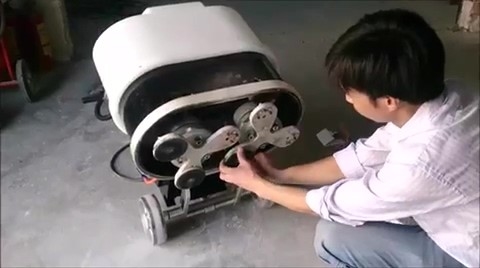

Single Phase Concrete Grinder 1500 rpm Marble Floor Grinding Machine Polisher
1500Rpm V6 Marble Floor Grinding Machine 310x550mm One Phase 0



Single Phase Concrete Grinder 1500 rpm Marble Floor Grinding Machine Polisher with vacuum port


1500Rpm V6 Marble Floor Grinding Machine 310x550mm One Phase 1


Available abrasive:

Diamond resin pads


1. Wet polishing pad for wet grinding and polishing marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing marble, granite, terrazzo and concrete floor.

3. Renovation pad for grinding and polishing marble, granite, terrazzo and concrete floor.




Diamond grinding shoes for concrete terrazzo and epoxy floor.
Metal diamond grinding discs for concrete terrazzo and epoxy floor.
Metal diamond grinding blades for concrete terrazzo and epoxy floor.


Packing:


Carton with iron frame

Packing size: 76*65*132cm


1500Rpm V6 Marble Floor Grinding Machine 310x550mm One Phase 2



What is Diamond Grinding?

Polished concrete is a craft that tends to be misunderstood. Often when people hear about polished concrete, they assume it is achieved through the application of a topical product or that it defines a cleaning process that makes the floor appear shiny. However, neither of these accurately describe the process of mechanically refined polished concrete. Polished concrete is a detailed, labor and skill-intensive process that requires highly specialized tooling and training to produce. One of the numerous tools required in this process is a grinder with diamond tooling.


Nowadays, most of the concrete grinding is performed by diamonds. This process is called as “diamond grinding”. Grinding concrete with diamond tooling is a mechanical process that renews worn or irregular concrete surfaces. It uses specialized tooling to produce a smoother surface and reduce concrete failures such as joint faults, warped slabs, and traffic wear. Due to the power needed to grind concrete, the diamond tools can quickly overheat during a wet grind process. Overheating is prevented by cooling the machine with water. However, this means a slurry is produced from the grinding and water excreted but the slurry is removed and disposed of. Dry grinding is also done with an air-cooled system. Both options can achieve the same desired result.
