5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground

5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground

  • High Light

    concrete floor polishing machine

    ,

    concrete floor polisher

    ,

    Parking Ground Concrete Floor Grinder

  • Warranty
    1 Year
  • After-sales Service Provided
    Video Technical Support, Online Support
  • Product Name
    5.5HP 380V 3 Phase Concrete Grinder For Parking Ground Warehouse Floor Grinding
  • Voltage
    220V/240V 380V/440V
  • Motor
    4KW
  • Rotating Speed
    0-1500RPM
  • Working Width
    310*550mm
  • Inverter
    4KW
  • Water Tank
    30L
  • Application
    Concrete Terrazzo Marble, Concrecte Floor Grinder, Grinding, Dry Concrete Floor Polishing
  • Place of Origin
    China
  • Brand Name
    Merrock
  • Certification
    CE
  • Model Number
    MRK-V6-380B
  • Minimum Order Quantity
    1
  • Price
    USD1300-1500/PC
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    30
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground



5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground



Quick Detail:



Name

5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground

Application Marble, granite, terrazzo, concrete floor
Type MRK-V6-380B Function Leveling, polishing, grinding, renovating





Description:



5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground designed for big industrial floor area grinding with high efficiency and competitive price.





Function and feature:


1. Application and function: Stone leveling, stone grinding, concrete grinding, concrete polishing, epoxy grinding, high-speed railway beam surface grinding, also apply to remove the old coat etc., very high efficiency, best effect.

2. Rotational molding water tank.
3. Drive by gear and belt.
4. A large cross chassis is to improve the work efficiency, speed increase 180rpm/min, improve the working efficiency and make better construction effect.
5. This MRK-V6 is one of the most efficient of the 6 heads stone grinding machine currently.

6. With an external vacuum port.

7. Multifunctional grinding plate can be fixed various polishing pads and grinding blades to reduce your operation cost.

8. 5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground can use for wet and dry.



Specification:

Model MRK-V6-220B MRK-V6-380B
Phase 1 3
Voltage(V) 220V 380V
Power(KW) 5.5HP/4KW 5.5HP/4KW
Inverter(HP) 5.5HP/4KW 5.5HP/4KW
Grinding Speed 0-1500rpm
Working width 310*550mm
Grinding Heads 6 pieces
Grinding plate 2 pieces
Water tank 30L
NW(KG) 170+20
GW(KG) 230
Packing size(CM) 76x66x134cm





Detail picture:

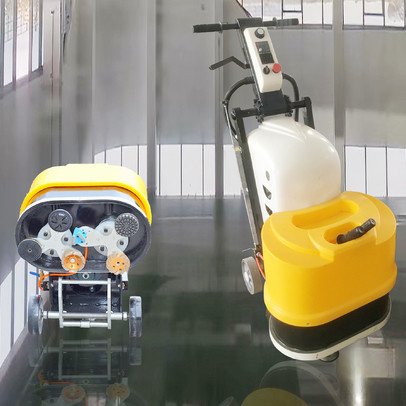

5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground 0

5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground 1



Machine with 3 pieces belt

5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground 2



Gearbox



5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground 3





Available abrasive:



1.Wet polishing pad is for wet grinding and polishing the marble, granite, terrazzo and concrete floor etc...

2. Dry polishing pad is for dry grinding and polishing the marble, granite, terrazzo and concrete floor etc...

3. Renovation pad is for wet grinding and polishing the marble, granite, terrazzo and concrete floor etc...



Diamond grinding shoes for terrazzo concrete and epoxy floor.

Metallic diamond grinding discs for terrazzo concrete and epoxy floor.

Metallic diamond grinding blades for terrazzo concrete and epoxy floor.







Packing:



Carton with iron frame

Packing size: 76*65*132cm



MRK-V6 Grinder Manual.pdf

Tag: marble granite floor polishing machine, terrazzo concrete floor grinding machine



What is Diamond Grinding?

Polished concrete is a craft that tends to be misunderstood. Often when people hear about polished concrete, they assume it is achieved through the application of a topical product or that it defines a cleaning process that makes the floor appear shiny. However, neither of these accurately describe the process of mechanically refined polished concrete. Polished concrete is a detailed, labor and skill-intensive process that requires highly specialized tooling and training to produce. One of the numerous tools required in this process is a grinder with diamond tooling.


Nowadays, most of the concrete grinding is performed by diamonds. This process is called as “diamond grinding”. Grinding concrete with diamond tooling is a mechanical process that renews worn or irregular concrete surfaces. It uses specialized tooling to produce a smoother surface and reduce concrete failures such as joint faults, warped slabs, and traffic wear. Due to the power needed to grind concrete, the diamond tools can quickly overheat during a wet grind process. Overheating is prevented by cooling the machine with water. However, this means a slurry is produced from the grinding and water excreted but the slurry is removed and disposed of. Dry grinding is also done with an air-cooled system. Both options can achieve the same desired result.
