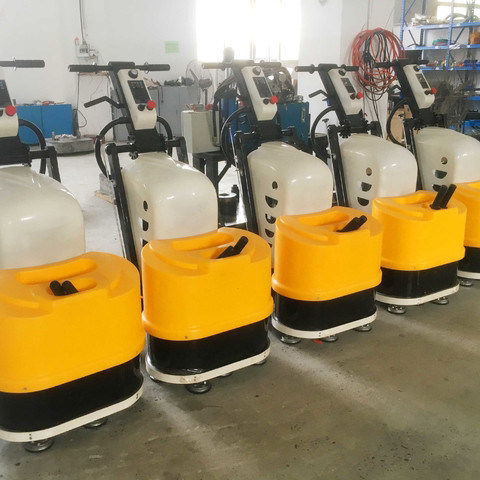

240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse

240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse

  • High Light

    concrete floor polishing machine

    ,

    concrete floor polisher

    ,

    Warehouse Terrazzo Floor Polisher

  • Product Name
    4KW Single Phase Granite Grinder 220V Marble Terrazzo Concrete Floor Grinder
  • Voltage
    220V/240V 380V/440V
  • Power
    5.5HP/4KW
  • Working Width
    310*550mm
  • Inverter
    4KW
  • Rotating Speed
    0-1500RPM
  • Current
    16amps
  • Water Tank
    30L
  • Application
    Concrete Terrazzo Marble Quartzite Floor Grinder,Grinding,Dry Concrete Floor Polishing
  • Packing Size (l*w*h)
    760*650*1320mm
  • Place of Origin
    China
  • Brand Name
    Merrock
  • Certification
    CE
  • Model Number
    MRK-V6-220B
  • Minimum Order Quantity
    1
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    30
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse



240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse



Quick Detail:



Name

240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse

Application Marble, granite, terrazzo, concrete floor
Type MRK-V6-220B Function Leveling, polishing, grinding, renovating





Description:



1. Application and function: Stone leveling, stone grinding, concrete grinding, concrete polishing, epoxy grinding, high-speed railway beam surface grinding, also apply to remove the old coat etc., very high efficiency, best effect.

2. Rotational molding water tank.

3. Drive by gear and belt.

4. A large cross chassis is to improve the work efficiency, speed increase 180rpm/min, improve the working efficiency and make better construction effect.

5. This MRK-V6 is one of the most efficient of the 6 heads stone grinding machine currently.

6. With an external vacuum port.




Application:



For stone marble granite terrazzo floor leveling, stone marble granite terrazzo floor polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Specification:

Model MRK-V6-220B MRK-V6-380B
Phase 1 3
Voltage 220V 380V
Power 5.5HP/4KW 5.5HP/4KW
Inverter 5.5HP/4KW 5.5HP/4KW
Speed 0-1500rpm
Working width 310*550mm
Grinding Heads 6 pieces
Grinding plate 2 pieces
Water tank 30L
NW(KG) 170+20
GW(KG) 230
Packing size(CM) 76x66x134cm





Detail picture:



4KW Single Phase 240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse

240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse 0





Machine with vacuum interface



240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse 1





Available abrasive:



Diamond resin pads



1. Wet polising pads are for wet grinding and polishing the marble, granite, terrazzo and concrete floor.

2. Dry polishing pads are for dry grinding and polishing the marble, granite, terrazzo and concrete floor.

3. Renavation pads are for wet grinding and polishing the marble, granite, terrazzo and concrete floor.

240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse 2240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse 3240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse 4





Diamond grinding shoes for concrete, terrazzo and epoxy floor.

Metal diamond grinding discs for concrete, terrazzo and epoxy floor.

Metal diamond grinding blades for concrete, terrazzo and epoxy floor.



240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse 5240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse 6240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse 7



Solution for terrazzo:



1. Grinding blade J009 50#, 100# for grinding.

2. Wet polishing pad R-1 50#, 150#, 300#, 500# for grindnig.

3. Dry polishing pad G-1 800#, 1500# for polishing.





Packing:



Carton with iron frame

Packing size: 76*65*132cm



240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse 8



MRK-V6 Grinder Manual.pdf

What is Diamond Grinding?

Polished concrete is a craft that tends to be misunderstood. Often when people hear about polished concrete, they assume it is achieved through the application of a topical product or that it defines a cleaning process that makes the floor appear shiny. However, neither of these accurately describe the process of mechanically refined polished concrete. Polished concrete is a detailed, labor and skill-intensive process that requires highly specialized tooling and training to produce. One of the numerous tools required in this process is a grinder with diamond tooling.


Nowadays, most of the concrete grinding is performed by diamonds. This process is called as “diamond grinding”. Grinding concrete with diamond tooling is a mechanical process that renews worn or irregular concrete surfaces. It uses specialized tooling to produce a smoother surface and reduce concrete failures such as joint faults, warped slabs, and traffic wear. Due to the power needed to grind concrete, the diamond tools can quickly overheat during a wet grind process. Overheating is prevented by cooling the machine with water. However, this means a slurry is produced from the grinding and water excreted but the slurry is removed and disposed of. Dry grinding is also done with an air-cooled system. Both options can achieve the same desired result.



Tag: terrazzo floor polishing machine, marble floor grinder
