6 Heads 1 Phase 230V Terrazzo Concrete Floor Polishing Machine

6 Heads 1 Phase 230V Terrazzo Concrete Floor Polishing Machine

6 Heads 1 Phase 230V Terrazzo Concrete Floor Polishing Machine
video
6 Heads 1 Phase 230V Terrazzo Concrete Floor Polishing Machine
Product Details:
Place of Origin: China
Brand Name: Merrock
Certification: CE
Model Number: MRK-V6-220B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 10-30 dyas
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 20
Contact Now
Detailed Product Description
Name: 1 Phase Terrazzo Concrete Grinder Polisher Voltage: 220V-240V
Power(W): 5.5HP/4000W Inverter(KW): 4KW
Working Width: 310*550mm Speed: 0-1500 R/min
Additional Weight: 20KG GW: 230KG
Water Tank: 30L Application: Concrete Terrazzo Marble, Concrete Floor Grinder, Grinding, Dry Concrete Floor Polishing
High Light:

concrete floor polishing machine

,

concrete floor polisher



V6 230V Terrazzo Concrete Floor Polishing Machine In 1 Phase

MERROCK Profile.pdf



Quick Detail:



Name

V6 230V Terrazzo Concrete Floor Polishing Machine In 1 Phase

Application Marble, granite, terrazzo, concrete floor
Type MRK-V6-220B Function Leveling, polishing, grinding, renovating





Description:



1. V6 230V Terrazzo Concrete Floor Polishing Machine In 1 Phase designed for big industrial floor area grinding with high efficiency and competitive price
2. Beautiful and generous appearance design
3. Folding hande and integration control panel, to make operation easy and safe
4. Big power motor with frequency conversion, to meet Frequent and long time use requirements for industrial floor grinding
5. Automatic pressure adjustment control system, to meet the needs of different operation processes
6. With vacuum interface can be equipped with vacuum equipment, realization of dry and wet working mode
7. Knob-style water switch, water spray system from the center of pad holder, an effective solution to the diamond disc wear and
tear and marks generated by grinding, greatly improve work efficiency
8. Multifunctional pad holder can install all kinds of diamond tools, reduce your operation cost as much as possible
9. Scope: Grinding for concrete, granite and marble floor




Application:



For stone marble granite terrazzo floor leveling, stone quartzite floor polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...




Model MRK-V6-220B MRK-V6-380B
Phase 1 3
Voltage 220V 380V
Power 5.5HP/4KW 5.5HP/4KW
Inverter 5.5HP/4KW 5.5HP/4KW
Speed 0-1500rpm
Work width 310*550mm
Heads 6 pieces
Grinding plate 2 pieces
Water tank 30L
NW(KG) 170+20
GW(KG) 230
Packing size(CM) 76x66x134cm





Detail picture:

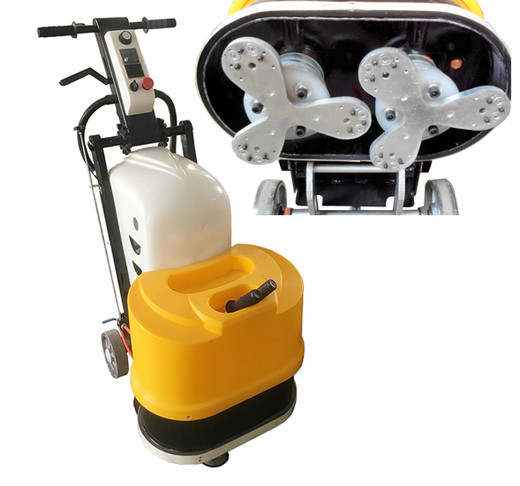

6 Heads 1 Phase 230V Terrazzo Concrete Floor Polishing Machine 0





Option plug:



6 Heads 1 Phase 230V Terrazzo Concrete Floor Polishing Machine 1







Available abrasive:



Diamond resin pads



1. Soft diamond wet polishing pad for marble, granite, terrazzo and concrete floor grinding and polishing in wet.

2. Soft diamond dry polishing pad for marble, granite, terrazzo and concrete floor grinding and polishing in dry.

3. Diamond renovation pad for marble, granite, terrazzo and concrete floor grinding and polishing in wet






Tag: marble floor polishing machine, concrete floor grinding machine

What is Diamond Grinding?

Polished concrete is a craft that tends to be misunderstood. Often when people hear about polished concrete, they assume it is achieved through the application of a topical product or that it defines a cleaning process that makes the floor appear shiny. However, neither of these accurately describe the process of mechanically refined polished concrete. Polished concrete is a detailed, labor and skill-intensive process that requires highly specialized tooling and training to produce. One of the numerous tools required in this process is a grinder with diamond tooling.


Nowadays, most of the concrete grinding is performed by diamonds. This process is called as “diamond grinding”. Grinding concrete with diamond tooling is a mechanical process that renews worn or irregular concrete surfaces. It uses specialized tooling to produce a smoother surface and reduce concrete failures such as joint faults, warped slabs, and traffic wear. Due to the power needed to grind concrete, the diamond tools can quickly overheat during a wet grind process. Overheating is prevented by cooling the machine with water. However, this means a slurry is produced from the grinding and water excreted but the slurry is removed and disposed of. Dry grinding is also done with an air-cooled system. Both options can achieve the same desired result.
