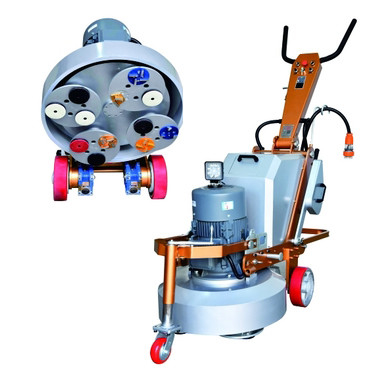

Auto Walk Concrete Floor Polisher Fast Speed Self Propelled Planetary System

Auto Walk Concrete Floor Polisher Fast Speed Self Propelled Planetary System

Auto Walk Concrete Floor Polisher Fast Speed Self Propelled Planetary System
video
Auto Walk Concrete Floor Polisher Fast Speed Self Propelled Planetary System
Product Details:
Place of Origin: Made in China
Brand Name: Merrock
Certification: CE, ISO9001,etc
Model Number: Z12-X-750
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD5500-6500
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 5-7 work days, OEM 20-25 work days
Payment Terms: TT , West Union
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Feature: Planetary System Color: OEM
Voltage: 380-440V Phase: 3
Type: S-X12-750 Work Width: 750mm
Plate: 275mm Automation: Auto Walk
High Light:

concrete floor polishing machine

,

concrete floor polisher

 MERROCK Profile.pdf

Terrazzo / Concrete Floor Polisher High Speed Self Propelled Planetary System

Quick Detail:


Name 12 heads floor polishing machine Application Marble, granite, terrazzo, concrete floor
Type Z12-X-750 Function Leveling, polishing, grinding, renovating


Description:

  1. 750 mm large work areas improve the work efficiency.
  2. Separated body make it easy for carrying.
  3. With multifunction plate include magnetic discs and Velcro discs meet different clients’ demand.
  4. Four plates, each fix 3 pieces small discs, total 12 pieces small discs one machine, each time need fix 12 pieces polishing pads.
  5. Handle is adjustable, is easy to control.
  6. With inverter could adjust the speed from 0 to 1500 rmp.
  7. Use good quality bearing.

Specification:


Type S-X12-750
Power 11KW
Voltage 380V-440V
Inverter 15KW
Speed 0-1500 rpm
Grinding discs 12pcs
Work width 750mm
Weight 490kg
Water tank 30L


Planetary Grinder Operation instruction:

  1. Fix the grinding disc, please put the handle in horizontal position, press the handle down by power to make the bottom disc tilting, and the grinding disc turn up, and stick the grinding pads on.
  2. Lay the machine back to the floor slowly to let the grinding pads reach the floor. (Please lay lightly).
  3. Put the add weight down to the back of the machine, wear the dustband.
  4. Fix the power supply wire. (Safety operation)
  5. Hold the machine handle, pull out the bolt, then pull and push the handle adjuster bar to adjust the handle in a proper position for operation, fix the handle by the bolt at last.
  6. Turn on the water switch when need water, if you would like dry grinding, please connect the outside dust collect with dust vacuum cleaner.
  7. Turn on the power supply switch and the machine begin to work.
  8. Stop the machine to change the grinding pads.
  9. Keep the speed above 1000rpm during operation.
Operation Safety:
  1. While operation, to keep safe must wear safety helmet and safety shoes, in addition, use mask and earplug according to the operation condition.
  2. Non-against exploding construction, so absolutely do not put flammable substances of petrol, thinner and gas etc nearby.
  3. Regarding to the noise, please comply with relative rules in local,do not give trouble to the surroundings.
  4. Absolutely do not touch the motor during operation, otherwise it's easy to scald; also parts of the grinding heads will be too hot to touch.
  5. It had better use our grinding assessories or the appointed products made by our company such as grinding pads , if use other products, it perhaps will injure operator's body. Therefore the incident does not belong to the scope of product quality if it happens during use other company's accessories .
  6. If machine runs abnormally , and un-usual condition during using the machine, immediately stop the operation, examine and repair it after confirming the safety.

Forbidden operation condition:

Auto Walk Concrete Floor Polisher Fast Speed Self Propelled Planetary System 0
Available abrasive:

  1. Diamond resin pads
  2. Diamond grinding shoes
  3. Metal diamond grinding discs

Auto Walk Concrete Floor Polisher Fast Speed Self Propelled Planetary System 1

Auto Walk Concrete Floor Polisher Fast Speed Self Propelled Planetary System 2
Z-X12-750 Auto-Walk Grinder Manual.pdf



What is Diamond Grinding?

Polished concrete is a craft that tends to be misunderstood. Often when people hear about polished concrete, they assume it is achieved through the application of a topical product or that it defines a cleaning process that makes the floor appear shiny. However, neither of these accurately describe the process of mechanically refined polished concrete. Polished concrete is a detailed, labor and skill-intensive process that requires highly specialized tooling and training to produce. One of the numerous tools required in this process is a grinder with diamond tooling.


Nowadays, most of the concrete grinding is performed by diamonds. This process is called as “diamond grinding”. Grinding concrete with diamond tooling is a mechanical process that renews worn or irregular concrete surfaces. It uses specialized tooling to produce a smoother surface and reduce concrete failures such as joint faults, warped slabs, and traffic wear. Due to the power needed to grind concrete, the diamond tools can quickly overheat during a wet grind process. Overheating is prevented by cooling the machine with water. However, this means a slurry is produced from the grinding and water excreted but the slurry is removed and disposed of. Dry grinding is also done with an air-cooled system. Both options can achieve the same desired result.
