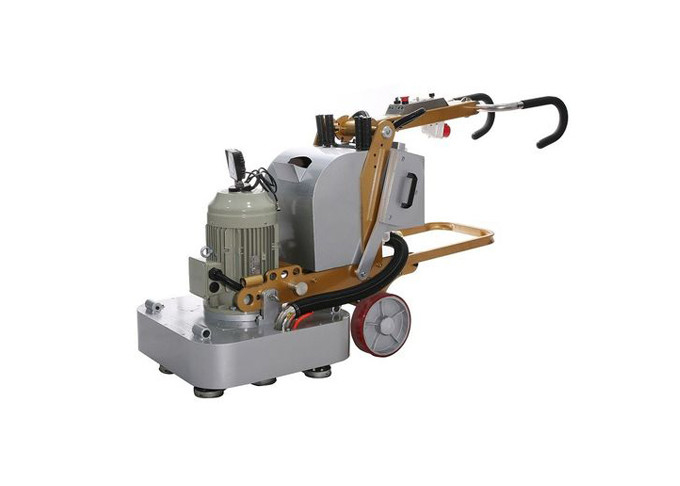

12 Heads Marble Floor Polishing Machine 15KW Terrazzo Grinder With Dust Port
Item | Data |
Model | MRK-S12-750 |
Voltage | 380V |
Motor | 15KW |
Inverter | 15KW |
Speed | 0-1500rpm |
Work width | 750*750mm |
Water tank | 30L |
Grinding heads | 12pcs |
Grinding disc | 4pcs |
Weight | 510kgs |
l Aluminum casting gear box, high quality with good apperance
l Each gear box has an individual series number
l Global well-known brands motors and inverters
l Stainless steel water tank
l External vacumm port
l Components through precision lathe processing
l With emergency stop button and reverse button etc on panel
Founded in 2007, Dongguan Merrock Industry Co., Ltd specializes in researching&developing, production and export of all kinds of floor grinder machines, abrasives and diamond tooling. We also produce stone&concrete chemicals for the construction industry.
Merrock has now been developed into a leading company in China serving the global market. We are renowned for the high quality and reliability of our products. We choose superior spare parts for our equipment to make sure they run smoothly and durably.
We also provide OEM/ODM service to satisfy your needs. At present, Merrock has been spread all around the world, and has earned a great reputation for our products.
As the dust from hard concrete is soft and unabrasive, the metal matrix that the segment is made of needs to be 'soft bond' and easily eroded to expose the diamonds. Often having a coarser grit can be beneficial because it may produce coarser dust to help erode the matrix.
In addition, reducing the contact area with fewer segments makes a difference. This also has the effect of increasing the weight per square inch on the surface so that the diamond grit will occasionally crack a little bit off the peak to create a fresh sharp peak and start grinding again.
Things need to noted when grinding hard concrete
1. Use diamond tooling with a soft bond or less segments to grind. And increase the weight on the diamond tooling.
2. Do not use hard bond diamond tooling on hard concrete since they will almost certainly wear out incredibly fast.
3. Turn down the vacuum so there is plenty of dust under the machine. This will help the diamonds to expose. Careful addition of sand may also help. Don't overdo sand or it could cause premature wear.
4. Inspect your diamond tooling when grinding. If there is hardly any diamond exposed out of the matrix, and/or the diamond tooling is getting hot, stop and change to a softer bond or less segments.
Tips for grinding hard concrete
When the concrete is hard, often wetting it before grinding helps to expose the diamonds a little more. And grinding will be more productive. You can also try spreading a small amount of sand on the floor and lightly wetting it to help further break down the bond of the diamonds.
