240V Terrazzo / Concrete Floor Grinder 0 - 1500rpm For Warehouse

240V Terrazzo / Concrete Floor Grinder 0 - 1500rpm For Warehouse

240V Terrazzo / Concrete Floor Grinder 0 - 1500rpm For Warehouse
video
240V Terrazzo / Concrete Floor Grinder 0 - 1500rpm For Warehouse
Product Details:
Place of Origin: China
Brand Name: Merrock
Certification: CE
Model Number: MRK-V6-220B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 30
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 20
Contact Now
Detailed Product Description
Product Name: 4KW Single Phase Granite Grinder 220V Marble Terrazzo Concrete Floor Grinder Voltage: 220V/240V 380V/440V
Power: 5.5HP/4KW Working Width: 310*550mm
Inverter: 4KW Rotating Speed: 0-1500RPM
Current: 16amps Water Tank: 30L
Application: Concrete Terrazzo Marble Quartzite Floor Grinder,Grinding,Dry Concrete Floor Polishing Packing Size (l*w*h): 760*650*1320mm
High Light:

240V Concrete Floor Grinder

,

Concrete Floor Grinder 1500rpm For Warehouse

,

240V Terrazzo Floor Grinder

240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse



MERROCK Profile.pdf

Quick Detail:



Name

240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse

Application Marble, granite, terrazzo, concrete floor
Type MRK-V6-220B Function Leveling, polishing, grinding, renovating





Description:



1. Application and function: Stone leveling, stone grinding, concrete grinding, concrete polishing, epoxy grinding, high-speed railway beam surface grinding, also apply to remove the old coat etc., very high efficiency, best effect.

2. Rotational molding water tank.

3. Drive by gear and belt.

4. A large cross chassis is to improve the work efficiency, speed increase 180rpm/min, improve the working efficiency and make better construction effect.

5. This MRK-V6 is one of the most efficient of the 6 heads stone grinding machine currently.

6. With an external vacuum port.




Application:



For stone marble granite terrazzo floor leveling, stone marble granite terrazzo floor polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Video:




Model MRK-V6-220B MRK-V6-380B
Phase 1 3
Voltage 220V 380V
Power 5.5HP/4KW 5.5HP/4KW
Inverter 5.5HP/4KW 5.5HP/4KW
Speed 0-1500rpm
Working width 310*550mm
Grinding Heads 6 pieces
Grinding plate 2 pieces
Water tank 30L
NW(KG) 170+20
GW(KG) 230
Packing size(CM) 76x66x134cm

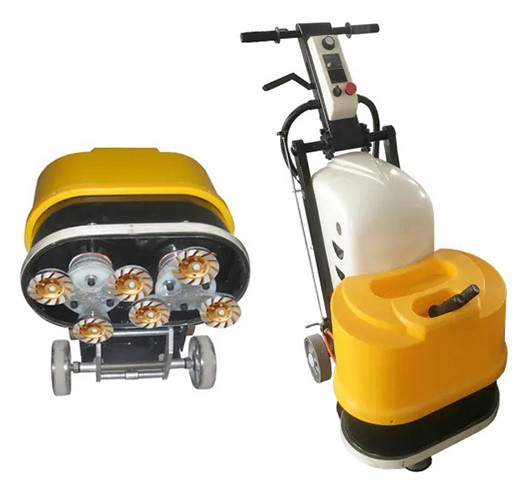

Detail picture:



4KW Single Phase 240V Granite Marble Terrazzo Concrete Floor Grinder For Warehouse

240V Terrazzo / Concrete Floor Grinder 0 - 1500rpm For Warehouse 0





Machine with vacuum interface



240V Terrazzo / Concrete Floor Grinder 0 - 1500rpm For Warehouse 1





Available abrasive:



Diamond resin pads



1. Wet polising pads are for wet grinding and polishing the marble, granite, terrazzo and concrete floor.

2. Dry polishing pads are for dry grinding and polishing the marble, granite, terrazzo and concrete floor.

3. Renavation pads are for wet grinding and polishing the marble, granite, terrazzo and concrete floor.

240V Terrazzo / Concrete Floor Grinder 0 - 1500rpm For Warehouse 2240V Terrazzo / Concrete Floor Grinder 0 - 1500rpm For Warehouse 3240V Terrazzo / Concrete Floor Grinder 0 - 1500rpm For Warehouse 4





Diamond grinding shoes for concrete, terrazzo and epoxy floor.

Metal diamond grinding discs for concrete, terrazzo and epoxy floor.

Metal diamond grinding blades for concrete, terrazzo and epoxy floor.



240V Terrazzo / Concrete Floor Grinder 0 - 1500rpm For Warehouse 5240V Terrazzo / Concrete Floor Grinder 0 - 1500rpm For Warehouse 6240V Terrazzo / Concrete Floor Grinder 0 - 1500rpm For Warehouse 7



Solution for terrazzo:



1. Grinding blade J009 50#, 100# for grinding.

2. Wet polishing pad R-1 50#, 150#, 300#, 500# for grindnig.

3. Dry polishing pad G-1 800#, 1500# for polishing.





Packing:



Carton with iron frame

Packing size: 76*65*132cm



240V Terrazzo / Concrete Floor Grinder 0 - 1500rpm For Warehouse 8



V6-V12 concrete grinder.pdf



Tag: terrazzo floor polishing machine, marble floor grinder



The Characteristics of Diamond Polishing Pads

The diamond polishing pad is a flexible processing tool made of diamond as abrasive and combined with composite materials. The back is glued with Velcro, which is stuck on the joint of the grinder for grinding and polishing. It is used for grinding stone, ceramics, glass, and floor tiles, etc. And it can also be used for processing, repair and renovation of marble, concrete, terrazzo, artificial stone, glazed tiles, and vitrified tiles.

The diamond polishing pad has the advantages of strong grinding force, durability, good flexibility and good gloss. It is an ideal stone polishing tool. The processing process is divided into coarse grinding, fine grinding and polishing.


The characteristics of diamond polishing pads

Made of special material

It is a flexible material made of diamond as abrasive, combined with composite materials and processed. Therefore, after it is made, due to the particularity of the material, it has very strong performance and characteristics. so that it can be used to complete the task in many field.

Wide range of applications

It is widely used in all aspects of the construction industry. At present, it is mainly used for stone polishing, various floor treatment, etc, but also for processing marble, terrazzo, cement pavement, countertops, etc. The scope of application getting wider and wider, and the effect is very obvious.

Good performance

Due to the special materials, it has the advantages of strong grinding force, good durability, good softness, bright clarity, strong gloss, etc. Relying on its own good performance, it has become an ideal stone grinding tools used in all areas of society.

Good using effect

After polishing with diamond polishing pads, it can be und that the gloss will be significantly improved after the whole process is done, and the surface is very smooth.
