5.5HP Single Phase 220V Marble / Concrete Grinding Machine

5.5HP Single Phase 220V Marble / Concrete Grinding Machine

  • High Light

    Single Phase 220V Concrete Grinding Machine

    ,

    5.5HP Single Phase Concrete Grinding Machine

    ,

    220V Marble Grinding Machine

  • Product Name
    5.5HP Single Phase Concrete Grinding Machine 220V Granite Terrazzo Floor Grinder
  • Automatic Grade
    Manual
  • Inverter
    4KW
  • Motor
    4KW
  • Working Width
    310*550mm
  • Rotating Speed
    0-1500RPM
  • Water Tank
    30L
  • Function
    Concrete Terrazzo Marble, Concrete Floor Grinder,Grinding,Dry Concrete Floor Polishing
  • Weight
    170kg+20KG
  • Packing Size (l*w*h)
    760*650*1320mm
  • Place of Origin
    China
  • Brand Name
    Merrock
  • Certification
    CE
  • Model Number
    MRK-V6-220B
  • Minimum Order Quantity
    1
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    30
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

5.5HP Single Phase 220V Marble / Concrete Grinding Machine

5.5HP Single Phase 220V Stone Marble Concrete Grinding Machine



MERROCK Profile.pdf





Description:



1. 5.5HP Single Phase 220V Stone Marble Concrete Grinding Machine designed for big industrial floor area grinding with high efficiency and competitive price
2. Beautiful and generous appearance design
3. Folding hande and integration control panel, to make operation easy and safe
4. Big power motor with frequency conversion, to meet Frequent and long time use requirements for industrial floor grinding
5. Automatic pressure adjustment control system, to meet the needs of different operation processes
6. Can be equipped with vacuum equipment, realization of dry and wet working mode
7. Knob-style water switch, water spray system from the center of pad holder, an effective solution to the diamond disc wear and
tear and marks generated by grinding, greatly improve work efficiency
8. Multifunctional pad holder can install all kinds of diamond tools, reduce your operation cost as much as possible
9. Scope: Grinding for concrete, granite and marble floor




Application:



For stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Quick Detail:



Name 5.5HP Single Phase Concrete Grinding Machine 220V Granite Terrazzo Floor Grinder Application Marble, granite, terrazzo, concrete floor
Type MRK-V6-220B Function Leveling, polishing, grinding, renovating

Vedio:

https://merrock.wixsite.com/floorgrinder/stone-floor-polishing-machine-mrk-v6


Specification: V6-V12 concrete grinder.pdf

Model MRK-V6-220B MRK-V6-380B
Phase 1 3
Voltage 220V 380V
Power 5.5HP/4KW 5.5HP/4KW
Inverter 5.5HP/4KW 5.5HP/4KW
Speed 0-1500rpm
Work width 310*550mm
Heads 6 pieces
Grinding plate 2 pieces
Water tank 30L
NW(KG) 170+20
GW(KG) 230
Packing size(CM) 76x66x134cm

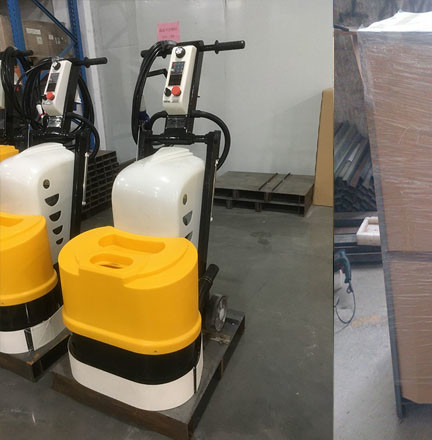

Detail picture:



5.5HP Single Phase 220V Marble / Concrete Grinding Machine 0

5.5HP Single Phase 220V Marble / Concrete Grinding Machine 1





Available abrasive:



Diamond resin pads



1. Wet polishing pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.

5.5HP Single Phase 220V Marble / Concrete Grinding Machine 2



Diamond grinding shoes J007, J007B for concrete terrazzo and epoxy floor

Metal diamond grinding discs for concrete terrazzo and epoxy floor

Metal diamond grinding blades for concrete terrazzo and epoxy floor

5.5HP Single Phase 220V Marble / Concrete Grinding Machine 3





Packing:



5.5HP Single Phase 220V Marble / Concrete Grinding Machine 4



V6-V12 concrete grinder.pdf



Tag: stone floor polishing machineconcrete floor grinding machine



The Characteristics of Diamond Polishing Pads

The diamond polishing pad is a flexible processing tool made of diamond as abrasive and combined with composite materials. The back is glued with Velcro, which is stuck on the joint of the grinder for grinding and polishing. It is used for grinding stone, ceramics, glass, and floor tiles, etc. And it can also be used for processing, repair and renovation of marble, concrete, terrazzo, artificial stone, glazed tiles, and vitrified tiles.

The diamond polishing pad has the advantages of strong grinding force, durability, good flexibility and good gloss. It is an ideal stone polishing tool. The processing process is divided into coarse grinding, fine grinding and polishing.


The characteristics of diamond polishing pads

Made of special material

It is a flexible material made of diamond as abrasive, combined with composite materials and processed. Therefore, after it is made, due to the particularity of the material, it has very strong performance and characteristics. so that it can be used to complete the task in many field.

Wide range of applications

It is widely used in all aspects of the construction industry. At present, it is mainly used for stone polishing, various floor treatment, etc, but also for processing marble, terrazzo, cement pavement, countertops, etc. The scope of application getting wider and wider, and the effect is very obvious.

Good performance

Due to the special materials, it has the advantages of strong grinding force, good durability, good softness, bright clarity, strong gloss, etc. Relying on its own good performance, it has become an ideal stone grinding tools used in all areas of society.

Good using effect

After polishing with diamond polishing pads, it can be und that the gloss will be significantly improved after the whole process is done, and the surface is very smooth.
