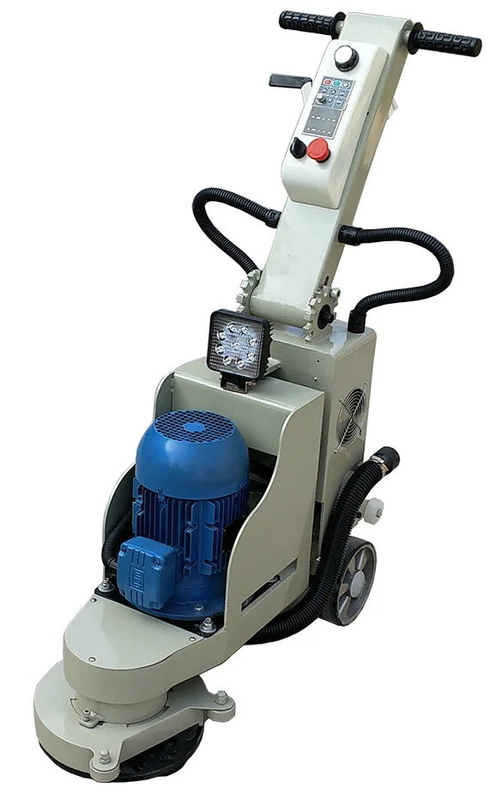

240V 13A 3KW Manual Concrete Edge Grinding Machine

240V 13A 3KW Manual Concrete Edge Grinding Machine

240V 13A 3KW Manual Concrete Edge Grinding Machine
video
240V 13A 3KW Manual Concrete Edge Grinding Machine
Product Details:
Place of Origin: China
Brand Name: Merrock
Certification: CE
Model Number: S3-300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 1300-2000
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 30
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 20
Contact Now
Detailed Product Description
Product Name: 240V 13A 3KW Small Manual Marble Floor Edge Grinding Machine Voltage(V): 220V-240V 1 Phase
Power Output (KW): 3KW Inverter (HP): 5.5HP
Work Area: 30*30cm Grinding Speed: 0-1500R/Min
Automatic Grade: Manual Function: Grinding And Polishing The Edge Or Corner Of Stone Terrazzo Concrete Floor
Current: 13A Led: With
High Light:

3KW Concrete Edge Grinding Machine

,

13A Concrete Edge Grinding Machine

,

240V Concrete Edge Grinder

240V 13A 3KW Small Manual Concrete Floor Edge Grinding Machine



MERROCK Profile.pdf





Description:



240V 13A 3KW Small Manual Concrete Floor Edge Grinding Machine is used to grind the edge of floor and the angle of floor.



1. S3-300 with the multifunction plate which with magnetic, it's suitable for all kinds of pads, blade, like velcro-back or metal wheel.
2. One plate with 3 pieces heads, each time need fix 3 pieces pads (blades).
3. With vacuum cleaner interface could install a vacuum cleaner outside.
4. It with water tank can wet and dry grinding.
5. S3-300 apply to marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
6. It's easy to control and has stable performance.



Quick Detail:



Name

240V 13A 3KW Small Manual Concrete Floor Edge Grinding Machine

Application Marble, granite, quartzite, terrazzo, concrete floor
Type S3-300 240V Function Leveling, polishing, grinding, renovating



Function:



240V 13A 3KW Small Manual Concrete Floor Edge Grinding Machine it's for stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...




Model

S3-300 240V 380V

Voltage(V) 380V-460V 220V-240V
Power output 4HP/3KW 4HP/3KW
Inverter 5.5HP/4KW 5.5HP/4KW
Revolution Speed 0-1500 rpm  0-1500 rpm
Work width 300mm 300mm
Water tank 30L 30L
Heads 3 pieces 3 pieces
Grinding plate 1 pieces 1 pieces
NW 105KGS 105KGS
Gross weight 125KGS 125KGS
Packing size 750*450*910mm 750*450*910mm




Detail picture:



1. 240V 13A 3KW Small Manual Concrete Floor Edge Grinding Machine, it mainly uses to grind and polish the wall corner, edge, the plate of machine can against the wall.

2. It can use the dry and wet resin polishing pads, metal diamond grind blades.

3. It's to solve the problem of grinding and polishing the edge and corner of the stone, terrazzo and concrete floor.

4. Small machine easy to carry.



240V 13A 3KW Manual Concrete Edge Grinding Machine 0

240V 13A 3KW Manual Concrete Edge Grinding Machine 1





Available tools:



Diamond resin pads



1. Wet polishing pad for wet grinding and polishing for the edge of marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the corner of marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.



240V 13A 3KW Manual Concrete Edge Grinding Machine 2



Diamond grinding shoes for concrete terrazzo and epoxy floor

Metal diamond grinding discs for concrete terrazzo and epoxy floor

Metal diamond grinding blades for concrete terrazzo and epoxy floor



240V 13A 3KW Manual Concrete Edge Grinding Machine 3





Packing:



Carton with iron frame

Size: 750*450*910mm



240V 13A 3KW Manual Concrete Edge Grinding Machine 4


catalog-grinder polisher.pdf



Tag: angle floor grinder, granite floor grinding machine

Causes of Wave Patterns After Floor Grinding

After some floors are ground, sometimes they will have obvious wave patterns when viewed from the side light. These wave patterns are like ripple marks after the wind blows over the water surface, forming some height differences. It not only means that there is a problem with the flatness of the floor, but also has a great influence on the decorative effect of the floor.

The height difference of the seams

The difference in height of the seam is the cause of wave pattern after the partial floor grinding. When paving, the joints of the two plates are not aligned, and there is a difference in height. For the alignment of the other joints, the entire plate will be in a warped state, with one side high and the other low. After grinding in this way, local wave patterns will be formed.

The paving process is unreasonable

When a large area, obvious wave pattern appears in an area, it is generally caused by the overall paving process. When paving a large area, workers sometimes use the drawing method to pave. That is, nylon thread is used to draw the line in the construction area, and then along the line to determine the horizontal position and high and low position of the paving. But this lack of precision method has some problems.

The selection of grinding discs

Grinding disc is also the cause of the wave pattern on the floor, which is easy to be overlooked by many people. For the overall grinding of the floor, generally using the number segment "50→100→200→400→800→1500→3000". Among them, the first four number segments have a grinding force, which plays a decisive role in the overall flatness. The reason is that floor is an inhomogeneous material, and the hardness of each part of its surface is different, and the degree of wear resistance is also different. When grinding, small abrasives will quickly slide from the hard part to the soft part of the floor under the pressure and speed of the grinder, causing the soft part to grind deeply, but at the same time the hard part is scratched and under-grinding, which caused local wave patterns.

The selection of grinder

In the choice of grinder, the larger the width, the better the leveling effect. And the larger the coverage area, the larger the polishing area, so that it is less prone to wave patterns.
