3 Heads 300mm Manual Concrete Edge Polisher 15A 230V

3 Heads 300mm Manual Concrete Edge Polisher 15A 230V

  • 3 Heads 300mm Manual Concrete Edge Polisher 15A 230V
3 Heads 300mm Manual Concrete Edge Polisher 15A 230V
Product Details:
Place of Origin: China
Brand Name: Merrock
Certification: CE
Model Number: S3-300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 1300-2000
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 30
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 20
Contact Now
Detailed Product Description
Product Name: 15A 230V 300mm Manual Terrazzo Edge Grinder Polisher With Led Light Voltage (V): 220V/380V
Power (KW): 4HP/3KW Inverter (HP): 5.5HP/4KW
Work Diameter: 300mm Speed: 0-1500RPM
Automatic Grade: Manual Energe: Electricity
Current: 15A Led: With
High Light:

Manual Concrete Edge Polisher

,

300mm Concrete Edge Polisher

,

3 Heads Concrete Edge Polishing Machine

15A 230V 300mm Manual Concrete Edge Polisher



MERROCK Profile.pdf



Quick Detail:



Name

15A 230V 300mm Manual Concrete Edge Grinder Polisher With Led Light

Application Marble, granite, terrazzo, concrete floor
Type S3-300 Function Leveling, polishing, grinding, renovating





Description:



15A 230V 300mm Manual Concrete Edge Grinder Polisher With Led Light is used to grind the edge of floor and the angle of floor.



1. 4HP 240V 300mm Concrete Edge Grinding Polishing Machine With Led Light with the multifunction plate which with magnetic, it's suitable for all kinds of pads, blade, like velcro-back or metal wheel.
2. One plate with 3 pieces heads, each time need fix 3 pieces pads (blades).
3. With vacuum cleaner interface could install a vacuum cleaner outside.
4. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
5. It's easy to control and has stable performance.





Main functions:



1. Coating removal: glue, leveling compound, paint, thin epoxy coating, tile leveling layer.

2. Concrete repair: concrete repair damaged by rain.

3. Leveling: Grind the higher points of the ground level.

4. Polished corners.

5. Small area polishing and grinding.

6. Effectively remove residual glue, paint and wall powder on medium-sized concrete.




Application:



15A 230V 300mm Manual Concrete Edge Grinder Polisher With Led Light it's for stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Specification: catalog-grinder polisher.pdf

Model S3-300 Manual Concrete Edge Polisher
Voltage(V) 380V-460V 220V-240V
Power 4HP/3KW 4HP/3KW
Inverter(HP) 5.5HP/4KW 5.5HP/4KW
Grinding Speed 0-1500 rpm  0-1500 rpm
Working diameter 300mm 300mm
Grinding Heads 3 pieces 3 pieces
Grinding plate 1 pieces 1 pieces
Net weight 105KGS 105KGS
GW 125KGS 125KGS
Packing size 750*450*910mm 75*45*91cm

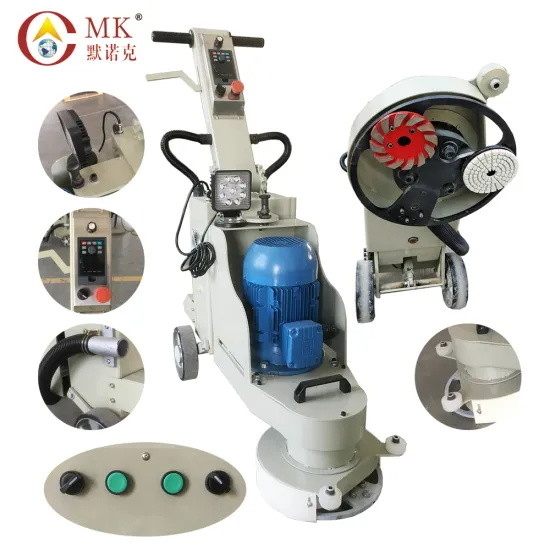

Detail picture:



1. 15A 230V 300mm Manual Concrete Edge Grinder Polisher With Led Light, it mainly uses to grind and polish the wall corner, edge, the plate of machine can against the wall.

2. It can use the dry and wet resin polishing pads, metal diamond grind blades.





3 Heads 300mm Manual Concrete Edge Polisher 15A 230V 0

3 Heads 300mm Manual Concrete Edge Polisher 15A 230V 1







Available abrasive:



Diamond resin pads



1. Wet polishing pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.



3 Heads 300mm Manual Concrete Edge Polisher 15A 230V 2





Diamond grinding shoes for concrete terrazzo and epoxy floor

Metal diamond grinding discs for concrete terrazzo and epoxy floor

Metal diamond grinding blades for concrete terrazzo and epoxy floor



3 Heads 300mm Manual Concrete Edge Polisher 15A 230V 3





Packing:



Carton + Iron frame

Pack Size: 75*45*91cm



3 Heads 300mm Manual Concrete Edge Polisher 15A 230V 4



catalog-grinder polisher.pdf



Tag: concrete floor grinder, marble floor grinding machine



Causes of Wave Patterns After Floor Grinding

After some floors are ground, sometimes they will have obvious wave patterns when viewed from the side light. These wave patterns are like ripple marks after the wind blows over the water surface, forming some height differences. It not only means that there is a problem with the flatness of the floor, but also has a great influence on the decorative effect of the floor.

The height difference of the seams

The difference in height of the seam is the cause of wave pattern after the partial floor grinding. When paving, the joints of the two plates are not aligned, and there is a difference in height. For the alignment of the other joints, the entire plate will be in a warped state, with one side high and the other low. After grinding in this way, local wave patterns will be formed.

The paving process is unreasonable

When a large area, obvious wave pattern appears in an area, it is generally caused by the overall paving process. When paving a large area, workers sometimes use the drawing method to pave. That is, nylon thread is used to draw the line in the construction area, and then along the line to determine the horizontal position and high and low position of the paving. But this lack of precision method has some problems.

The selection of grinding discs

Grinding disc is also the cause of the wave pattern on the floor, which is easy to be overlooked by many people. For the overall grinding of the floor, generally using the number segment "50→100→200→400→800→1500→3000". Among them, the first four number segments have a grinding force, which plays a decisive role in the overall flatness. The reason is that floor is an inhomogeneous material, and the hardness of each part of its surface is different, and the degree of wear resistance is also different. When grinding, small abrasives will quickly slide from the hard part to the soft part of the floor under the pressure and speed of the grinder, causing the soft part to grind deeply, but at the same time the hard part is scratched and under-grinding, which caused local wave patterns.

The selection of grinder

In the choice of grinder, the larger the width, the better the leveling effect. And the larger the coverage area, the larger the polishing area, so that it is less prone to wave patterns.
