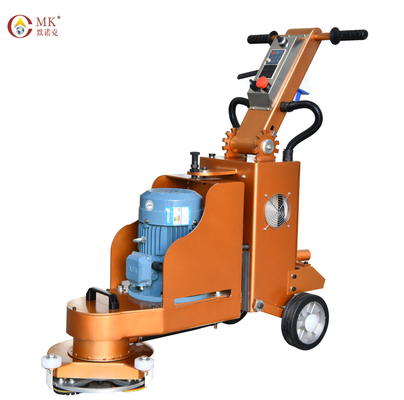

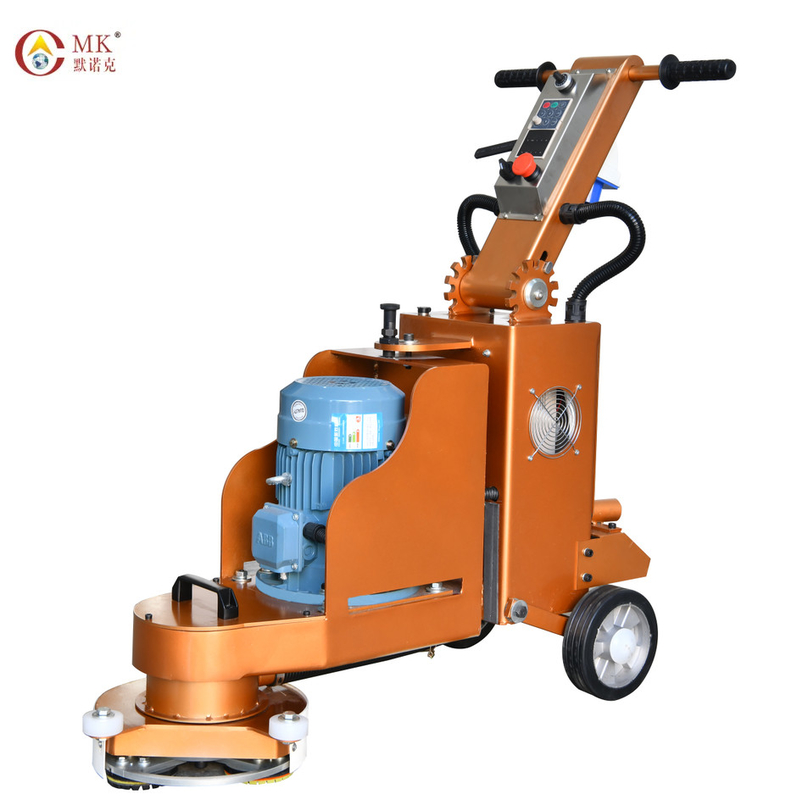

Merrock 3 Heads Concrete Floor Polishing Equipment 1500RPM

Merrock 3 Heads Concrete Floor Polishing Equipment 1500RPM

  • Merrock 3 Heads Concrete Floor Polishing Equipment 1500RPM
Merrock 3 Heads Concrete Floor Polishing Equipment 1500RPM
Product Details:
Place of Origin: China
Brand Name: MERROCK
Certification: CE
Model Number: S3-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD1000/PC
Packaging Details: Export Carton & Iron Frame
Delivery Time: 5-10 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500pcs/month
Contact Now
Detailed Product Description
Product Name: Concrete Sidewalk Grinding Working Depth: 1-3mm
Application: Grinding Polishing Grinding Head: 3 Heads
Motor: 4HP Inverter: 5.5HP
Rotating Speed: 0-1500rpm Gear Box: Aluminum Die Casting
High Light:

Concrete Floor Polishing Equipment 1500RPM

,

Merrock Concrete Floor Polisher 1500RPM

,

3 Heads Concrete Floor Polisher

3 Heads Concrete Floor Grinder Dia 300mm For Building Material Shops



MERROCK Profile.pdf

Description



Floor grinder is mainly used for ground grinding treatment. It can effectively polish terrazzo, concrete surface, epoxy mortar layer and old epoxy ground. It has the characteristics of lightness, flexibility and high work efficiency. With a vacuum cleaner power socket, the power cord of the vacuum cleaner can be directly connected to the grinder to avoid the trouble of two power cords when working. It is an ideal equipment for floor engineering treatment.



Parameters:



Item Data
Model S3-300
Weight 105KG
Power of main motor 3KW
Voltage 220v
Current 15A
Frequency convernt 4kw
Working width 300mm
Working depth 1-3mm
Water tank Capacity none
Speed 1500r/min
Grinding head  3pieces
Grinding disc  3 pieces
Disc diameter 300mm
Accessory  pads
Noise low than 60dba



Application & Function:



  • The appearance is beautiful, the practicality is strong, and the shock absorption effect is more prominent. It can achieve the best construction effect and avoid the mechanical damage caused by severe vibration.
  • The weight is reasonable, easy to handle, center of gravity can be achieved, and the corner grinding effect can be achieved.
  • Components through precise CNC processing.
  • With emergency stop button and reverse button on panel.
  • Multifunctional grinding discs can be fixed various polishing pads to reduce your operation cost.



Feature:



1. Global well-known brands motor and inverter

2. External vacuum port

3. Components through precision lathe processing

4. With emergency stop button and reverse button on panel

5. Multifunctional grinding discs can be fixed various polishing pads to reduce the cost

Merrock 3 Heads Concrete Floor Polishing Equipment 1500RPM 0

FAQ


Q1: Are you trading company or manufacturer?
A1: We are manufacturer. Many customers have visited us, welcome!


Q2: Do you also produce accessories?
A2: Yes, we produce all kinds of accessories.

Q3: Will the machines come with accessories?
A3: Yes, all the machines will be shipped with necessary accessories.

Q4: Do your machines can be custom-made?
A6: Yes, Ronlon provide OEM&ODM service.


Causes of Wave Patterns After Floor Grinding

After some floors are ground, sometimes they will have obvious wave patterns when viewed from the side light. These wave patterns are like ripple marks after the wind blows over the water surface, forming some height differences. It not only means that there is a problem with the flatness of the floor, but also has a great influence on the decorative effect of the floor.

The height difference of the seams

The difference in height of the seam is the cause of wave pattern after the partial floor grinding. When paving, the joints of the two plates are not aligned, and there is a difference in height. For the alignment of the other joints, the entire plate will be in a warped state, with one side high and the other low. After grinding in this way, local wave patterns will be formed.

The paving process is unreasonable

When a large area, obvious wave pattern appears in an area, it is generally caused by the overall paving process. When paving a large area, workers sometimes use the drawing method to pave. That is, nylon thread is used to draw the line in the construction area, and then along the line to determine the horizontal position and high and low position of the paving. But this lack of precision method has some problems.

The selection of grinding discs

Grinding disc is also the cause of the wave pattern on the floor, which is easy to be overlooked by many people. For the overall grinding of the floor, generally using the number segment "50→100→200→400→800→1500→3000". Among them, the first four number segments have a grinding force, which plays a decisive role in the overall flatness. The reason is that floor is an inhomogeneous material, and the hardness of each part of its surface is different, and the degree of wear resistance is also different. When grinding, small abrasives will quickly slide from the hard part to the soft part of the floor under the pressure and speed of the grinder, causing the soft part to grind deeply, but at the same time the hard part is scratched and under-grinding, which caused local wave patterns.

The selection of grinder

In the choice of grinder, the larger the width, the better the leveling effect. And the larger the coverage area, the larger the polishing area, so that it is less prone to wave patterns.
