Double Heads 550MM Terrazzo Floor Polisher With Vacuum Port

Double Heads 550MM Terrazzo Floor Polisher With Vacuum Port

  • Double Heads 550MM Terrazzo Floor Polisher With Vacuum Port
Double Heads 550MM Terrazzo Floor Polisher With Vacuum Port
Product Details:
Place of Origin: CHINA
Brand Name: MERROCK
Certification: CE
Model Number: V6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: upon request
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 5-7 work days, OEM 20-25 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 150 sets/month
Contact Now
Detailed Product Description
Voltage: 220/380V Motor: 5HP
Inveter: 5.5HP Speed: 0-1500RPM
Work Width: 550MM Water Tank: 30L
Condition: New Head: 2
Disc: 6
High Light:

Double Heads 550MM Terrazzo Floor Polisher

,

Terrazzo Floor Polisher With Vacuum Port

,

Terrazzo Floor Grinder With Vacuum Port

Terrazzo Floor Polisher Double Heads Vacuum Port 550MM





MERROCK Profile.pdf



Specification

Item No. V6-220B V6-380B
Voltage 220V-240V 380-440V
Motor 5.5HP 5.5HP
Inverter 5.5HP 5.5HP
Speed (rpm) 0-1500 0-1500
Weight (KG) 190 190
Work width 310*550MM 310*550MM
Water tank 30L 30L
Head/Disc 2/6 2/6


Feature

V6 is a two-head, six-disc multi-floor polisher, which is perfect for grinding & polishing various kinds of floors like Concrete, stone, marble, granite, terrazzo, etc. Ideal for concrete surface preparation, epoxy terrazzo and coating removal. Also can be used for concrete polishing & cleaning.



With following amazing strengths:

1. suitable for multi-brands multi-functional abrasives, which is known for its magnetic features, suitable for most kinds of pads, blade, like velcro-back or metal wheel.
2.
two head, six pads, can accommodate 6 tools.
3. With
dust port
4. With 30L water tank.
5. Suitable for most kinds of floors.
6. 20KGS addition weight increase the machine weight could promote the work efficiency and effect.
7. Easy to handle & control.

8. Dust shroud contains grinding debris.

9. With water control valve for wet grinding.

10. With One-year warranty!


Detailed Images

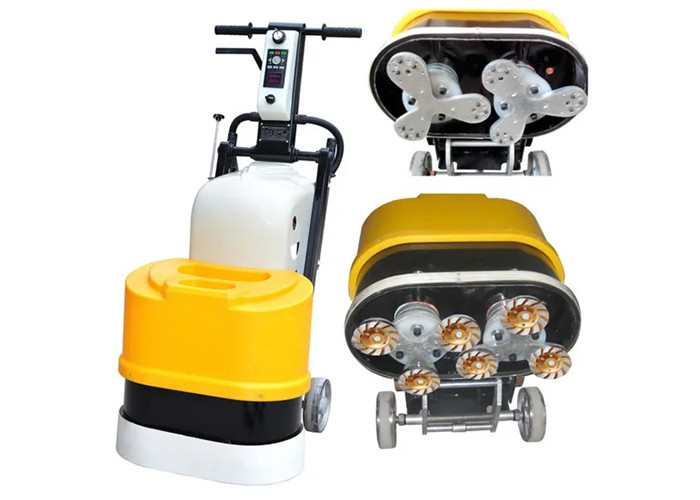

Double Heads 550MM Terrazzo Floor Polisher With Vacuum Port 0

Causes of Wave Patterns After Floor Grinding

After some floors are ground, sometimes they will have obvious wave patterns when viewed from the side light. These wave patterns are like ripple marks after the wind blows over the water surface, forming some height differences. It not only means that there is a problem with the flatness of the floor, but also has a great influence on the decorative effect of the floor.

The height difference of the seams

The difference in height of the seam is the cause of wave pattern after the partial floor grinding. When paving, the joints of the two plates are not aligned, and there is a difference in height. For the alignment of the other joints, the entire plate will be in a warped state, with one side high and the other low. After grinding in this way, local wave patterns will be formed.

The paving process is unreasonable

When a large area, obvious wave pattern appears in an area, it is generally caused by the overall paving process. When paving a large area, workers sometimes use the drawing method to pave. That is, nylon thread is used to draw the line in the construction area, and then along the line to determine the horizontal position and high and low position of the paving. But this lack of precision method has some problems.

The selection of grinding discs

Grinding disc is also the cause of the wave pattern on the floor, which is easy to be overlooked by many people. For the overall grinding of the floor, generally using the number segment "50→100→200→400→800→1500→3000". Among them, the first four number segments have a grinding force, which plays a decisive role in the overall flatness. The reason is that floor is an inhomogeneous material, and the hardness of each part of its surface is different, and the degree of wear resistance is also different. When grinding, small abrasives will quickly slide from the hard part to the soft part of the floor under the pressure and speed of the grinder, causing the soft part to grind deeply, but at the same time the hard part is scratched and under-grinding, which caused local wave patterns.

The selection of grinder

In the choice of grinder, the larger the width, the better the leveling effect. And the larger the coverage area, the larger the polishing area, so that it is less prone to wave patterns.
