Three Phase 710mm Concrete Floor Polishing Equipment 11KW

Three Phase 710mm Concrete Floor Polishing Equipment 11KW

  • Three Phase 710mm Concrete Floor Polishing Equipment 11KW
Three Phase 710mm Concrete Floor Polishing Equipment 11KW
Product Details:
Place of Origin: China
Brand Name: Merrock
Certification: CE
Model Number: V12-710
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 2500-3500
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 30
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 20
Contact Now
Detailed Product Description
Product Name: Three Phase Black / Yellow Color 710mm 15HP Terrazzo Floor Grinder Voltage(V): 380V/440V
Motor Output: 11KW Inverter (HP): 11KW
Grinding Width: 710*710mm Grinding Speed: 0-1500RPM
Water Tank: 30L/Yellow Function: Remove Old Floor Coverings, Level Out The Underlying Concrete Surface And Create The Perfect Surface For Further Treatment Of Your Floor
High Light:

Concrete Floor Polishing Equipment 11KW

,

710mm Floor Polishing Equipment

,

Three Phase 710mm Concrete Floor Polisher

Three Phase 710mm 11KW Concrete Floor Polishing Equipment





MERROCK Profile.pdf



Quick Detail:



Name

Three Phase Black / Yellow Color 710mm 11KW Concrete Floor Grinder

Application Marble, granite, terrazzo, concrete floor
Type V12-710 Function Leveling, polishing, grinding, renovating





Description:



1. Wtih multi-functional grinding plate is suitable for all kinds of diamond pad ands blades.
2. Three Phase Black / Yellow Color 710mm 11KW Concrete Floor Grinder is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
5. With vacuum cleaner connector could install a vacuum cleaner outside.
6. It with water tank can wet and dry grinding.
7. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and quartzite floor etc.
8. It's easy to control and has stable performance.




Application:



Three Phase Black / Yellow Color 710mm 11KW Concrete Floor Grinder it's for marble floor leveling, granite floor polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Why is grinding the best method to level a surface and for floor preparation?

Thanks to grinding, you can remove old floor coverings, level out the underlying concrete surface and create the perfect surface for further treatment of your floor ...



Name Three Phase 710mm 11KW Concrete Floor Grinder S12-710
Weight 375 KG
Motor output 11 KW
Power consumption 32 A
Voltage 380 V
Inverter 11 KW
Revolution speed 0-1500 rpm
Grinding discs 4 pieces
Grinding heads 12 pieces
Grinding width 710*710 mm
Grinding motors 1
Water tank 30L





Feature:



1. Three Phase Black / Yellow Color 710mm 11KW Concrete Floor Grinder with magnetic plate.

2. 710 mm big width improve the working efficiency.

3. It can use the dry and wet resin polishing pads, metal diamond grinding blades.





Detail picture:

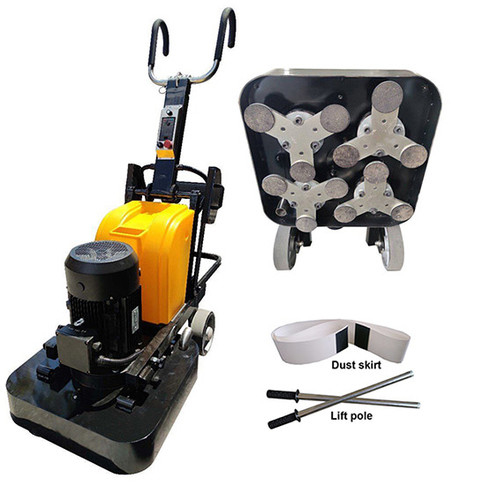

Three Phase 710mm Concrete Floor Polishing Equipment 11KW 0





Tools for the machine:



Diamond resin polishing pads ( Wet polishing pad / dry polishing pad / renovation pad)



1. Wet polishing pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.





Diamond metal grinding shoes (J007) for concrete terrazzo and epoxy floor

Metal diamond grinding discs for concrete terrazzo and epoxy floor

Metal diamond grinding blades for concrete terrazzo and epoxy floor





Packing:



Carton + iron frame (Export package)


catalog-grinder polisher.pdf



Tag: terrazzo floor grinding machineterrazzo floor grinding machine



Causes of Wave Patterns After Floor Grinding

After some floors are ground, sometimes they will have obvious wave patterns when viewed from the side light. These wave patterns are like ripple marks after the wind blows over the water surface, forming some height differences. It not only means that there is a problem with the flatness of the floor, but also has a great influence on the decorative effect of the floor.

The height difference of the seams

The difference in height of the seam is the cause of wave pattern after the partial floor grinding. When paving, the joints of the two plates are not aligned, and there is a difference in height. For the alignment of the other joints, the entire plate will be in a warped state, with one side high and the other low. After grinding in this way, local wave patterns will be formed.

The paving process is unreasonable

When a large area, obvious wave pattern appears in an area, it is generally caused by the overall paving process. When paving a large area, workers sometimes use the drawing method to pave. That is, nylon thread is used to draw the line in the construction area, and then along the line to determine the horizontal position and high and low position of the paving. But this lack of precision method has some problems.

The selection of grinding discs

Grinding disc is also the cause of the wave pattern on the floor, which is easy to be overlooked by many people. For the overall grinding of the floor, generally using the number segment "50→100→200→400→800→1500→3000". Among them, the first four number segments have a grinding force, which plays a decisive role in the overall flatness. The reason is that floor is an inhomogeneous material, and the hardness of each part of its surface is different, and the degree of wear resistance is also different. When grinding, small abrasives will quickly slide from the hard part to the soft part of the floor under the pressure and speed of the grinder, causing the soft part to grind deeply, but at the same time the hard part is scratched and under-grinding, which caused local wave patterns.

The selection of grinder

In the choice of grinder, the larger the width, the better the leveling effect. And the larger the coverage area, the larger the polishing area, so that it is less prone to wave patterns.
