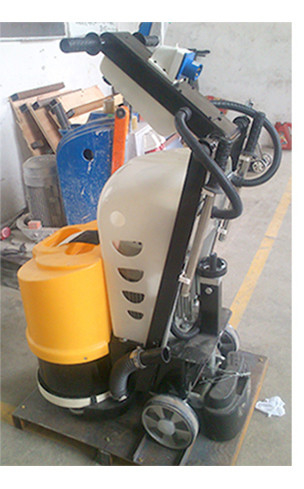

Marble / Granite / Terrazzo Grinding Machine 3000W 220V

Marble / Granite / Terrazzo Grinding Machine 3000W 220V

Marble / Granite / Terrazzo Grinding Machine 3000W 220V
video
Marble / Granite / Terrazzo Grinding Machine 3000W 220V
Product Details:
Place of Origin: China
Brand Name: Merrock
Certification: CE
Model Number: S3-300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 1300-2000
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 30
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 20
Contact Now
Detailed Product Description
Product Name: 3000W 240V Concrete Corner Grinding Machine For Marble Granite Terrazzo Concrete Floor Voltage (V): 220V/380V
Power (W): 4HP/3000W Inverter (KW): 5.5HP/4KW
Work Area: 300*300mm Grinding Speed: 0-1500RPM
Automatic Grade: Hand Push Function: Marble, Granite, Terrazzo Concrete Floor Grinding Polishing
Current: 15A Led: With
High Light:

Terrazzo Grinding Machine 220V

,

3000W Terrazzo Grinding Machine

,

3000W Granite Grinding Machine

Marble Granite Terrazzo 3000W 220V Concrete Edge Grinding Machine



MERROCK Profile.pdf



Quick Detail:



Name

3000W 220V Concrete Edge Grinding Machine For Marble Granite Terrazzo Concrete Floor

Application Marble, granite, terrazzo, concrete floor
Type S3-300 Function Leveling, polishing, grinding, renovating





Description:



3000W 220V Concrete Edge Grinding Machine For Marble Granite Terrazzo Concrete Floor is used to grind the edge of floor and the angle of floor.



1. S3-300 with the multifunction plate which with magnetic, it's suitable for all kinds of pads, blade, like velcro-back or metal wheel.
2. One plate with 3 pieces heads, each time need fix 3 pieces pads (blades).
3. With vacuum cleaner interface could install a vacuum cleaner outside.
4. It's widely apply to all kinds of floor, such as marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
5. It's easy to control and has stable performance, best for corner and edge.




Application:



3000W 220V Concrete Edge Grinding Machine For Marble Granite Terrazzo Concrete Floor it's for stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Specification: catalog-grinder polisher.pdf

Model S3-300
Voltage 380V-460V 220V-240V
Power 4HP/3KW 4HP/3KW
Inverter 5.5HP/4KW 5.5HP/4KW
Speed 0-1500 rpm  0-1500 rpm
Work width 300mm 300mm
Water tank Without Without
Heads 3 pieces 3 pieces
Grinding plate 1 pieces 1 pieces
NW 105KGS 105KGS
GW 125KGS 125KGS
Packing size 75*45*91cm 75*45*91cm




Detail picture:



1. 3KW Single Phase Concrete Edge Grinder For Marble Granite Terrazzo Concrete Floor, it mainly uses to grind and polish the wall corner, edge, the plate of machine can against the wall.

2. The dry and wet resin polishing pads, metal diamond grind blades are all available for the machine S3-300.

Marble / Granite / Terrazzo Grinding Machine 3000W 220V 0

Marble / Granite / Terrazzo Grinding Machine 3000W 220V 1





Available abrasive:



Diamond resin pads



1. Wet polishing pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.



Marble / Granite / Terrazzo Grinding Machine 3000W 220V 2





Diamond grinding shoes (J007/J007B) for concrete terrazzo and epoxy floor

Metal diamond grinding discs (J008) for concrete terrazzo and epoxy floor

Metal diamond grinding blades (J013) for concrete terrazzo and epoxy floor



Marble / Granite / Terrazzo Grinding Machine 3000W 220V 3





Packing:



Carton with iron frame

Size: 750*450*910mm



Marble / Granite / Terrazzo Grinding Machine 3000W 220V 4

catalog-grinder polisher.pdf



Tag: angle floor grinder, granite floor grinding machine



How to Grind the Soft Concrete?

Grinding soft concrete requires 'hard bond' grinding discs that resist the metal matrix being eroded away. The sandy, gritty, abrasive dust will erode diamond grinding discs abnormally fast, so be certain that you are using the right diamond grinding disc. More than any other time, grinding soft concrete is when contractors need to be aware of the signs of rapid grinding and fast wear to stop work and rectify the problem.


Things need to noted when grinding soft concrete

1.Inspect your diamond tooling regularly for unusually high diamond exposure.This means that when you run your finger over the surface the diamond grit is sticking out a lot.The diamond grit will befalling out of the matrix before you have had a chance to wear them out.

2.Use diamond tooling with a hard bond and or more segments to grind. And be certain to remove the machine weights during grinding to reduce the weight on the diamond tooling.

3.Use a vacuum that will extract dust away as quickly as possible.This will greatly improve the life of the diamond tooling. If there is a lot of dust rolling between the floor and segments, it will cause excessive wear of the diamond tooling.

Tips for grinding soft concrete

● Do not use the cheapest diamond grinding disc and expect to save money, it becomes an expensive exercise. A premium diamond grinding disc is usually the best value for money.

● Reduce the weight on the head of the machine as much as possible to ensure that the sandy, gritty, abrasive dust that is rolling around under the segments does not erode the matrix any more than necessary.
