Marble Granite Terrazzo Concrete Edge Grinding Machine 3000W 220V

Marble Granite Terrazzo Concrete Edge Grinding Machine 3000W 220V

  • High Light

    concrete floor polishing machine

    ,

    concrete floor polisher

    ,

    Concrete Edge Grinding Machine 3000W

  • Product Name
    3000W 240V Concrete Corner Grinding Machine For Marble Granite Terrazzo Concrete Floor
  • Voltage (V)
    220V/380V
  • Power (W)
    4HP/3000W
  • Inverter (KW)
    5.5HP/4KW
  • Work Area
    300*300mm
  • Grinding Speed
    0-1500RPM
  • Automatic Grade
    Hand Push
  • Function
    Marble, Granite, Terrazzo Concrete Floor Grinding Polishing
  • Current
    15A
  • Led
    With
  • Place of Origin
    Made-in-China
  • Brand Name
    MERROCK
  • Certification
    CE
  • Model Number
    S3-300
  • Minimum Order Quantity
    1pc
  • Price
    USD 1300-2000
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    30
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

Marble Granite Terrazzo Concrete Edge Grinding Machine 3000W 220V

3000W 220V Concrete Edge Grinding Machine For Marble Granite Terrazzo Concrete Floor



MERROCK Profile.pdf



Quick Detail:



Name

3000W 220V Concrete Edge Grinding Machine For Marble Granite Terrazzo Concrete Floor

Application Marble, granite, terrazzo, concrete floor
Type S3-300 Function Leveling, polishing, grinding, renovating





Description:



3000W 220V Concrete Edge Grinding Machine For Marble Granite Terrazzo Concrete Floor is used to grind the edge of floor and the angle of floor.



1.S3-300 with the multifunction plate which with magnetic, it's suitable for all kinds of pads, blade, like velcro-back or metal wheel.
2.One plate with 3 pieces heads, each time need fix 3 pieces pads (blades).
3.With vacuum cleaner interface could install a vacuum cleaner outside.
4.It's widely apply to all kinds of floor, such as marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
5.It's easy to control and has stable performance, best for corner and edge.




Application:



3000W 220V Concrete Edge Grinding Machine For Marble Granite Terrazzo Concrete Floor it's for stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Specification: catalog-grinder polisher.pdf

Model S3-300
Voltage 380V-460V 220V-240V
Power 4HP/3KW 4HP/3KW
Inverter 5.5HP/4KW 5.5HP/4KW
Speed 0-1500 rpm  0-1500 rpm
Work width 300mm 300mm
Water tank Without Without
Heads 3 pieces 3 pieces
Grinding plate 1 pieces 1 pieces
NW 105KGS 105KGS
GW 125KGS 125KGS
Packing size 75*45*91cm 75*45*91cm




Detail picture:

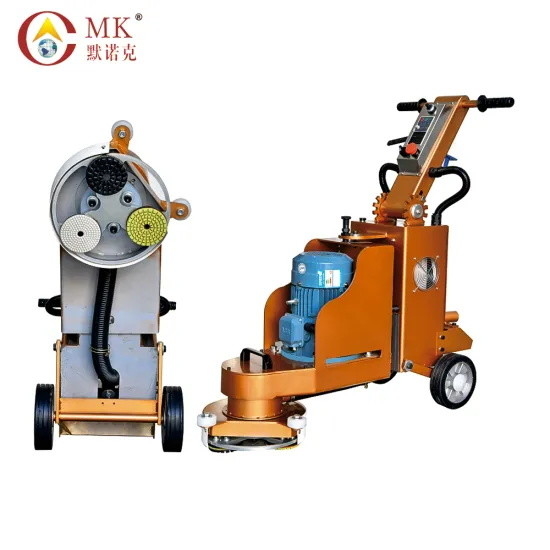

1. 3KW Single Phase Concrete Edge Grinder For Marble Granite Terrazzo Concrete Floor, it mainly uses to grind and polish the wall corner, edge, the plate of machine can against the wall.

2. The dry and wet resin polishing pads, metal diamond grind blades are all available for the machine S3-300.

Marble Granite Terrazzo Concrete Edge Grinding Machine 3000W 220V 0

Marble Granite Terrazzo Concrete Edge Grinding Machine 3000W 220V 1





Available abrasive:



Diamond resin pads



1. Wet polishing pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.





Diamond grinding shoes (J007/J007B) for concrete terrazzo and epoxy floor

Metal diamond grinding discs (J008) for concrete terrazzo and epoxy floor

Metal diamond grinding blades (J013) for concrete terrazzo and epoxy floor









Matters Needing Attention in Floor Renovation

Because of long-term use, the floor in our home will gradually aging and lose its gloss. Then many people will refurbish the floor when they are renovating their homes, and refurbish the old tiles into new ones. In fact, sometimes this is not necessary. Without replacing the new tiles, we can make our home feel completely new. Only need to use the refurbished polishing technology of diamond polishing pads, the floor will regain its gloss after grinding and polishing. The diamond polishing pads are used for maintenance and renovation of various material floors.


The traditional construction technology causes the terrazzo floor to be very rough. And over time, the terrazzo floor will encounter very prominent problems in actual use, such as weathering, abrasion, staining, and dullness. It will bring serious problems to the daily sanitary and termite control. How to restore the original beautiful beauty of weathered and abraded terrazzo is an increasingly urgent problem to be solved in the architectural decoration industry.


Facing the weathering and abrasion of the terrazzo floor, many contractors use a layer of wax after removing the dirt on the stone surface. Many people think that after waxing, the floor can be kept translucent. In fact, this method can only temporarily keep the floor bright and beautiful, and the retention period is limited, so this method is not the best solution to the terrazzo floor problem. To reform a protective film on the terrazzo floor, it is necessary to polish and protect the terrazzo floor. The weathered and abraded aging layer of the terrazzo surface can be shaved off with a terrazzo floor grinder to expose the fresh layer, and then use terrazzo diamond tools of different grits to coarse grinding, fine grinding and polishing the terrazzo floor for maintenance.
