32A 380V 11KW 12 Heads Grinding Disks Hand Push Concrete Grinder
Quick Detail:
| Name |
32A 380V 11KW 12 Heads Grinding Disks Hand Push Concrete Grinder |
Application | Marble, granite, terrazzo, concrete floor |
| Type | S12-700 | Function | Leveling, polishing, grinding, renovating |
Description:
1. Aluminum alloy die-casts one body base plate is hard and don't deform, its work efficiency is about 3 pieces of MRK-V12-510.
2. 32A 380V 11KW 12 Heads Grinding Disks Hand Push Concrete Grinder is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. 32A 380V 11KW 12 Heads Grinding Disks Hand Push Concrete Grinder with removable led light can work at night.
5. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
6. With vacuum cleaner connector could install a vacuum cleaner outside.
7. It with water tank can wet and dry grinding.
8. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
9. It's easy to control and has stable performance.
Application:
32A 380V 11KW 12 Heads Grinding Disks Hand Push Concrete Grinder it's for stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...
| Model | S12-700 | S12-700 | |||
| Phase | 3 | 3 | |||
| Voltage | 380V | 380V | |||
| Power | 15HP/11KW | 20HP/15KW | |||
| Inverter | 15HP/11KW | 20HP/15KW | |||
| Speed | 0-1500rpm | ||||
| Work width | 70*70cm | ||||
| Heads | 12 pieces | ||||
| Grinding plate | 4 pieces | ||||
| Water tank | 30L | ||||
| NW(KG) | 480/500 | ||||
| GW(KG) | 530/550 | ||||
| Packing size(CM) | 1100x700x1340mm | ||||
Detail picture:

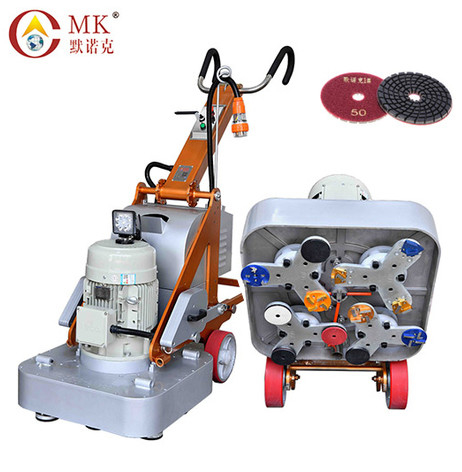

1. 32A 380V 11KW 12 Heads Grinding Disks Hand Push Concrete Grinder with luminum alloy die-casts one body base plate.
2. It can use the dry and wet resin polishing pads, metal diamond grind blades.
3. Use helical gear to reduce the machine noise.
4. With storage bin can put the tools inside the machine.
Available abrasive:
Diamond resin pads
1. Wet polishing pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.
2. Dry polishing pad for dry grinding and polishing for the marble, granite, terrazzo and concrete floor.
3. Renovation pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.
Diamond grinding shoes for concrete terrazzo and epoxy floor
Metal diamond grinding discs for concrete terrazzo and epoxy floor
Metal diamond grinding blades for concrete terrazzo and epoxy floor
Tips:
What is a Grinding Wheel?
A grinding wheel is a precision tool with thousands of cutting points on its surface, abrasive grains that are held in place by a bond matrix (hence these are known as bonded abrasives) and separated by pores. These pores are hollow spaces between abrasive grains and the bond , which help with the clearance of discarded metal chips in the grinding process. When the wheel is in use, the abrasive grains cut into the material that is being ground, removing the unwanted surface material in small chips.
During grinding, the cutting points on the abrasive grains are worn flat and becoming increasingly blunt. At the same time, the increased friction causes a build-up of heat, which fractures the abrasive grain and exposes new cutting edges or begins to disintegrate the bond bridges that hold the abrasive grains in place.
In normal vitrified grinding, the wheel has to be dressed using a dressing tool. By varying the properties of the abrasive, the type of bond, the wheel’s construction, it is possible to produce grinding wheels with a vast range of different grinding characteristics.
