Highlight
15HP Concrete Grinding Machine
,50HZ Concrete Grinding Machine
,415v concrete polishing machines
-
Product Name415V / 50HZ 15HP 20 Inch Concrete Grinding Machine
-
Voltage(V)380V-460V
-
Motor (HP)11KW/15HP
-
Inverter (KW)15HP/11KW
-
Work Area710*710mm
-
Grinding Speed0-1500RPM
-
Water Tank30L
-
FunctionSurface Preparation, Marble Granite Floor Grinding Polishing
-
Place of OriginMade-in-China
-
Brand NameMERROCK
-
CertificationCE
-
Model NumberV12-710
-
Minimum Order Quantity1pc
-
PriceUSD1000-3500
-
Packaging DetailsIron frame+carton
-
Delivery Time30
-
Payment TermsWestern Union, MoneyGram, T/T
-
Supply Ability20

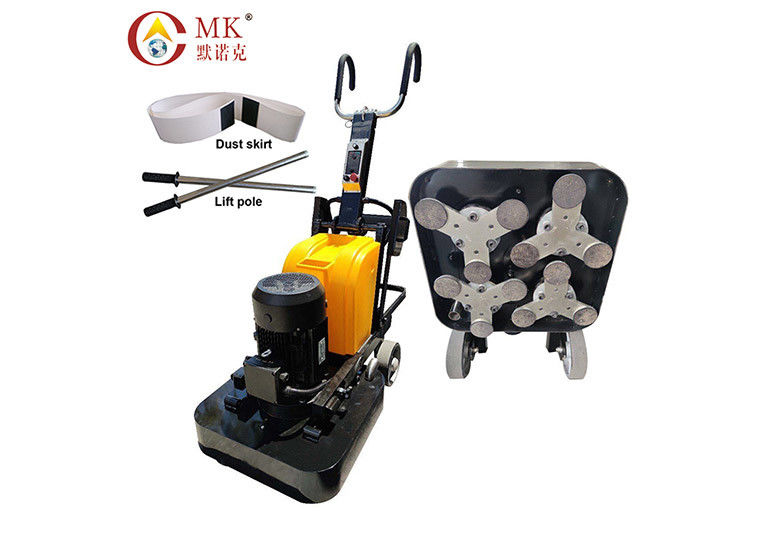

415V 50HZ 15HP 20 Inch Concrete Grinding Machine
415V / 50HZ 15HP 20 Inch Concrete Grinding Machine
Quick Detail:
| Product name |
415V / 50HZ 15HP 20 Inch Concrete Grinding Machine |
Application | Marble, granite, terrazzo, concrete and quartzite floor |
| Type | V12-710 | Function | Leveling, polishing, grinding, renovating |
Description:
1. With multi-functional grinding plate is suitable for all kinds of diamond pad ands blades.
2. 415V / 50HZ 15HP 20 Inch Concrete Grinding Machine is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
5. With vacuum cleaner port could install a industrial vacuum cleaner outside.
6. There is a yellow water tank can grinding in wet and dry.
7. V12-710 Concrete Grinding Machine apply to marble, granite, terrazzo, concrete floor, natural stone floor etc.
8. Machinen in 710mm it's easy to control and has stable performance.
Application:
415V / 50HZ 15HP 20 Inch Concrete Grinding Machine is for marble floor leveling, granite floor polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...
| Model | S12-710 | |||
| Phase | 3 | |||
| Voltage | 380V 50HZ/60HZ | |||
| Power (KW) | 11KW | |||
| Inverter (KW) | 11KW | |||
| Grinding Speed | 0-1500rpm | |||
| Work width | 710*710mm | |||
| Grinding Heads | 12 pieces | |||
| Grinding plate | 4 pieces | |||
| Water tank | 30L/Yellow | |||
| Net Weight | 375KG | |||
| Gross Weight | 425KG | |||
Feature:
1. 415V / 50HZ 15HP 20 Inch Concrete Grinding Machine with magnetic plate.
2. 710mm big width improve the working efficiency.
3. It can use the dry and wet resin polishing pads, metal diamond grinding blades.

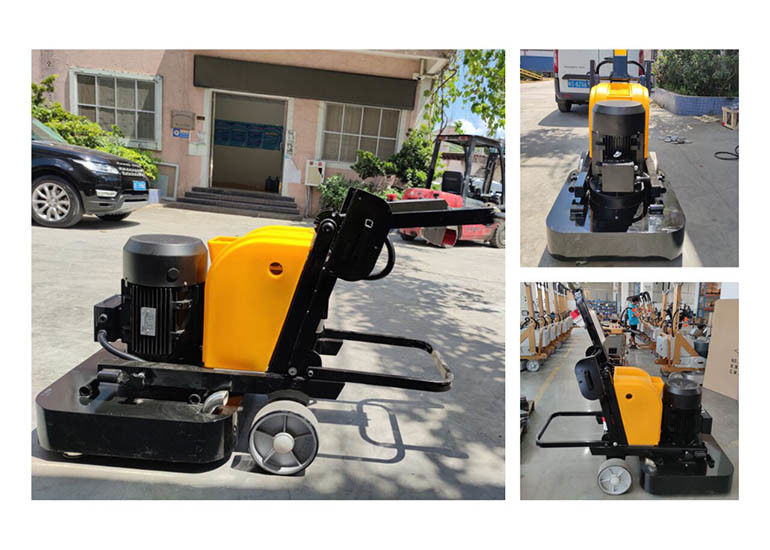

Detail picture:
Tools (Diamond resin polishing pads) for the machine:
Diamond resin polishing pads ( Wet polishing pad / dry polishing pad / renovation pad)
1. Wet polishing pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.
2. Dry polishing pad for dry grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.
3. Renovation pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.
Diamond metal grinding shoes (J007) for concrete terrazzo and epoxy floor
Metal diamond grinding discs for concrete terrazzo and epoxy floor
Metal diamond grinding blades for concrete terrazzo and epoxy floor
Solution for concrete floor:
1. Metal diamond grinding blade
J010 30#
J010 50#
J010 100#
2. Resin diamond wet polishing pad
R-2 50#
R-2 150#
R-2 300#
R-2 500#
3. Resin diamond dry polishing pad
G-2 800#
G-2 1500#
Packing:
Carton + iron frame (Export package)
Tag: terrazzo floor polishing machine, concrete floor grinder
