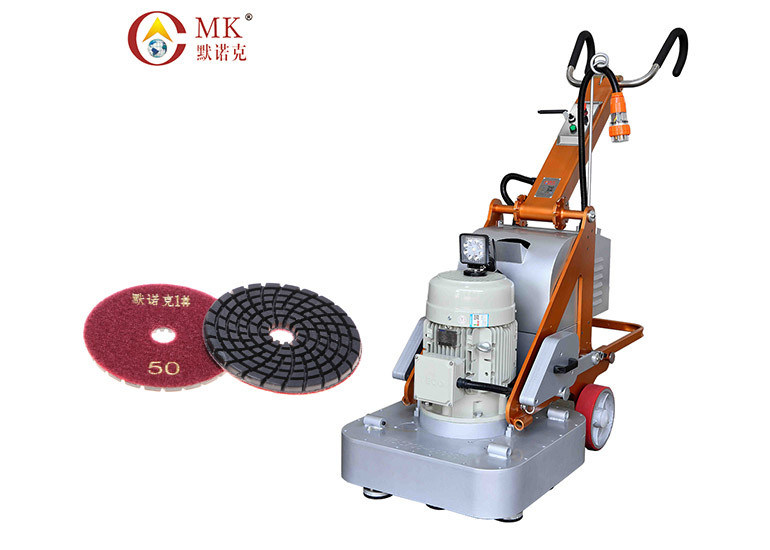

Three Phase 20HP Helical Gear Concrete Floor Grinding Machine
Quick Detail:
| Name |
Three Phase 20HP Helical Gear Concrete Floor Grinding Machine |
Application | Marble, granite, terrazzo, concrete floor |
| Type | S12-700 | Function | Leveling, polishing, grinding, renovating |
Description:
1. Aluminum casting gear box is hard and don't deform, its working efficiency is about 3 pieces of MRK-V12-510.
2. Three Phase 20HP Helical Gear Concrete Floor Grinding Machine is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. Three Phase 20HP Helical Gear Concrete Floor Grinding Machine with removable led light can work at night.
5. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
6. With vacuum cleaner interface could install a vacuum cleaner outside.
7. With water tank can wet and dry grinding.
8. It's applied to marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
9. It's easy to control and has stable performance.
Application:
Three Phase 20HP Helical Gear Concrete Floor Grinding Machine it's for quartztite stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...
| Model | S12-700 | S12-700 | |||
| Phase | three | three | |||
| Voltage (V) | 380V | 380V | |||
| Power (KW) | 15HP/11KW | 20HP/15KW | |||
| Inverter (KW) | 15HP/11KW | 20HP/15KW | |||
| Grinding Speed | 0-1500r per minute | ||||
| Work width | 700 x 700mm | ||||
| Grinding Heads | 12 pieces | ||||
| Grinding plate | 4 pieces | ||||
| Water tank | 30L | ||||
| Net weight (KG) | 480/500 | ||||
| Gross weight (KG) | 530/550 | ||||
| Packing size(CM) | 1100*700*1340mm | ||||
Feature:
1. Three Phase 20HP Helical Gear Concrete Floor Grinding Machine with aluminum alloy die-casts one body base plate.
2. Use helical to reduce the noise of machine.
3. It can use the dry and wet resin polishing pads, metal diamond grind disks.
4. With storage bin can collect some tools.
5. With led light can work at night.
Detail picture:

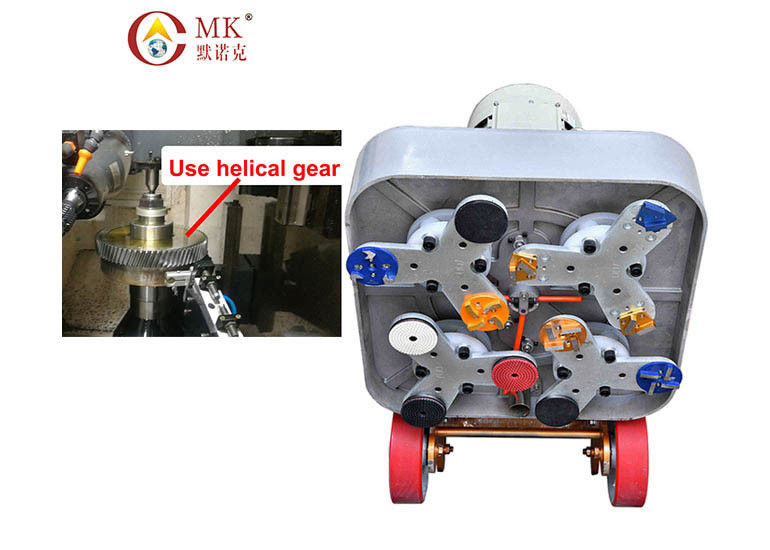

Use helical gear
Available tools:
Diamond resin polishing pads
1. Wet polishing pad (R-0, R-1, R-2) for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.
2. Dry polishing pad (G-1, G-2) for dry grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.
3. Renovation pad (F-21, F-27) for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.
Metal diamond grinding shoes (J007, J007B) for concrete terrazzo and epoxy floor
Metal diamond grinding discs (J008, J009, J010) for concrete terrazzo and epoxy floor
Metal diamond grinding blades (J007C, J013, J016) for concrete terrazzo and epoxy floor
Packing detail:
Carton + iron frame
Size: 1100x700x1340mm
