20HP 850mm Planetary Concrete Grinder With Diamond Grinding Disc

20HP 850mm Planetary Concrete Grinder With Diamond Grinding Disc

  • High Light

    850mm Planetary Concrete Grinder

    ,

    20HP Planetary Concrete Grinder

    ,

    Diamond Disc Planetary Floor Grinder

  • Product Name
    Concrete Floor Grinder
  • Function
    Concrete Floor Grinding And Polishing
  • Grinding Head
    12 Heads
  • Motor
    20HP
  • Inverter
    20HP
  • Rotating Speed
    0-1500rpm
  • Weight
    640kgs
  • Gear Box
    Aluminum Die Casting
  • Place of Origin
    Made-in-China
  • Brand Name
    MERROCK
  • Certification
    CE
  • Model Number
    Z12-X-850
  • Minimum Order Quantity
    1pc
  • Price
    USD6500/PC
  • Packaging Details
    Export Carton & Iron Frame
  • Delivery Time
    5-10 days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    450pcs/month

20HP 850mm Planetary Concrete Grinder With Diamond Grinding Disc



Heavy Duty 850MM Planetary Concrete Floor Grinder With Diamond Grinding Disc







Application & Function:



Planetary concrete floor grinders are generally making them easier manipulate. their design allows them to move in a straight line across the floor with relative ease, which means greater flexibility and less struggle for operators. thanks to their design, planetary grinders work best on less aggressive jobs, such as smoothing out a concrete floor or preparing a residential garage floor for an epoxy coating. they can also be used for polishing with polishing pads.

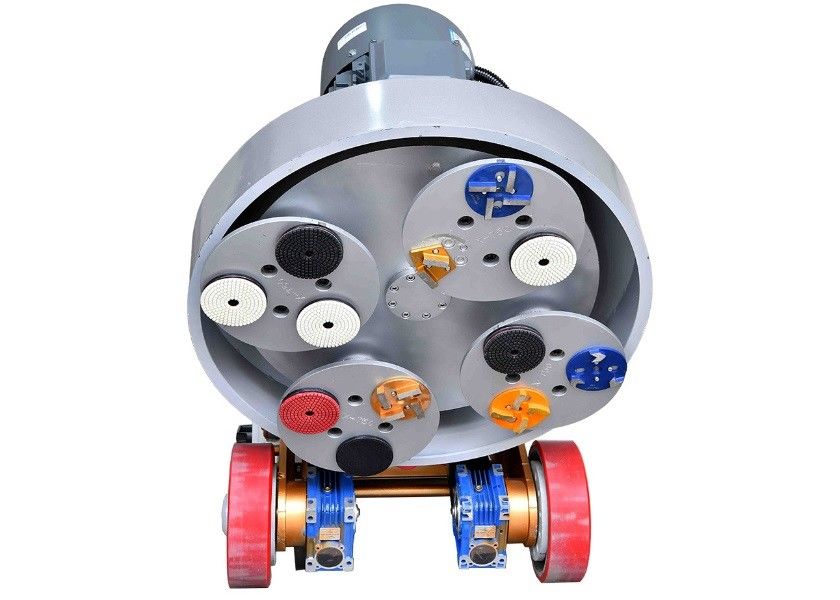

20HP 850mm Planetary Concrete Grinder With Diamond Grinding Disc 0

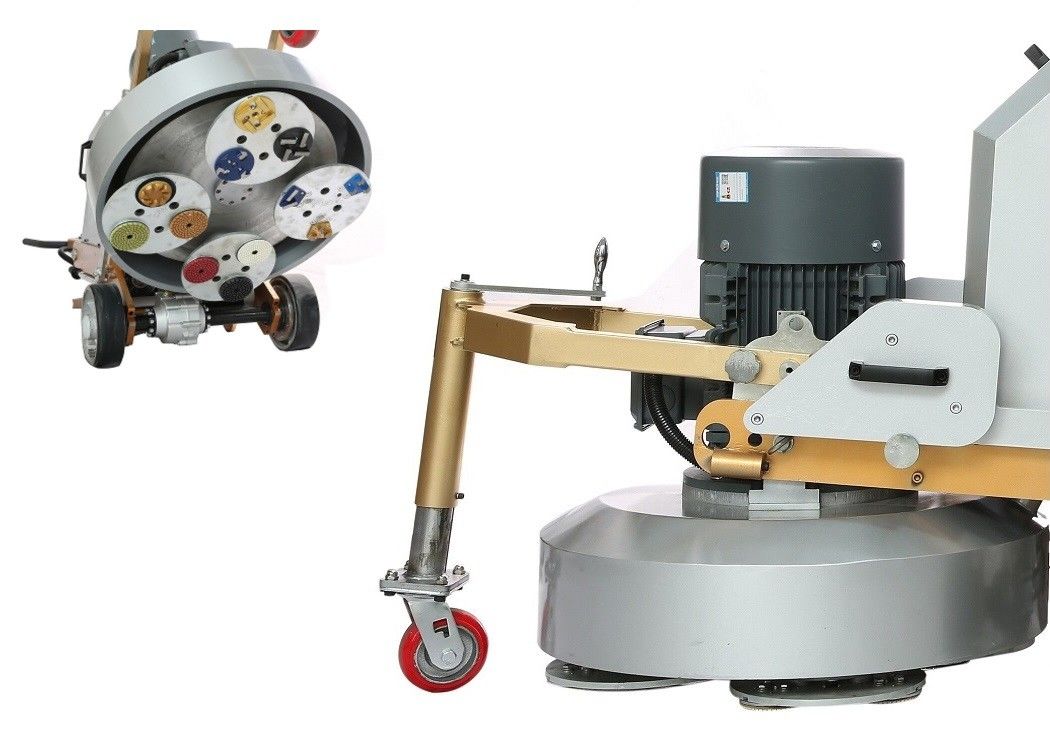

20HP 850mm Planetary Concrete Grinder With Diamond Grinding Disc 1









Feature:



1. Aluminum die-casting gear box

2. Global well-known brands motor and inverter

3. External vacuum port

4. Components through precision lathe processing

5. With emergency stop button and reverse button on panel

6. Multifunctional grinding discs can be fixed various polishing pads to reduce the cost





Parameters:



Item Data
Model Z12-X-850
Voltage 460V/380V
Motor 20HP
Inverter 20HP
Speed 0-1500rpm
Work width φ850mm2
Water tank 30L
Grinding heads 12pcs
Grinding disc 4pcs
Weight 640kgs
