1500RPM 11KW 15HP Terrazzo Concrete Floor Grinder

1500RPM 11KW 15HP Terrazzo Concrete Floor Grinder

  • High Light

    11KW Concrete Floor Grinder

    ,

    5HP Concrete Floor Grinder

    ,

    1500RPM Concrete Floor Grinding machine

  • Product Name
    1500RPM 700mm 28 Inch 11KW / 15HP Terrazzo Grinding Machine
  • Voltage(V)
    380V/440V
  • Power(KW)
    11KW/15HP
  • Inverter(KW)
    11KW/15HP
  • Work Area
    700*700mm
  • Speed
    0-1500RPM
  • Water Tank
    30L
  • Automatic Grade
    Manual
  • Place of Origin
    Made-in-China
  • Brand Name
    MERROCK
  • Certification
    CE
  • Model Number
    S12-700 11KW
  • Minimum Order Quantity
    1pc
  • Price
    USD 2500-3500/Set
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    30
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

1500RPM 11KW 15HP Terrazzo Concrete Floor Grinder



1500RPM 415V 700mm 28 Inch 11KW / 15HP Terrazzo Concrete Floor Grinder





Quick Detail:



Name

1500RPM 700mm 28 Inch 11KW / 15HP Terrazzo Concrete Floor Grinder

Application Marble, granite, terrazzo, concrete floor
Type S12-700 Function Leveling, polishing, grinding, renovating





Description:



1. Aluminum alloy die-casts one body base plate is hard and don't deform, its work efficiency is about 3 pieces of MRK-V12-510.
2. 1500RPM 700mm 28 Inch 11KW / 15HP Terrazzo Concrete Floor Grinder is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. 1500RPM 700mm 28 Inch 11KW / 15HP Terrazzo Concrete Floor Grinder with removable led light can work at night.
5. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
6. With vacuum cleaner connector could install a vacuum cleaner outside.
7. It with water tank can wet and dry grinding.
8. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
9. It's easy to control and has stable performance.




Application:



1500RPM 700mm 28 Inch 11KW / 15HP Terrazzo Concrete Floor Grinder it's for stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Specification: S12-S6 concrete grinder.pdf

Model S12-700 S12-700
Phase 3 3
Voltage 380V 380V
Power 15HP/11KW 20HP/15KW
Inverter 15HP/11KW 20HP/15KW
Speed 0-1500rpm
Work width 700*700mm
Heads 12 pieces
Grinding plate 4 pieces
Water tank 30L
NW(KG) 480/500
GW(KG) 530/550
Packing size(CM) 110x70x134cm





Detail picture:

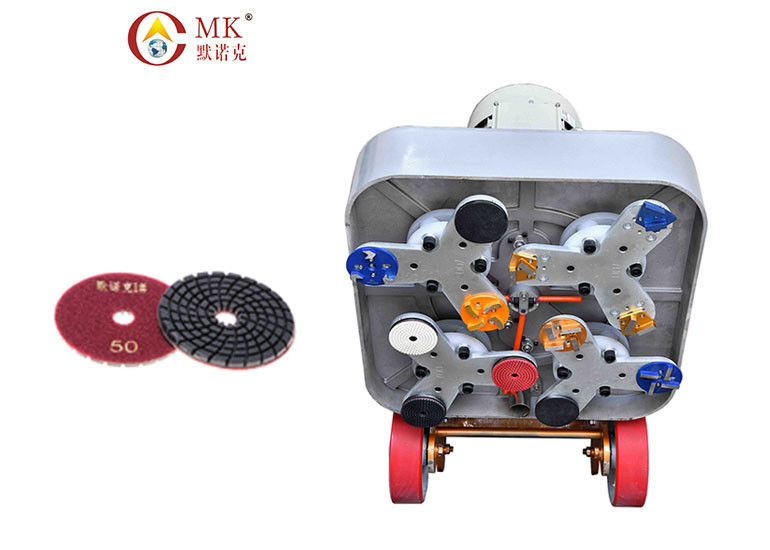

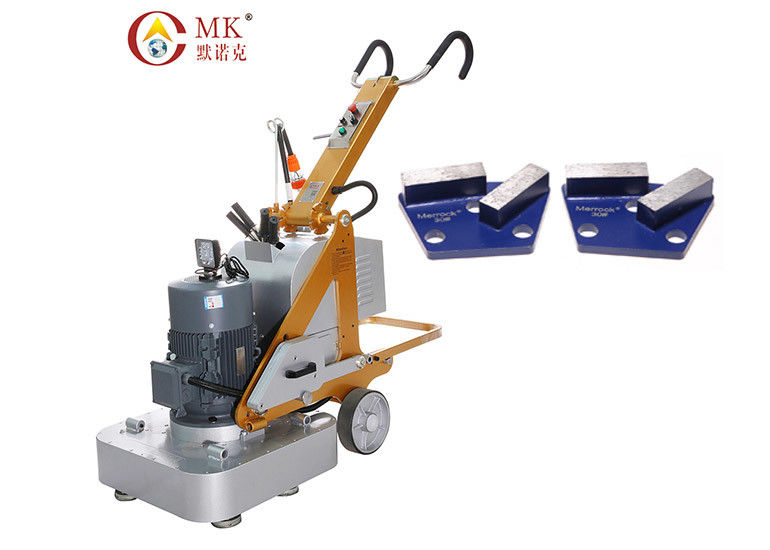

1.1500RPM 700mm 28 Inch 11KW / 15HP Terrazzo Concrete Floor Grinder with luminum alloy die-casts one body base plate.

2. It can use the dry and wet resin polishing pads, metal diamond grind blades.

1500RPM 11KW 15HP Terrazzo Concrete Floor Grinder 0





Available abrasive:



Diamond resin pads



1. Wet polishing pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.





Diamond grinding shoes for concrete terrazzo and epoxy floor

Metal diamond grinding discs for concrete terrazzo and epoxy floor

Metal diamond grinding blades for concrete terrazzo and epoxy floor





Packing:



Carton with iron frame

Size: 110x70x134cm



S12-S6 concrete grinder.pdf
