Yellow One Phase 4KW 5.5HP 1500rpm Dry Concrete Polishing Machine
Quick Detail:
| Name |
Yellow One Phase 4KW 5.5HP 1500rpm Dry Concrete Polishing Machine |
Application | Marble, granite, terrazzo, concrete floor |
| Type | MRK-V6-220B | Function | Leveling, polishing, grinding, renovating |
Description:
1. Yellow One Phase 4KW 5.5HP 1500rpm Dry Concrete Polishing Machine For Stone Terrazzo Floor designed for big industrial floor area grinding with high efficiency and competitive price
2. Beautiful and generous appearance design
3. Folding hande and integration control panel, to make operation easy and safe
4. Big power motor with frequency conversion, to meet Frequent and long time use requirements for industrial floor grinding
5. Automatic pressure adjustment control system, to meet the needs of different operation processes
6. Can be equipped with vacuum equipment, realization of dry and wet working mode
7. Knob-style water switch, water spray system from the center of pad holder, an effective solution to the diamond disc wear and
tear and marks generated by grinding, greatly improve work efficiency
8. Multifunctional pad holder can install all kinds of diamond tools, reduce your operation cost as much as possible
9. Scope: Grinding for concrete, granite and marble floor
10. Driving by belt it won't burn the motor.
Application:
For granite leveling, marble polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...
| Model | MRK-V6-220B | MRK-V6-380B | |||
| Phase | 1 | 3 | |||
| Voltage(V) | 220V | 380V | |||
| Power(HP) | 5.5HP/4KW | 5.5HP/4KW | |||
| Inverter | 5.5HP/4KW | 5.5HP/4KW | |||
| Grinding Speed | 0-1500rpm | ||||
| Working area | 310*550mm | ||||
| Grinding Heads | 6 pieces | ||||
| Grinding plate | 2 pieces | ||||
| Water tank | 30L | ||||
| NW(KG) | 170+20 | ||||
| GW(KG) | 230 | ||||
| Packing size(CM) | 76x66x134cm | ||||

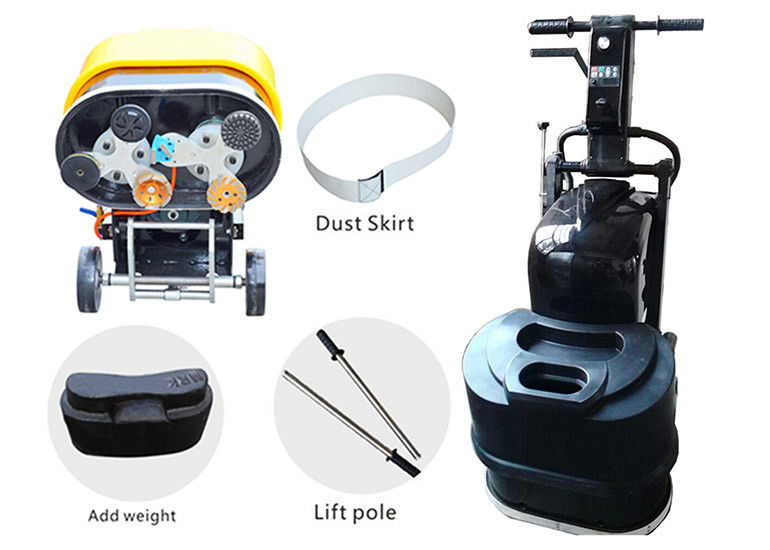

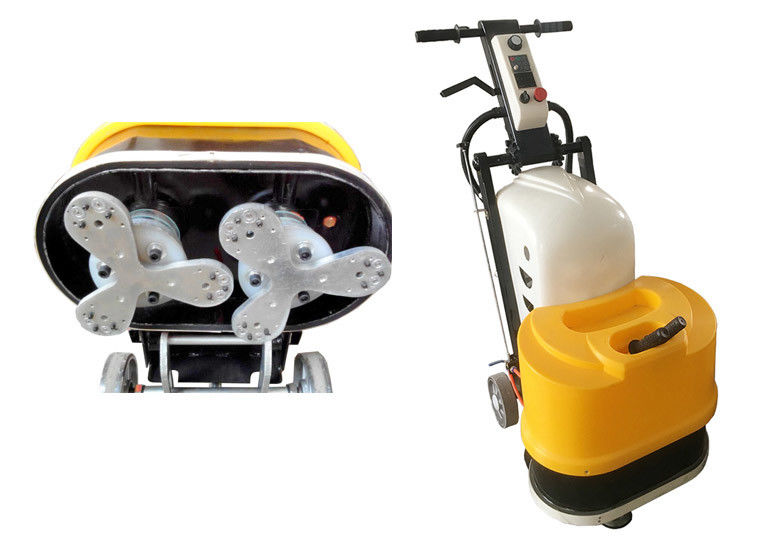

Detail picture:
Available abrasive:
Diamond resin pads R-0, R-1, R-2 for wet polishing
Diamond grinding shoes J007 / J007B for wet and dry grinding
Metal diamond grinding discs J009 for grinding the concrete terrazzo floor
Metal diamond grinding blades
Solution for terrazzo floor:
1. J010 30#, 50#, 100# for grinding.
2. R-1 50#,150#, 300#, 500# for grinding.
3. G-1 800#, 1500#, 2000#, 3000# for polishing
Packing:
Pack in carton with iron frame
Packing size: 76x66x134cm
Tag: stone floor polishing machine, concrete floor grinding machine
