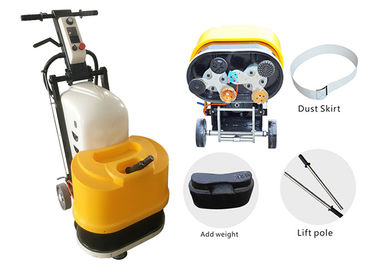

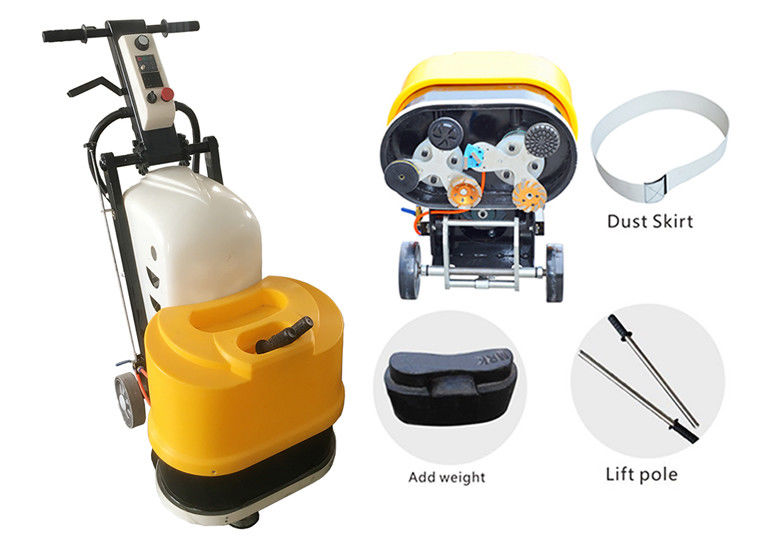

5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground
Quick Detail:
| Name |
5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground |
Application | Marble, granite, terrazzo, concrete floor |
| Type | MRK-V6-380B | Function | Leveling, polishing, grinding, renovating |
Description:
5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground designed for big industrial floor area grinding with high efficiency and competitive price.
Function and feature:
2. Rotational molding water tank.
3. Drive by gear and belt.
4. A large cross chassis is to improve the work efficiency, speed increase 180rpm/min, improve the working efficiency and make better construction effect.
5. This MRK-V6 is one of the most efficient of the 6 heads stone grinding machine currently.
6. With an external vacuum port.
7. Multifunctional grinding plate can be fixed various polishing pads and grinding blades to reduce your operation cost.
8. 5.5HP 380V / 220V 3 / 1 Phase Concrete Floor Grinder For Parking Ground can use for wet and dry.
| Model | MRK-V6-220B | MRK-V6-380B | |||
| Phase | 1 | 3 | |||
| Voltage(V) | 220V | 380V | |||
| Power(KW) | 5.5HP/4KW | 5.5HP/4KW | |||
| Inverter(HP) | 5.5HP/4KW | 5.5HP/4KW | |||
| Grinding Speed | 0-1500rpm | ||||
| Working width | 310*550mm | ||||
| Grinding Heads | 6 pieces | ||||
| Grinding plate | 2 pieces | ||||
| Water tank | 30L | ||||
| NW(KG) | 170+20 | ||||
| GW(KG) | 230 | ||||
| Packing size(CM) | 76x66x134cm | ||||

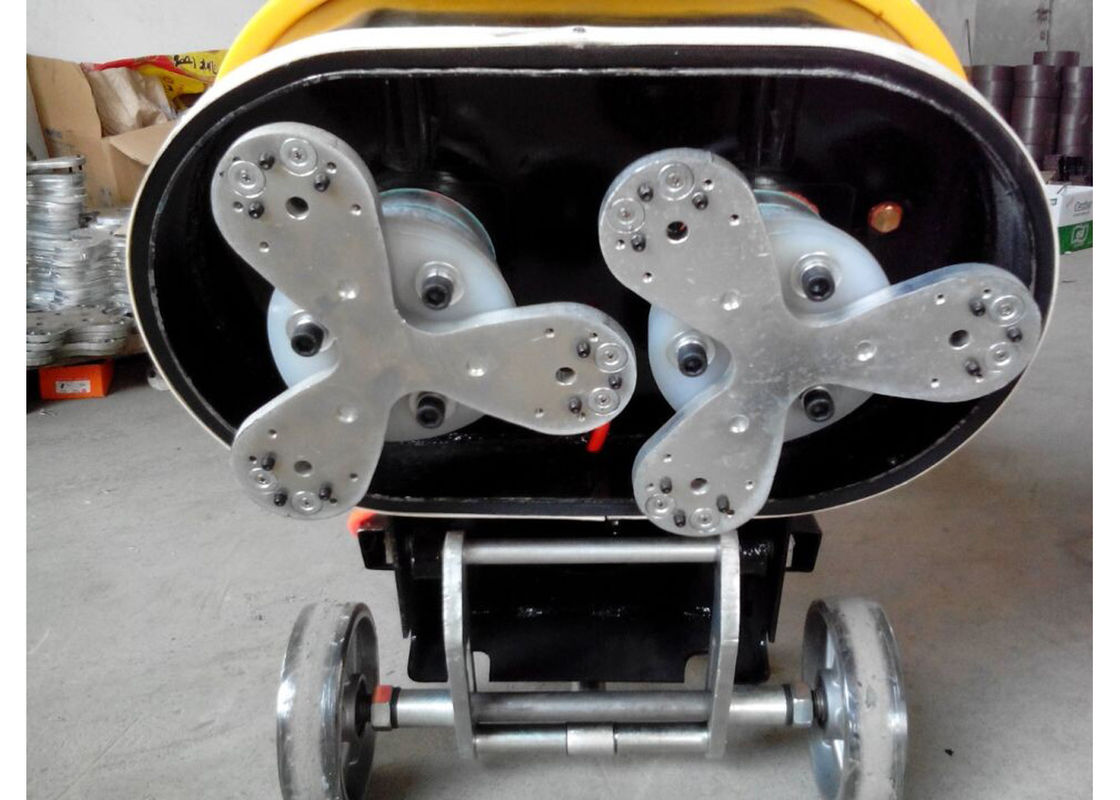

Detail picture:
Machine with 3 pieces belt
Gearbox
Available abrasive:
1.Wet polishing pad is for wet grinding and polishing the marble, granite, terrazzo and concrete floor etc...
2. Dry polishing pad is for dry grinding and polishing the marble, granite, terrazzo and concrete floor etc...
3. Renovation pad is for wet grinding and polishing the marble, granite, terrazzo and concrete floor etc...
Diamond grinding shoes for terrazzo concrete and epoxy floor.
Metallic diamond grinding discs for terrazzo concrete and epoxy floor.
Metallic diamond grinding blades for terrazzo concrete and epoxy floor.
Packing:
Carton with iron frame
Packing size: 76*65*132cm
Tag: marble granite floor polishing machine, terrazzo concrete floor grinding machine
