High Efficiency 220Volt Concrete Floor Grinder With Planetary System Construction Equipment

High Efficiency 220Volt Concrete Floor Grinder With Planetary System Construction Equipment

  • High Light

    concrete floor polishing machine

    ,

    concrete floor polisher

  • Feature
    Planetary System
  • Application
    Marble, Granite, Terrazzo, Concrete Floor
  • Voltage
    220-240V
  • Phase
    Single Phase
  • Function
    Leveling, Polishing, Grinding, Renovating
  • Work Width
    650mm
  • Place of Origin
    Made-in-China
  • Brand Name
    MERROCK
  • Certification
    CE, ISO9001,etc
  • Model Number
    S-X12-650
  • Minimum Order Quantity
    1pc
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    5-7 work days, OEM 20-25 work days
  • Payment Terms
    TT , West Union
  • Supply Ability
    50 sets/month

High Efficiency 220Volt Concrete Floor Grinder With Planetary System Construction Equipment



Planetary System Concrete Terrazzo Floor Grinder 3 Phases 380V-440V



Quick Detail:



Name 12 heads planetary floor polishing machine Application Marble, granite, terrazzo, concrete floor
Type S-X12-650 Function Leveling, polishing, grinding, renovating



Description:





Application:



●The products are specialized for marble, granite, artificial stone, waterstone etc stone floor, they are the advanced construction equipment specialize in renewing, grinding, polishing the floor.

They are high in efficiency and low in labor intensity.

● Simple operation, good construction effect, aesthetic, durable, low rate

damage and humanistic operation.

● Planetary-type device, double layer gear.

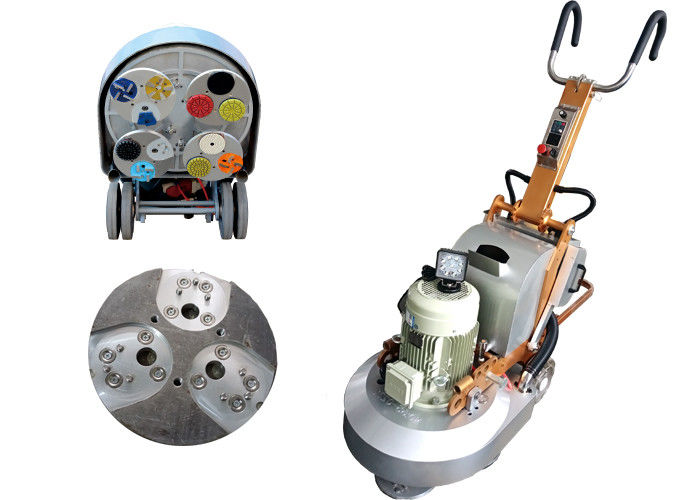

Detail picture:



Teco Motor:

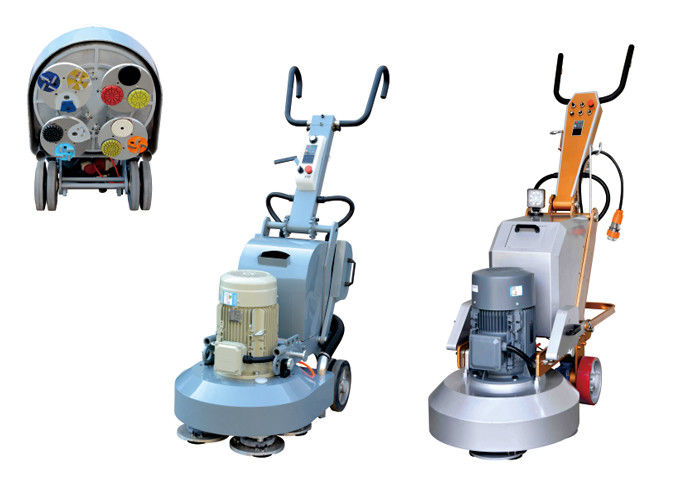

High Efficiency 220Volt Concrete Floor Grinder With Planetary System Construction Equipment 0



Panel:

High Efficiency 220Volt Concrete Floor Grinder With Planetary System Construction Equipment 1



Handle:



High Efficiency 220Volt Concrete Floor Grinder With Planetary System Construction Equipment 2



Moulding for gear box



High Efficiency 220Volt Concrete Floor Grinder With Planetary System Construction Equipment 3



Each one has only one serial Number



High Efficiency 220Volt Concrete Floor Grinder With Planetary System Construction Equipment 4

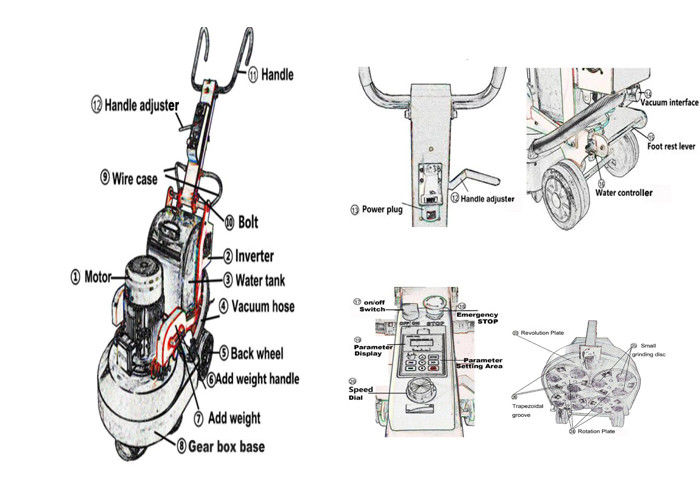

Grinder specification:



High Efficiency 220Volt Concrete Floor Grinder With Planetary System Construction Equipment 5

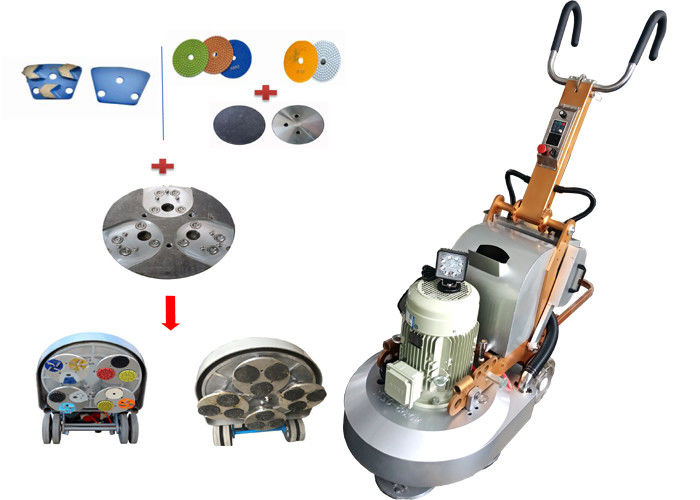

Available abrasive:



  1. Diamond resin pads
  2. Diamond grinding shoes
  3. Metal diamond grinding discs

High Efficiency 220Volt Concrete Floor Grinder With Planetary System Construction Equipment 6

Specification:



Type S6-380B S6-220B
Voltage 380V-440V 220V-240V
Motor 5.5KW/7.5HP 7.5KW/10HP 5.5KW/7.5HP 7.5KW/10HP
Inverter 7. 5KW/10HP 7. 5KW/10HP
Speed(rpm/m) 0-1500 Stepless speed regulation 0-1500 Stepless speed regulation
Body Weight 260KGs 295KGs 257KGs 290KGs
Work Width 730*350mm2 730*350mm2
Water tank 30L 30L
Grinding Discs 2pcs (6 discs) 2pcs (6 discs)




High Efficiency 220Volt Concrete Floor Grinder With Planetary System Construction Equipment 7



S-X12-650 Grinder Manual.pdf
