Concrete Stone Marble Terrazzo Floor Grinder Single Phase 220V 10HP 6 Discs

Concrete Stone Marble Terrazzo Floor Grinder Single Phase 220V 10HP 6 Discs

  • High Light

    terrazzo floor polisher

    ,

    marble floor grinder

  • Color
    Gray / White / OEM
  • Discs
    6
  • Work Width
    680 Or 730
  • Application
    Marble, Granite, Terrazzo
  • Place of Origin
    Made in China
  • Brand Name
    Merrock
  • Certification
    ISO9001,CE,MSDS,etc
  • Model Number
    S6
  • Minimum Order Quantity
    1pc
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    5-7 work days, OEM 20-25 work days
  • Payment Terms
    TT
  • Supply Ability
    50 sets/month

Concrete Stone Marble Terrazzo Floor Grinder Single Phase 220V 10HP 6 Discs



10HP Single Phase Concrete Stone Marble Terrazzo Floor Grinder



Quick Detail:



Name 6 heads floor polishing machine Application Marble, granite, terrazzo, concrete floor
Type S6 Single Phase Function Leveling, polishing, grinding, renovating





Description:

  1. 680*350mm2 large work areas improve the work efficiency.
  2. With multifunction plate include magnetic discs and Velcro discs meet different clients’ demand.
  3. Four plates, each fix 3 pieces small discs, total 6 pieces small discs one machine, each time need fix 6 pieces polishing pads.
  4. Handle is adjustable, is easy to control.
  5. Separated body make it easy for carrying.
  6. With inverter could adjust the speed from 0 to 1500 rmp.
  7. Forwarder and reverse button and emergency button
  8. Use import NSK bearing.



Application:



For stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Specification:



Type S6
Voltage 220V-240V
Motor Power 7.5KW
Inverter Power 11KW
Work Area 680*350mm2
Speed 1500rmp/m
Discs 6
Water tank 30L
Weight 280kg

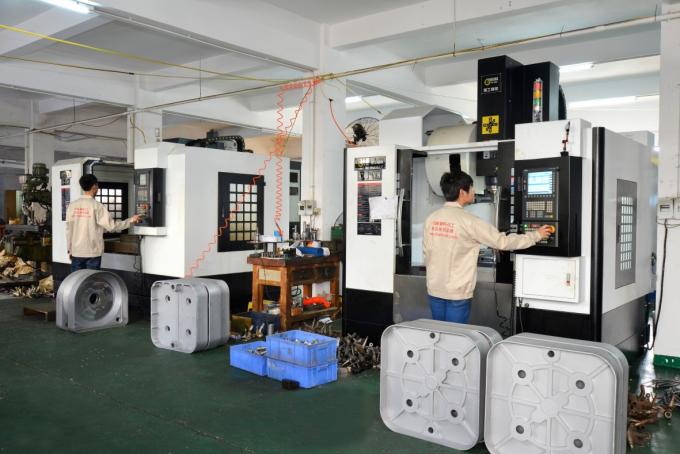

Machine for Components and Gear Tank:

Concrete Stone Marble Terrazzo Floor Grinder Single Phase 220V 10HP 6 Discs 0



Concrete Stone Marble Terrazzo Floor Grinder Single Phase 220V 10HP 6 Discs 1









Available abrasive:



  1. Diamond resin pads
  2. Diamond grinding shoes
  3. Metal diamond grinding discs











Merrock polishing machine instruction.pdf
