Granite Floor Polisher S9 22" 9 Heads Planetary Grinder

Granite Floor Polisher S9 22" 9 Heads Planetary Grinder

Products - Granite Floor Polisher
  • Heads
    9
  • Size
    22''/550
  • System
    Planetary Gear System
  • Power
    4KW/5.5KW
  • Place of Origin
    China
  • Brand Name
    Merrock
  • Certification
    CE,ISO
  • Model Number
    S9
  • Minimum Order Quantity
    1pc
  • Price
    Negotiation
  • Packaging Details
    Carton
  • Delivery Time
    5-8 work days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100pcs/Month

Granite Floor Polisher S9 22" 9 Heads Planetary Grinder

Get Price Contact Now



Granite Floor Polisher S9 22" 9 Heads Planetary Grinder



Granite Floor Polisher S9 22" 9 Heads Planetary Grinder 0


Granite Floor Polisher S9 22" 9 Heads Planetary Grinder 0

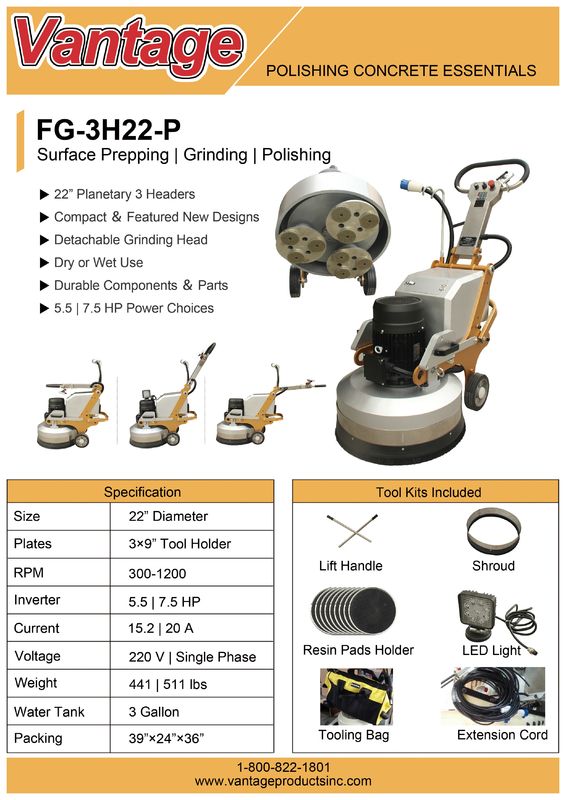

Model Specifications


Description..................................................................................FG-3H22-P Grinder

Voltage........................................................................................230V

Working Width...........................................................................Φ550MM /22 IN

Rotation Speed (rpm)..................................................................300-1200

Transmission...............................................................................Gear

Power (hp)...................................................................................7.5

Power Cord (mt)..........................................................................10 M / 33 FT

Water Tank..................................................................................11.6L/3 Gal

Weight..........................................................................................232 kg (511 lbs)

Disc Quantity................................................................................9

Inverter..........................................................................................yes



Machine Instructions



Granite Floor Polisher S9 22" 9 Heads Planetary Grinder 2

Spare Parts

Granite Floor Polisher S9 22" 9 Heads Planetary Grinder 3

Item Name Model quantities
1 Emergency Stop Switch   1
2 Start Switch   1
3 Speed Regulating Switch   1
4 Display Panel   1
5 Handle   1
6 Gear Box Cover   1
7 Motor   1
8 Add Weight Iron   2
9 R-Type Latch   2
10 Inner Hexagon M2*35 4
11 Frame Cover   1
12 Power Plug   1
13 Wire Rack   1
14 Flat Pad M10 2
15 Round Head Inner Hexagon M10*20 2
16 Flat Head Inner Hexagon M10*20 2
17 Handle Shaft Gland   2
18 Rack Side Plate   2
19 Foot Pedal   1
20 Screw of Add Weight Iron Position M12*20 2
21 Inner Hexagon M12*20 2
22 Inner Hexagon M12*40 2
23 Round Head Inner Hexagon M10*20 2
24 Inner Hexagon M8*16 4
25 Handle of Add Weight Iron   2
26 Rack Latch   2
