Stripper 220-380V Floor Polisher Machine With High Efficiency

Stripper 220-380V Floor Polisher Machine With High Efficiency

  • High Light

    Gearbox Floor Polisher Machine

    ,

    380V Floor Polisher Machine

    ,

    380V Marble Floor Polisher

  • Product Name
    Marble Floor Polisher
  • Function
    Stone Floor Polishing
  • Voltage
    220-Stripper Marble Floor Polisher
  • Application Place
    Factory, Home...
  • Automatic Grade
    Semi-automatic
  • Grinding Discs
    Grinding Discs
  • Driven System
    Gear Box
  • Single Package Size
    110X70X130 Cm
  • Place of Origin
    China
  • Brand Name
    MERROCK
  • Certification
    CE
  • Model Number
    V12-550
  • Minimum Order Quantity
    1 Piece
  • Price
    USD1500/PC
  • Packaging Details
    Export Carton & Iron Frame
  • Delivery Time
    5-10 days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    450pcs/month

Stripper 220-380V Floor Polisher Machine With High Efficiency

Trade Floor Stripper And Polisher Floor-Polisher Machine High-Efficiency



MERROCK Profile.pdf



Application:

Floor mill is mainly used for ground grinding treatment, it can effectively polish terrazzo, concrete surface layer and epoxy mortar layer and old epoxy floor.



Functions:

1. Remove the mortar surface defects, smooth the high plaque;
2. Remove the paint, polyurethane, epoxy resin, etc.;

3. Polishing of epoxy intermediate layer; Smooth rough surfaces or trowel marks;

4. Grinding area of floor grinding machine: relatively speaking, the larger the grinding area of the machine is, the higher the flatness of the construction ground is, but it is also the increase of grinding range that reduces the leveling efficiency of the ground height difference.



Feature:

1. Aluminum die-casting gear box;
2. Global well-known brands motor and inverter;
3. External vacuum port;
4. Components through precision lathe processing;

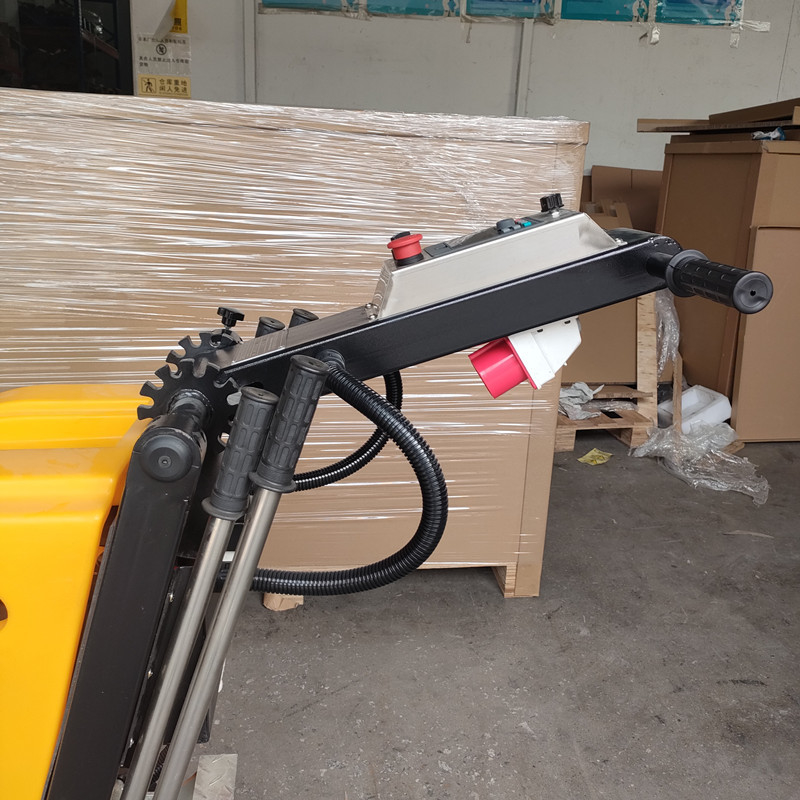

5. With emergency stop button and reverse button on panel;
6. Multifunctional grinding discs can be fixed various polishing pads to reduce the cost.

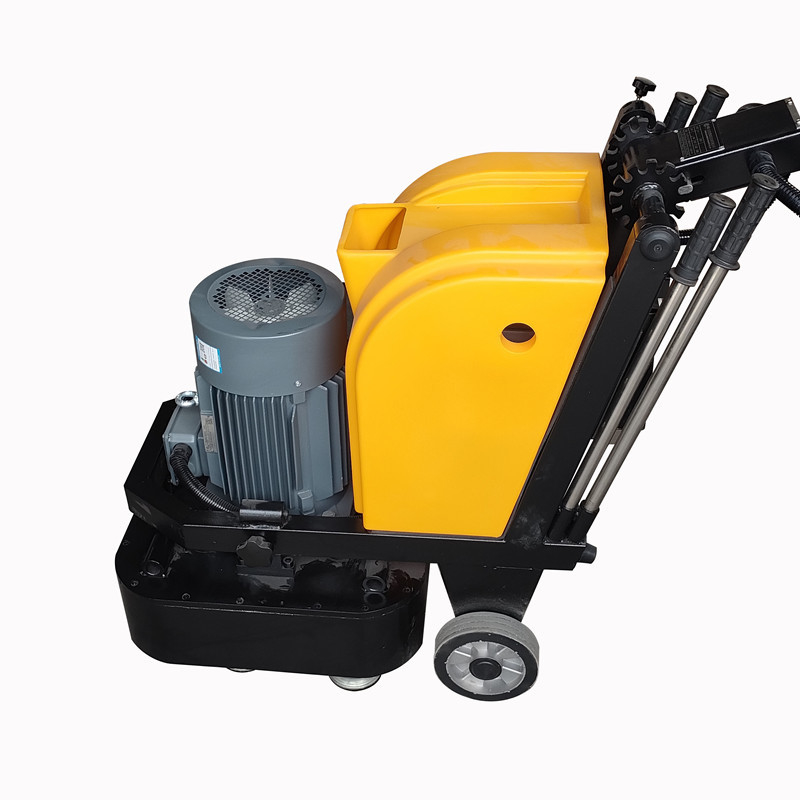

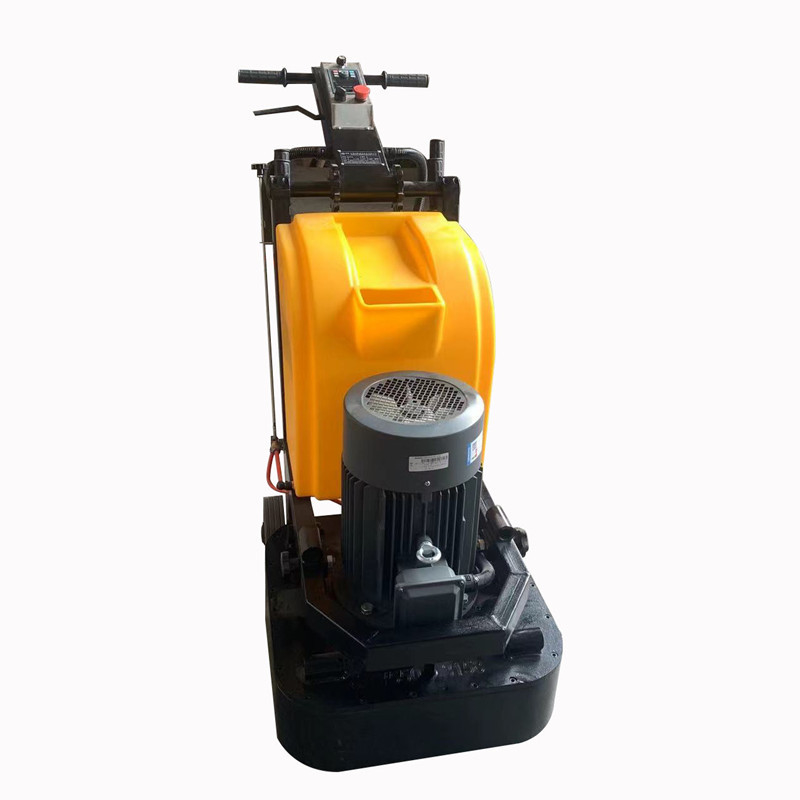

Stripper 220-380V Floor Polisher Machine With High Efficiency 0



Stripper 220-380V Floor Polisher Machine With High Efficiency 1

Stripper 220-380V Floor Polisher Machine With High Efficiency 2

Parameters:



Item Data
Model V12-550
Voltage 380V
Motor 10HP
Inverter 15HP
Speed 0-1500rpm
Application place Factory, home...
Power Source Electric
Heads 12pcs
Weight 270kgs





Application & Function:



  • Core component is made by imported mould,ensuring the performance and stability of product.
  • Strong power, large working area, high efficiency, low in cost(save 20% material consumption).
  • The necessary top brand equipment for large area project and ideal choice for strength construction cooperation.
  • Separable add weight makes the machine easy for transport. V12 is your best choice to save time, save worry and save money in condition of lacking in technician, raising wage of labors at present.
  • With a vacuum outlet for double vacuum dust device. It is available for both wet and dry grinding.
  • V12-510 is a cost-effective, economic and practical type, the motor is also selected the world top three brands -WEG motor or Siemens electric motor.

The manufacturing process of PCD tools mainly includes two stages:

① Manufacturing of PCD composite sheet:

PCD composite sheet is made of natural or synthetic diamond powder and binder (including cobalt, nickel and other metals) in a certain proportion at high temperature (1000~2000C), sintered under high pressure (50,000 to 100,000 atmospheres). During the sintering process, due to the addition of the bonding agent, a bonding bridge with TiC, SiC, Fe, Co, Ni, etc. as the main components is formed between the diamond crystals, and the diamond crystals are embedded in the framework of the bonding bridge in the form of covalent bonds. Usually the composite sheet is made into a disc with a fixed diameter and thickness, and the sintered composite sheet needs to be ground and polished and other corresponding physical and chemical treatments.

②Processing of PCD blades: The processing of PCD blades mainly includes the steps of cutting the composite sheet, welding the blade, and sharpening the blade.
