Fruit Vacuum Cooling Machine

Fruit Vacuum Cooling Machine

  • Fruit Vacuum Cooling Machine
  • Fruit Vacuum Cooling Machine
  • Fruit Vacuum Cooling Machine
Fruit Vacuum Cooling Machine
Product Details:
Place of Origin: Made in China
Brand Name: Merrock
Certification: ISO9001,CE,MSDS,etc
Model Number: HVC1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 5-7 work days, OEM 20-25 work days
Payment Terms: TT , West Union
Contact Now
Detailed Product Description
Material: Steel Usage: Cooling And Conservation
High Light:

vacuum cooler


vacuum cooling system


 Fruit Vacuum Cooling Machine


Quick Detail:


Name Vacuum Cooling Machine Application Agricultural Products
Model HVC1 Function Best for cool lettuce, cabbage spinach, sweetcorn, strawberry, mushroom and so on
Main Parts Vauum pump, Refrig comp, Air cmpressor, Cond fan



Main Features


1. Wongchang vacuum pump
2. Motor accurated sliding door or vertical lifting door
3. Frascold Piston Compressor
4. Mild steel chamber with high quality epoxy coating inside and outside
5. Air cooling condenser
6. R404a refrigerant
7. Best for cool lettuce, cabbage spinach,sweetcorn,strawberry, mushroom and so on





HVC1 Vacuum cooler


Item Model QTY POWER Total power
Vauum pump WVOP-0800F 1 11KW 11KW
Refrig comp W40-168Y 1 18KW 18KW
Air cmpressor S1A1 1 0.75KW 0.75KW
Cond fan   4 0.75KW 3KW





1. Cools large volumes and weights of produce rapidly

2. Uniform temperature easily obtained

3. Optional moisture enhancement systems can reduce weight loss

4. Sanitizing agents can be incorporated in moisture enhancement systems

5. High volume users can achieve low unit costs with correctly matched equipment





1. Larger sizes (over 6 tons) can present challenges in relocation

2. Initial cost can be high

3. Moisture enhancement systems cannot be used on some packaged products

4. Not suitable for dense produce

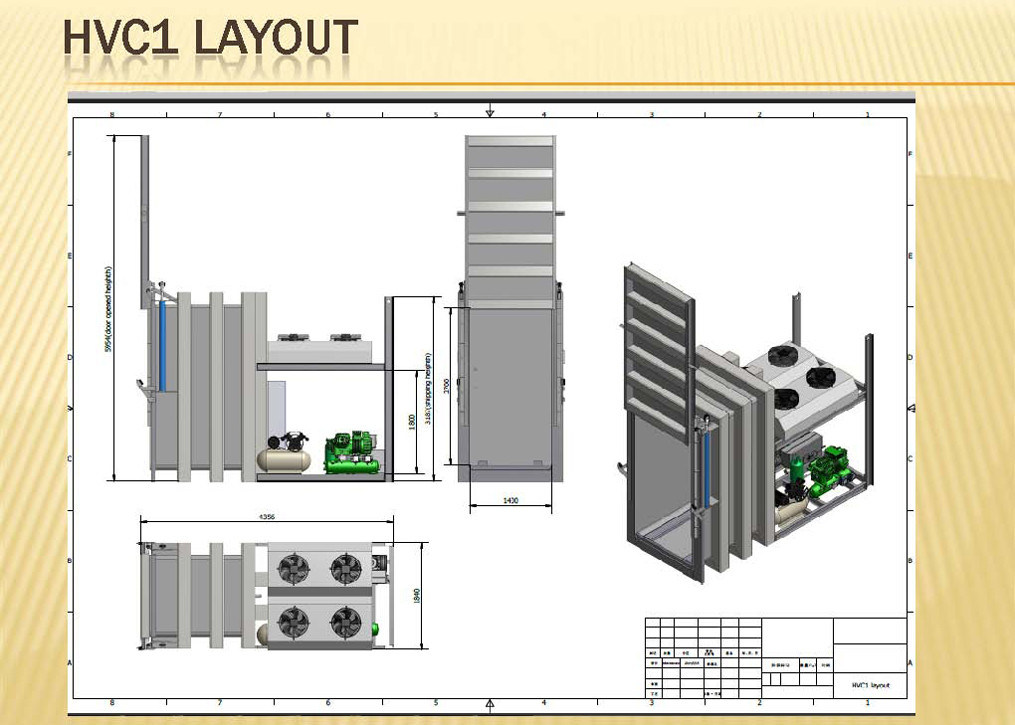

Product Layout:

Fruit Vacuum Cooling Machine 0
