12 Heads 11HP 380V Granite Floor Polisher With Separated Body

12 Heads 11HP 380V Granite Floor Polisher With Separated Body

  • High Light

    11HP 380V Granite Floor Polisher

    ,

    Granite Floor Polisher With Separated Body

    ,

    12 Heads Granite Floor Grinding Machine

  • Place of Origin
    Made in China
  • Brand Name
    Merrock
  • Certification
    ISO9001 2008
  • Model Number
    MRK-V12-565
  • Minimum Order Quantity
    1 piece
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    5-7 work days, OEM 20-25 work days
  • Payment Terms
    TT , West Union
  • Supply Ability
    50 sets/month

12 Heads 11HP 380V Granite Floor Polisher With Separated Body

12 Heads 11HP 380V Granite Floor Polisher , Terrazzo Floor Polishing Machine

MERROCK Profile.pdf



12 Heads 11HP 380V Granite Floor Polisher Terrazzo Floor Polishing Machine





Quick Detail:



Name 12 heads Granite Floor Polisher Application Marble, granite, terrazzo, concrete floor
Type MRK-V12 Function Leveling, polishing, grinding, renovating





Description:



  1. Whole gearbox run promotes the life time and security of machine; large work areas improve the work efficiency.
  2. Separated body make it easy for carrying.
  3. With multifunction plate include magnetic discs and Velcro discs meet different clients’ demand.
  4. Four plates, each fix 3 pieces small discs, total 12 pieces small discs one machine, each time need fix 12 pieces polishing pads.
  5. Handle is adjustable, is easy to control.
  6. With inverter could adjust the speed from 0 to 1500 rmp.
  7. Use import NSK bearing.





Application:



For stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...





Specification:



Type MRK-V12-565
Power 11hp/7.5KW
Voltage 380V-440V
Inverter 15HP
Speed 0-1500 rpm
Grinding discs 12pcs
Work width 565mm
Weight 270kg
Water tank 30L

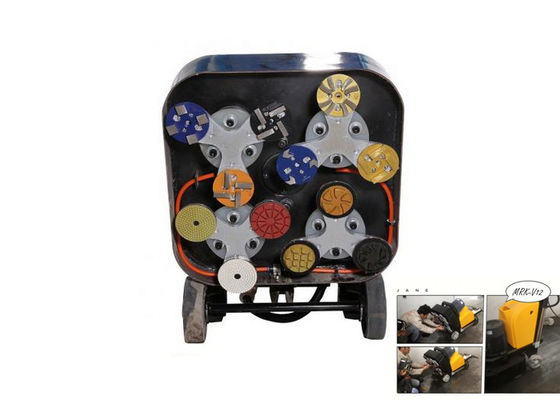

Detail picture:



12 Heads 11HP 380V Granite Floor Polisher With Separated Body 0







Available abrasive:



  1. Diamond resin pads
  2. Diamond grinding shoes
  3. Metal diamond grinding discs





Packing:



12 Heads 11HP 380V Granite Floor Polisher With Separated Body 1



The manufacturing process of PCD tools mainly includes two stages:

① Manufacturing of PCD composite sheet:

PCD composite sheet is made of natural or synthetic diamond powder and binder (including cobalt, nickel and other metals) in a certain proportion at high temperature (1000~2000C), sintered under high pressure (50,000 to 100,000 atmospheres). During the sintering process, due to the addition of the bonding agent, a bonding bridge with TiC, SiC, Fe, Co, Ni, etc. as the main components is formed between the diamond crystals, and the diamond crystals are embedded in the framework of the bonding bridge in the form of covalent bonds. Usually the composite sheet is made into a disc with a fixed diameter and thickness, and the sintered composite sheet needs to be ground and polished and other corresponding physical and chemical treatments.

② Processing of PCD blades: The processing of PCD blades mainly includes the steps of cutting the composite sheet, welding the blade, and sharpening the blade.
