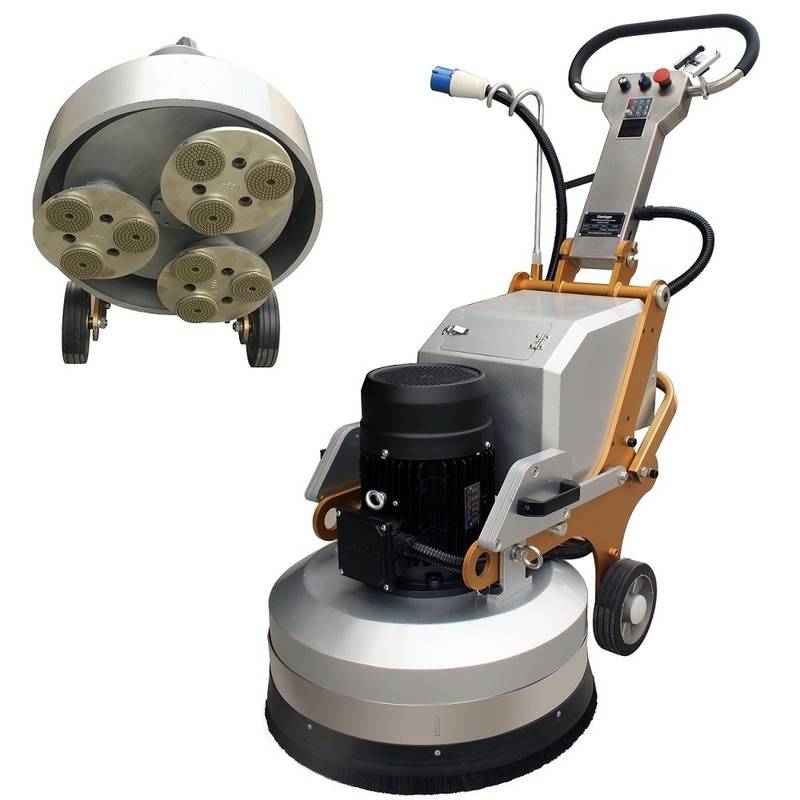

Marble Floor Polisher 9 Heads Single Phase 4KW Planetary Grinder

Marble Floor Polisher 9 Heads Single Phase 4KW Planetary Grinder

  • High Light

    Single Phase Marble Floor Polisher

    ,

    4KW Planetary Marble Floor Polisher

    ,

    9 Heads Planetary Floor Polisher

  • Product Name
    9 Heads Single Phase 4KW Planetary System Marble Floor Polisher
  • Automatic Grade
    Manual
  • Power
    5.5HP/4KW
  • Voltage
    220V/240V 380V/440V
  • Heads
    9 Pieces
  • Autorotation Rate
    0-1250rpm
  • Revolution Speed
    0-320 Rpm
  • Water Tank
    10.6L
  • Place of Origin
    China
  • Brand Name
    Merrock
  • Certification
    CE
  • Model Number
    S9-X-550
  • Minimum Order Quantity
    1
  • Price
    USD1200-1450/PC
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    7-20 days
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

Marble Floor Polisher 9 Heads Single Phase 4KW Planetary Grinder



9 Heads Single Phase 4KW Planetary System Marble Floor Polisher



Quick Detail:



Name

9 Heads Single Phase 4KW Planetary System Marble Floor Polisher

Application Marble, granite, terrazzo, concrete floor
Type S-X9-550 Function grinding, renovating, Leveling, polishing,





Function and feature:


1. Application and function: Stone leveling, stone grinding, concrete grinding, concrete polishing, epoxy grinding, high-speed railway beam surface grinding, also apply to remove the old coat etc., very high efficiency, best effect.
2. 22 inch 3 grinding plates, 9 heads.

3. Small machine with new function.

4. Available in wet and dry.

5. Durable grinding parts.

6. Option power in 4KW and 5.5KW

7. Option voltage in 380V and 220V



Specification:

Model S9-X-550
Phase/Voltage 1/220V
Power 5.5HP/4KW 7.5HP/5.5KW
Inverter 5.5HP/4KW 7.5HP/5.5KW
Autorotation rate 0-1250rpm
Revolution speed 0-320 rpm
Work width 550*550mm
Heads 9 pieces
Grinding plate 3 pieces
Water tank 30L
NW(KG) 200 232
GW(KG) 238 276
Packing size(CM) 93x62x93cm 98x62x93cm


Detail picture:



Marble Floor Polisher 9 Heads Single Phase 4KW Planetary Grinder 0

Marble Floor Polisher 9 Heads Single Phase 4KW Planetary Grinder 1

Marble Floor Polisher 9 Heads Single Phase 4KW Planetary Grinder 2







Available abrasive:



Diamond resin pads (Dry polishing pad G-2)



Marble Floor Polisher 9 Heads Single Phase 4KW Planetary Grinder 3



Diamond grinding shoes (J007)



Marble Floor Polisher 9 Heads Single Phase 4KW Planetary Grinder 4



Metal diamond grinding discs (J013)



Marble Floor Polisher 9 Heads Single Phase 4KW Planetary Grinder 5

Metal diamond grinding blades (J008)



Marble Floor Polisher 9 Heads Single Phase 4KW Planetary Grinder 6







Packing:



Wooden case

Size: 93x62x93cm



Marble Floor Polisher 9 Heads Single Phase 4KW Planetary Grinder 7
