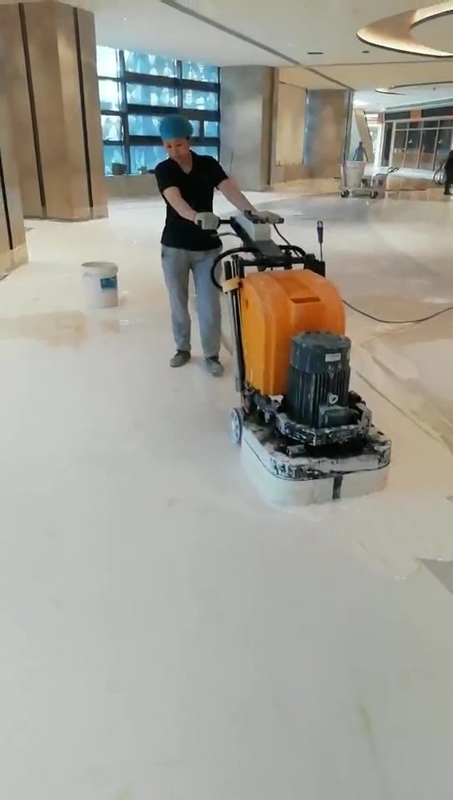

Multifuction 15HP 710MM Marble Floor Polishing Machine With 12 Heads

Multifuction 15HP 710MM Marble Floor Polishing Machine With 12 Heads

  • High Light

    710MM Marble Floor Polishing Machine

    ,

    15HP Marble Floor Polishing Machine

    ,

    Multifunction Marble Floor Grinder

  • Product Name
    Marble Floor Polisher
  • Function
    Stone Floor Polishing
  • Rotating Speed
    0-1500rpm
  • Working Width
    710*710MM
  • Certificate
    ISO, CE
  • Voltage
    380V/220V
  • Driven System
    Gear Box
  • Weight
    375KGS
  • Place of Origin
    China
  • Brand Name
    MERROCK
  • Certification
    CE
  • Model Number
    V12-710
  • Minimum Order Quantity
    1 Piece
  • Price
    USD1500/PC
  • Packaging Details
    Export Carton & Iron Frame
  • Delivery Time
    5-10 days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    450pcs/month

Multifuction 15HP 710MM Marble Floor Polishing Machine With 12 Heads

Multifuction 15HP 710mm Marble Floor Polisher With 12 Heads





MERROCK Profile.pdf

Multifuction 15HP 710mm Marble Floor Polisher Terrazzo Polishing With 12 Heads





Feature:



1. Aluminum die-casting gear box

2. Global well-known brands motor and inverter

3. External vacuum port

4. Components through precision lathe processing

5. With emergency stop button and reverse button on panel

6. Multifunctional grinding discs can be fixed various polishing pads to reduce the cost










Multifuction 15HP 710MM Marble Floor Polishing Machine With 12 Heads 0













Parameters:



Item Data
Model V12-710
Voltage 380V
Motor 15HP
Inverter 15HP
Speed 0-1500rpm
Work width 710*710mm
Water tank 30L
Heads 12pcs
Weight 375kgs





Application & Function:



  • Core component is made by imported mould,ensuring the performance and stability of product.
  • Strong power, large working area, high efficiency, low in cost(save 20% material consumption).
  • The necessary top brand equipment for large area project and ideal choice for strength construction cooperation.
  • Separable add weight makes the machine easy for transport. V12 is your best choice to save time, save worry and save money in condition of lacking in technician, raising wage of labors at present.
  • With a vacuum outlet for double vacuum dust device. It is available for both wet and dry grinding.
  • V12-710 is a cost-effective, economic and practical type, the motor is also selected the world top three brands -WEG motor or Siemens electric motor.

The manufacturing process of PCD tools mainly includes two stages:

① Manufacturing of PCD composite sheet:

PCD composite sheet is made of natural or synthetic diamond powder and binder (including cobalt, nickel and other metals) in a certain proportion at high temperature (1000~2000C), sintered under high pressure (50,000 to 100,000 atmospheres). During the sintering process, due to the addition of the bonding agent, a bonding bridge with TiC, SiC, Fe, Co, Ni, etc. as the main components is formed between the diamond crystals, and the diamond crystals are embedded in the framework of the bonding bridge in the form of covalent bonds. Usually the composite sheet is made into a disc with a fixed diameter and thickness, and the sintered composite sheet needs to be ground and polished and other corresponding physical and chemical treatments.

②Processing of PCD blades: The processing of PCD blades mainly includes the steps of cutting the composite sheet, welding the blade, and sharpening the blade.
