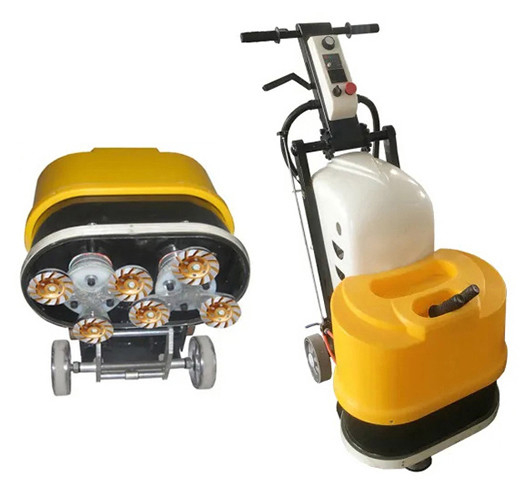

6 Heads 310x550mm Terrazzo Floor Grinder 240V 4KW

6 Heads 310x550mm Terrazzo Floor Grinder 240V 4KW

6 Heads 310x550mm Terrazzo Floor Grinder 240V 4KW
video
6 Heads 310x550mm Terrazzo Floor Grinder 240V 4KW
Product Details:
Place of Origin: China
Brand Name: Merrock
Certification: CE
Model Number: MRK-V6-220B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 30
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 20
Contact Now
Detailed Product Description
Product Name: 6 Heads 4KW Terrazzo Floor Grinder 220V Stone Concrete Floor Grinding Machine Voltage: 220V/240V 380V/440V
Power: 5.5HP/4KW Working Width: 310*550mm
Rotating Speed: 0-1500RPM Inverter: 4KW
Color: Yellow/White Water Tank: 30L
Type: Surface Polished, Terrazzo, Marble, Granite, Concrete Floor Grinding And Polishing Gross Weight: 230KG
High Light:

310x550mm Terrazzo Floor Grinder

,

6 Heads Terrazzo Floor Grinder

,

6 Heads Terrazzo Floor Grinding Machine

Stone Concrete 240V 6 Heads 4KW Marble Terrazzo Floor Grinder

MERROCK Profile.pdf



Quick Detail:



Name

6 Heads 4KW Terrazzo Floor Grinder 220V 5.5HP Floor Grinding Machine For Stone Concrete

Application Marble, granite, terrazzo, concrete floor
Type MRK-V6-220B Function Leveling, polishing, grinding, renovating





Description:



1. Stone Concrete 240V 6 Heads 4KW Marble Terrazzo Floor Grinder designed for big industrial floor area grinding with high efficiency and competitive price.
2. With an external vacuum port.
3. Folding hande and integration control panel, to make operation easy and safe.
4. Big power motor with frequency conversion, to meet Frequent and long time use requirements for industrial floor grinding.
5. Automatic pressure adjustment control system, to meet the needs of different operation processes.
6. Can be equipped with vacuum equipment, realization of dry and wet working mode.
7. Knob-style water switch, water spray system from the center of pad holder, an effective solution to the diamond disc wear and
tear and marks generated by grinding, greatly improve work efficiency.
8. Multifunctional pad holder can install all kinds of diamond tools, reduce your operation cost as much as possible.
9. Scope: Grinding for concrete, granite and marble floor.




Application:



For marble, granite, terrazzo floor leveling polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy floor etc...



Video:




Model MRK-V6-220B MRK-V6-380B
Phase 1 3
Voltage 220V 380V
Power 5.5HP/4KW 5.5HP/4KW
Inverter 5.5HP/4KW 5.5HP/4KW
Speed 0-1500rpm
Work width 310*550mm
Heads 6 pieces
Grinding plate 2 pieces
Water tank 30L
NW(KG) 170+20
GW(KG) 230
Packing size(CM) 76x66x134cm





Detail picture:



6 Heads 310x550mm Terrazzo Floor Grinder 240V 4KW 0









Available abrasive:



Diamond resin pads



1. Wet polishing pad is for wet grinding and polishing marble, granite, terrazzo and concrete floor.

2. Dry polishing pad is for dry grinding and polishing marble, granite, terrazzo and concrete floor.

3. Novation pad is for wet grinding and polishing marble, granite, terrazzo and concrete floor.





Metallic diamond grinding blades for concrete, terrazzo and concrete floor grinding.

PCD, J007, J013 is good for removing the old epoxy.





Packing:



Carton with iron frame

76*65*132cm

6 Heads 310x550mm Terrazzo Floor Grinder 240V 4KW 1



V6-V12 concrete grinder.pdf

What is Diamond Grinding?

Polished concrete is a craft that tends to be misunderstood. Often when people hear about polished concrete, they assume it is achieved through the application of a topical product or that it defines a cleaning process that makes the floor appear shiny. However, neither of these accurately describe the process of mechanically refined polished concrete. Polished concrete is a detailed, labor and skill-intensive process that requires highly specialized tooling and training to produce. One of the numerous tools required in this process is a grinder with diamond tooling.


Nowadays, most of the concrete grinding is performed by diamonds. This process is called as “diamond grinding”. Grinding concrete with diamond tooling is a mechanical process that renews worn or irregular concrete surfaces. It uses specialized tooling to produce a smoother surface and reduce concrete failures such as joint faults, warped slabs, and traffic wear. Due to the power needed to grind concrete, the diamond tools can quickly overheat during a wet grind process. Overheating is prevented by cooling the machine with water. However, this means a slurry is produced from the grinding and water excreted but the slurry is removed and disposed of. Dry grinding is also done with an air-cooled system. Both options can achieve the same desired result.

Tag: terrazzo floor polishing machine, concrete floor grinder
