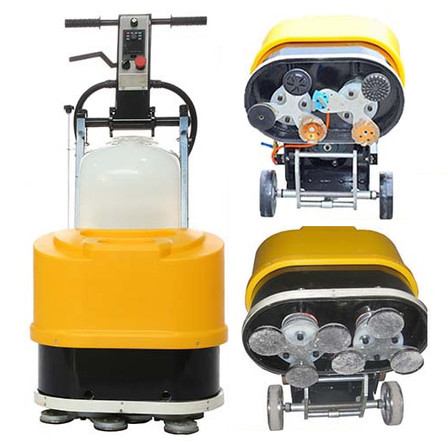

220V 5.5HP Terrazzo Floor Grinding Machine For Factory

220V 5.5HP Terrazzo Floor Grinding Machine For Factory

220V 5.5HP Terrazzo Floor Grinding Machine For Factory
video
220V 5.5HP Terrazzo Floor Grinding Machine For Factory
Product Details:
Place of Origin: China
Brand Name: Merrock
Certification: CE
Model Number: MRK-V6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1300-1500/PC
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 30
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 20
Contact Now
Detailed Product Description
Product Name: 5.5HP Single Phase Terrazzo Grinding Machine 220V Concrete Floor Grinding Machine Voltage: 220V/240V 380V/440V
Motor: 5.5HP Inverter: 4KW
Rotating Speed: 0-1500RPM Working Width: 310*550mm
Color: Yellow/White Water Tank: 30L
Packing Size (l*w*h): 760*650*1320mm Application: Concrete Terrazzo Marble,Concrecte Floor Grinder,Grinding,Dry Concrete Floor Polishing
High Light:

220V 5.5HP Terrazzo Floor Grinding Machine

,

Terrazzo Floor Grinding Machine For Factory

,

Terrazzo Floor Grinder For Factory

Single Phase 220V 5.5HP Concrete Terrazzo Floor Grinding Machine For Factory Ground

MERROCK Profile.pdf



Quick Detail:



Name

5.5HP Single Phase Terrazzo Grinding Machine 220V Concrete Floor Grinding Machine

Application Marble, granite, terrazzo, concrete floor
Type MRK-V6 Function Leveling, polishing, grinding, renovating





Description:



1. 5.5HP Single Phase Terrazzo Grinding Machine 220V Concrete Floor Grinding Machine designed for big industrial floor area grinding with high efficiency and competitive price
2. Beautiful and generous appearance design
3. Folding handle and integration control panel, to make operation easy and safe
4. Big power motor with frequency conversion, to meet Frequent and long time use requirements for industrial floor grinding
5. Automatic pressure adjustment control system, to meet the needs of different operation processes
6. Can be equipped with vacuum equipment, realization of dry and wet working mode
7. Knob-style water switch, water spray system from the center of pad holder, an effective solution to the diamond discs wear and
tear and marks generated by grinding, greatly improve work efficiency
8. Multifunctional pad holder can install all kinds of diamond tools, save your operation cost as much as possible
9. Application: Grinding for concrete, granite and marble floor




Application:



For marble, granite, terrazzo and concrete leveling, polishing and grinding, also apply to remove the old coat of epoxy etc...



Video:




Model MRK-V6-220B MRK-V6-380B
Phase 1 3
Voltage 220V 380V
Power 5.5HP/4KW 5.5HP/4KW
Inverter 5.5HP/4KW 5.5HP/4KW
Speed 0-1500rpm
Work width 310*550mm
Heads 6 pieces
Grinding plate 2 pieces
Water tank 30L
NW(KG) 170+20
GW(KG) 230
Packing size(CM) 76x66x134cm





Detail picture:



220V 5.5HP Terrazzo Floor Grinding Machine For Factory 0









Available abrasive:



Diamond resin pads



1. Wet polishing pad is for wet grinding and polishing marble, granite, terrazzo and concrete floor.

2. Dry polishing pad is for dry grinding and polishing marble, granite, terrazzo and concrete floor.

3. Novation pad is for wet grinding and polishing marble, granite, terrazzo and concrete floor.

220V 5.5HP Terrazzo Floor Grinding Machine For Factory 1



Diamond grinding shoes for terrazzo concrete epoxy floor-J007, J007B.

Metal diamond grinding discs for terrazzo concrete epoxy floor-J008, J009, J010.

Metal diamond grinding blades for terrazzo concrete epoxy floor-J010A, J011, J013.



220V 5.5HP Terrazzo Floor Grinding Machine For Factory 2





Packing:



220V 5.5HP Terrazzo Floor Grinding Machine For Factory 3

What is Diamond Grinding?

Polished concrete is a craft that tends to be misunderstood. Often when people hear about polished concrete, they assume it is achieved through the application of a topical product or that it defines a cleaning process that makes the floor appear shiny. However, neither of these accurately describe the process of mechanically refined polished concrete. Polished concrete is a detailed, labor and skill-intensive process that requires highly specialized tooling and training to produce. One of the numerous tools required in this process is a grinder with diamond tooling.


Nowadays, most of the concrete grinding is performed by diamonds. This process is called as “diamond grinding”. Grinding concrete with diamond tooling is a mechanical process that renews worn or irregular concrete surfaces. It uses specialized tooling to produce a smoother surface and reduce concrete failures such as joint faults, warped slabs, and traffic wear. Due to the power needed to grind concrete, the diamond tools can quickly overheat during a wet grind process. Overheating is prevented by cooling the machine with water. However, this means a slurry is produced from the grinding and water excreted but the slurry is removed and disposed of. Dry grinding is also done with an air-cooled system. Both options can achieve the same desired result.

V6-V12 concrete grinder.pdf



Tag: terrazzo floor polishing machineconcrete floor polishing machine
