4KW 240V Granite Floor Grinder With Folding Handle

4KW 240V Granite Floor Grinder With Folding Handle

4KW 240V Granite Floor Grinder With Folding Handle
video
4KW 240V Granite Floor Grinder With Folding Handle
Product Details:
Place of Origin: China
Brand Name: Merrock
Certification: CE
Model Number: MRK-V6-220B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 30
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 20
Contact Now
Detailed Product Description
Product Name: 230V Concrete Floor Grinder Voltage: 220V/240V 380V/440V
Power(HP): 5.5HP/4KW Work Width: 310*550mm
Inverter: 4KW Water Tank: 30L
Rotating Speed: 0-1500RPM Add Weight: 20KG
Weight: 230KG
High Light:

Granite Floor Grinder 4KW

,

240V Granite Floor Grinder

,

Granite Floor Polisher 4KW

4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V

MERROCK Profile.pdf







Description:



1. 4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V designed for big industrial floor area grinding with high efficiency and competitive price.
2. Drive by gear and belt.
3. Folding hande and integration control panel, to make operation easy and safe.
4. A large cross chassis is to improve the work efficiency, speed increase 180rpm/min, improve the working efficiency and make better construction effect.
5. This MRK-V6 is one of the most efficient of the 6 heads stone grinding machine currently.
6. Can be equipped with vacuum equipment, realization of dry and wet working mode.
7. Knob-style water switch, water spray system from the center of pad holder, an effective solution to the diamond disc wear and
tear and marks generated by grinding, greatly improve work efficiency.
8. Multifunctional pad holder can install all kinds of diamond tools, reduce your operation cost as much as possible.
9. Scope: Grinding for concrete, granite and marble terrazzo floor in wet and dry.




Application:



Stone leveling, stone grinding, concrete grinding, concrete polishing, epoxy grinding, high-speed railway beam surface grinding, also apply to remove the old coat etc.




Model MRK-V6-220B MRK-V6-380B
Phase 1 3
Voltage 220V 380V
Power 5.5HP/4KW 5.5HP/4KW
Inverter 5.5HP/4KW 5.5HP/4KW
Speed 0-1500rpm
Work width 310*550mm
Heads 6 pieces
Grinding plate 2 pieces
Water tank 30L
NW(KG) 170+20
GW(KG) 230
Packing size(CM) 76x66x134cm



Quick Detail:



Name 4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V Application Marble, granite, terrazzo, concrete floor
Type MRK-V6-220B Function Leveling, polishing, grinding, renovating

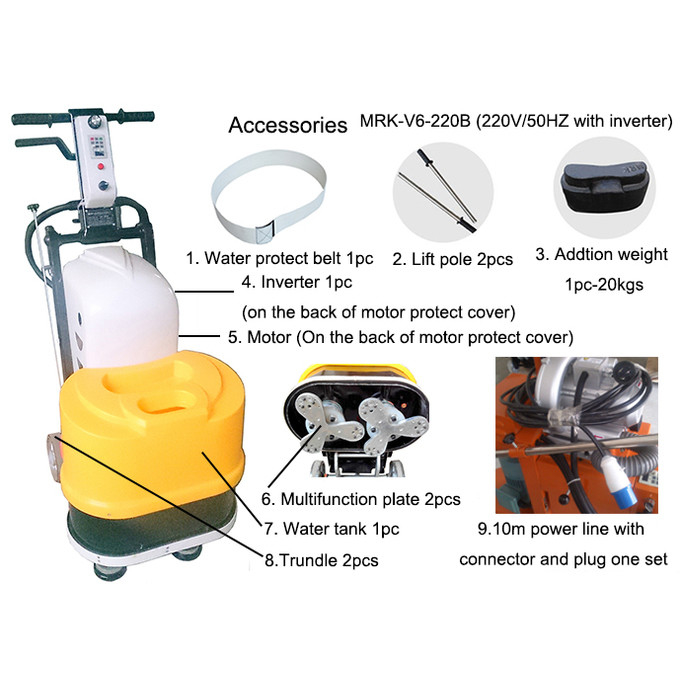

Detail picture:



4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V with 2 pieces lift pole, 1 piece additional weight



4KW 240V Granite Floor Grinder With Folding Handle 0







Available abrasive:



Diamond resin pads



1. Wet polishing pad for wet grinding and polishing the marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry polishing the granite, stone, marble, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing the marble, granite, terrazzo and concrete floor.



4KW 240V Granite Floor Grinder With Folding Handle 1

Diamond grinding shoes for terrazzo, concrete and epoxy floor

Metal diamond grinding discs for terrazzo, concrete and epoxy floor

Metal diamond grinding blades for terrazzo, concrete and epoxy floor



4KW 240V Granite Floor Grinder With Folding Handle 2





Packing:



Carton with iron frame



4KW 240V Granite Floor Grinder With Folding Handle 3



V6-V12 concrete grinder.pdf



Tag: marble floor polishing machineterrazzo floor grinding machine



The Characteristics of Diamond Polishing Pads

The diamond polishing pad is a flexible processing tool made of diamond as abrasive and combined with composite materials. The back is glued with Velcro, which is stuck on the joint of the grinder for grinding and polishing. It is used for grinding stone, ceramics, glass, and floor tiles, etc. And it can also be used for processing, repair and renovation of marble, concrete, terrazzo, artificial stone, glazed tiles, and vitrified tiles.

The diamond polishing pad has the advantages of strong grinding force, durability, good flexibility and good gloss. It is an ideal stone polishing tool. The processing process is divided into coarse grinding, fine grinding and polishing.


The characteristics of diamond polishing pads

Made of special material

It is a flexible material made of diamond as abrasive, combined with composite materials and processed. Therefore, after it is made, due to the particularity of the material, it has very strong performance and characteristics. so that it can be used to complete the task in many field.

Wide range of applications

It is widely used in all aspects of the construction industry. At present, it is mainly used for stone polishing, various floor treatment, etc, but also for processing marble, terrazzo, cement pavement, countertops, etc. The scope of application getting wider and wider, and the effect is very obvious.

Good performance

Due to the special materials, it has the advantages of strong grinding force, good durability, good softness, bright clarity, strong gloss, etc. Relying on its own good performance, it has become an ideal stone grinding tools used in all areas of society.

Good using effect

After polishing with diamond polishing pads, it can be und that the gloss will be significantly improved after the whole process is done, and the surface is very smooth.
