4 Grinding Plates 710MM Marble Floor Polisher 440V 11KW

4 Grinding Plates 710MM Marble Floor Polisher 440V 11KW

  • High Light

    4 Grinding Plates Marble Floor Polisher

    ,

    Marble Floor Polisher 440V

    ,

    11KW Marble Floor Polishing Machine

  • Product Name
    4 Grinding Plates 440V 50HZ 710mm 11KW Concrete Grinding Machine
  • Voltage(V)
    380V/440V 50HZ
  • Motor (KW)
    11KW 3Phase
  • Inverter (HP)
    15HP/11KW
  • Work Area
    710*710mm
  • Grinding Speed
    0-1500RPM
  • Water Tank
    30L
  • Apply To
    Surface Preparation, Marble Granite Floor Grinding Polishing
  • Place of Origin
    China
  • Brand Name
    Merrock
  • Certification
    CE
  • Model Number
    V12-710
  • Minimum Order Quantity
    1
  • Price
    USD1000-3500
  • Packaging Details
    Iron frame+carton
  • Delivery Time
    30
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

4 Grinding Plates 710MM Marble Floor Polisher 440V 11KW

4 Grinding Plates 440V 710mm 11KW Concrete Marble Floor Polisher



MERROCK Profile.pdf

Quick Detail:



Product name

4 Grinding Plates 440V 50HZ 710mm 11KW Concrete Marble Polisher

Application Marble, granite, terrazzo, concrete and quartzite floor
Type V12-710 Function Leveling, polishing, grinding, renovating





Description:



1. With multi-functional grinding plate is suitable for all kinds of diamond pad ands blades.
2. 4 Grinding Plates 440V 50HZ 710mm 11KW Concrete Marble Polisher is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
5. With vacuum cleaner port could install a industrial vacuum cleaner outside.
6. There is a 30L water tank can grinding in wet and dry.
7. V12-710 apply to marble, granite, terrazzo, concrete floor, natural stone floor etc.
8. It's easy to control and has stable performance.




Application:



4 Grinding Plates 440V 50HZ 710mm 11KW Concrete Marble Polisher is for marble floor leveling, granite floor polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Specification: catalog-grinder polisher.pdf
Model S12-710
Phase 3
Voltage 380V
Power (KW) 11KW
Inverter (KW) 11KW
Grinding Speed 0-1500rpm
Work width 710*710mm
Grinding Heads 12 pieces
Grinding plate 4 pieces
Water tank 30L/Yellow
Net Weight 375KG
Gross Weight 425KG





Feature:



1. 4 Grinding Plates 440V 50HZ 710mm 11KW Concrete Marble Polisher with magnetic plate.

2. 710mm big width improve the working efficiency.

3. It can use the dry and wet resin polishing pads, metal diamond grinding blades.

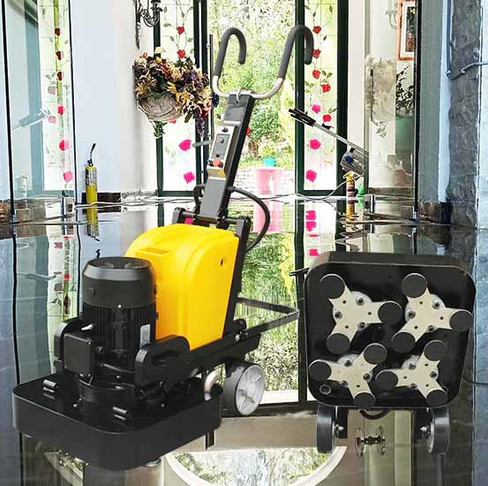

Detail picture:



4 Grinding Plates 710MM Marble Floor Polisher 440V 11KW 0

4 Grinding Plates 710MM Marble Floor Polisher 440V 11KW 1



Tools (Diamond metal grinding shoes) for the machine:



Diamond resin polishing pads ( Wet polishing pad / dry polishing pad / renovation pad)



1. Wet polishing pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.





Diamond metal grinding shoes (J007) for concrete terrazzo and epoxy floor

Metal diamond grinding discs for concrete terrazzo and epoxy floor

Metal diamond grinding blades for concrete terrazzo and epoxy floor





Solution for concrete floor - Accessories (J010, R-2, G-1):



4 Grinding Plates 710MM Marble Floor Polisher 440V 11KW 2



1. Metal diamond grinding blade

    J010 30#

    J010 50#

    J010 100#

2. Resin diamond wet polishing pad

    R-2 50#

    R-2 150#

    R-2 300#

    R-2 500#

3. Resin diamond dry polishing pad

    G-1 800#

    G-1 1500#





Package:



Carton + iron frame (Export package)



catalog-grinder polisher.pdf



Tag: terrazzo floor polishing machine, concrete floor grinder

Diamond Polishing Pads With Different Grits

Seven particle size numbers of diamond polishing pads which are 50#, 100#, 200#, 400#, 800#, 1500#, 3000# are conventional polishing pads in the stone processing industry, also called the basic particle size. Because the manufacturing technology of this polishing pad is mature and the effect is reliable. In fact, the new type of three-step or five-step polishing pads are not as good as this conventional polishing pads in terms of optimization effect. From 50#~3000#, the scratch can be optimized very well. This type of polishing pad has very clear polishing steps and polishing effect.

1.50-400# diamond polishing pads

Diamond polishing pads of these particle sizes are all using abrasive particles to cut away minerals on the surface of the stone, and the grinding effect is dominant. It is used for leveling during grinding. Relying on rough abrasives, the height difference can be quickly flattened and ready for the next stage.

2.800# diamond polishing pads

This type of diamond polishing pad is quite special. It is the preparatory polishing stage. It serves as a link between the previous and the next, giving a finishing to the front grinding process and a beginning to the back filling process. So it is a complex of "grinding effect & filling effect". The two functions exist at the same time.

3.1500-3000# diamond polishing pads

Diamond polishing pads of these particle sizes are mainly based on the release of resin in the polishing pads for filling process to form high gloss. The filling effect is dominant, and the grinding effect is still there, but it is very weak. The abrasive of polishing pads is very delicate, and the filling effect of the resin is strengthened to grind the stone out of high gloss.
