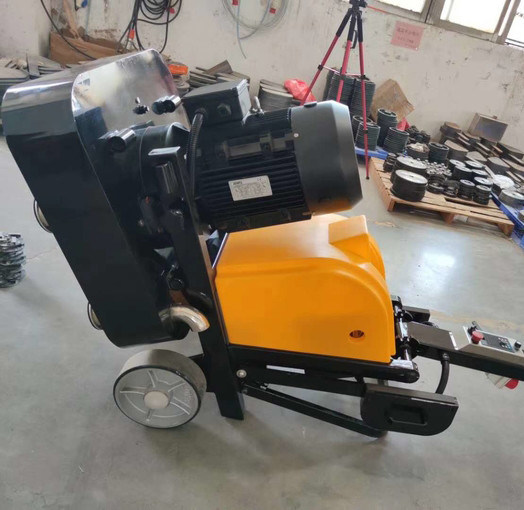

Multifunction 15HP 710MM Marble Floor Polisher With 12 Heads

Multifuction 15HP 710mm Marble Floor Polisher Terrazzo Polishing With 12 Heads

MERROCK Profile.pdf

Feature:

1. Aluminum die-casting gear box

2. Global well-known brands motor and inverter

3. External vacuum port

4. Components through precision lathe processing

5. With emergency stop button and reverse button on panel

6. Multifunctional grinding discs can be fixed various polishing pads to reduce the cost


Parameters:

Application & Function:

• Core component is made by imported mould,ensuring the performance and stability of product.
• Strong power, large working area, high efficiency, low in cost(save 20% material consumption).
• The necessary top brand equipment for large area project and ideal choice for strength construction cooperation.
• Separable add weight makes the machine easy for transport. V12 is your best choice to save time, save worry and save money in condition of lacking in technician, raising wage of labors at present.
• With a vacuum outlet for double vacuum dust device. It is available for both wet and dry grinding.
• V12-710 is a cost-effective, economic and practical type, the motor is also selected the world top three brands -WEG motor or Siemens electric motor.

Diamond Polishing Pads With Different Grits

Seven particle size numbers of diamond polishing pads which are 50#, 100#, 200#, 400#, 800#, 1500#, 3000# are conventional polishing pads in the stone processing industry, also called the basic particle size. Because the manufacturing technology of this polishing pad is mature and the effect is reliable. In fact, the new type of three-step or five-step polishing pads are not as good as this conventional polishing pads in terms of optimization effect. From 50#~3000#, the scratch can be optimized very well. This type of polishing pad has very clear polishing steps and polishing effect.

1.50-400# diamond polishing pads

Diamond polishing pads of these particle sizes are all using abrasive particles to cut away minerals on the surface of the stone, and the grinding effect is dominant. It is used for leveling during grinding. Relying on rough abrasives, the height difference can be quickly flattened and ready for the next stage.

2.800# diamond polishing pads

This type of diamond polishing pad is quite special. It is the preparatory polishing stage. It serves as a link between the previous and the next, giving a finishing to the front grinding process and a beginning to the back filling process. So it is a complex of "grinding effect & filling effect". The two functions exist at the same time.

3.1500-3000# diamond polishing pads

Diamond polishing pads of these particle sizes are mainly based on the release of resin in the polishing pads for filling process to form high gloss. The filling effect is dominant, and the grinding effect is still there, but it is very weak. The abrasive of polishing pads is very delicate, and the filling effect of the resin is strengthened to grind the stone out of high gloss.
