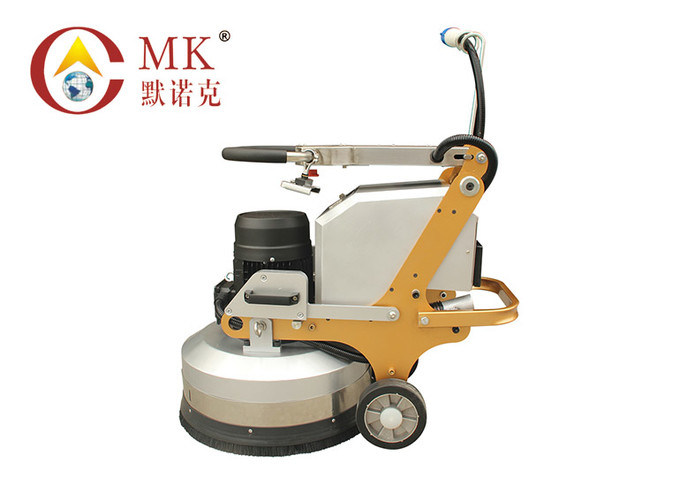

9 Heads Single Phase 4KW Planetary Marble Floor Polisher

9 Heads Single Phase 4KW Planetary Marble Floor Polisher

  • High Light

    Single Phase Planetary Marble Floor Polisher

    ,

    9 Heads Marble Floor Polisher

    ,

    4KW Marble Floor Grinder

  • Product Name
    9 Heads Single Phase 4KW Planetary System Marble Floor Polisher
  • Automatic Grade
    Manual
  • Power
    5.5HP/4KW
  • Voltage
    220V/240V 380V/440V
  • Heads
    9 Pieces
  • Autorotation Rate
    0-1250rpm
  • Revolution Speed
    0-320 Rpm
  • Water Tank
    10.6L
  • Place of Origin
    China
  • Brand Name
    Merrock
  • Certification
    CE
  • Model Number
    S9-X-550
  • Minimum Order Quantity
    1
  • Price
    USD1200-1450/PC
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    7-20 days
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

9 Heads Single Phase 4KW Planetary Marble Floor Polisher

MERROCK Profile.pdf



9 Heads Single Phase 4KW Planetary System Marble Floor Polisher





Quick Detail:



Name

9 Heads Single Phase 4KW Planetary System Marble Floor Polisher

Application Marble, granite, terrazzo, concrete floor
Type S9-X9-550 Function Leveling, polishing, grinding, renovating





Description: catalog-grinder polisher.pdf



1. 9 Heads Single Phase 4KW Planetary System Marble Floor Polisher for big industrial floor area grinding with high efficiency and competitive price
2. Beautiful and generous appearance design
3. Folding hande and integration control panel, to make operation easy and safe
4. 9 Heads Single Phase 4KW Planetary System Marble Floor Polisher is a planetary grinder with three counter-rotating grinding heads, making this a versatile grinder suitable for many different applications.

5. The grinder can be used for everything from stripping floors to grinding concrete, natural stone.
6. The motor and chassis can be easily separated, and the chassis is collapsible for easy handling and transport.
7. High tech grinding machine S9-X-550 with unique and patented planetary 9-heads driving system, which achieve
the innovation of low maintenance gear driving planetary head rotation system.
8. Three plates with 9 pieces heads, each time need fix 9 pieces pads (blades), with planetary three-plate driving system,
S9-X-550 use aluminum alloy die-casts base plate, it's hard and won't be out of shape, stainless steel water tank.
9. With vacuum cleaner connector could install a vacuum cleaner outside.
10. It with 10.6L water tank can wet and dry grinding.


Function and feature:


1. Application and function: Stone leveling, stone grinding, concrete grinding, concrete polishing, epoxy grinding, high-speed railway beam surface grinding, also apply to remove the old coat etc., very high efficiency, best effect.
2. 22 inch 3 grinding plates, 9 heads.

3. Small machine with new function.

4. Available in wet and dry.

5. Durable grinding parts.

6. Option power in 4KW and 5.5KW

7. Option voltage in 380V and 220V



Specification:

Model S9-X-550
Phase/Voltage 1/220V
Power 5.5HP/4KW 7.5HP/5.5KW
Inverter 5.5HP/4KW 7.5HP/5.5KW
Autorotation rate 0-1250rpm
Revolution speed 0-320 rpm
Work width 550*550mm
Heads 9 pieces
Grinding plate 3 pieces
Water tank 30L
NW(KG) 200 232
GW(KG) 238 276
Packing size(CM) 93x62x93cm 98x62x93cm


Detail picture:



9 Heads Single Phase 4KW Planetary Marble Floor Polisher 0

9 Heads Single Phase 4KW Planetary Marble Floor Polisher 1

9 Heads Single Phase 4KW Planetary Marble Floor Polisher 2







Available abrasive:



Diamond resin pads (Dry polishing pad G-2)



9 Heads Single Phase 4KW Planetary Marble Floor Polisher 3



Diamond grinding shoes (J007)



9 Heads Single Phase 4KW Planetary Marble Floor Polisher 4



Metal diamond grinding discs (J013)



9 Heads Single Phase 4KW Planetary Marble Floor Polisher 5

Metal diamond grinding blades (J008)



9 Heads Single Phase 4KW Planetary Marble Floor Polisher 6







Packing:



Wooden case

Size: 93x62x93cm



9 Heads Single Phase 4KW Planetary Marble Floor Polisher 7



catalog-grinder polisher.pdf



Tag: planetary concrete floor polishing machine, granite floor polisher



Diamond Polishing Pads With Different Grits

Seven particle size numbers of diamond polishing pads which are 50#, 100#, 200#, 400#, 800#, 1500#, 3000# are conventional polishing pads in the stone processing industry, also called the basic particle size. Because the manufacturing technology of this polishing pad is mature and the effect is reliable. In fact, the new type of three-step or five-step polishing pads are not as good as this conventional polishing pads in terms of optimization effect. From 50#~3000#, the scratch can be optimized very well. This type of polishing pad has very clear polishing steps and polishing effect.

1.50-400# diamond polishing pads

Diamond polishing pads of these particle sizes are all using abrasive particles to cut away minerals on the surface of the stone, and the grinding effect is dominant. It is used for leveling during grinding. Relying on rough abrasives, the height difference can be quickly flattened and ready for the next stage.

2.800# diamond polishing pads

This type of diamond polishing pad is quite special. It is the preparatory polishing stage. It serves as a link between the previous and the next, giving a finishing to the front grinding process and a beginning to the back filling process. So it is a complex of "grinding effect & filling effect". The two functions exist at the same time.

3.1500-3000# diamond polishing pads

Diamond polishing pads of these particle sizes are mainly based on the release of resin in the polishing pads for filling process to form high gloss. The filling effect is dominant, and the grinding effect is still there, but it is very weak. The abrasive of polishing pads is very delicate, and the filling effect of the resin is strengthened to grind the stone out of high gloss.
