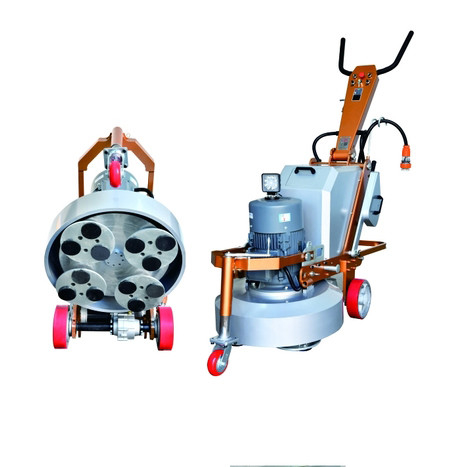

Self Propelled Auto Walk Concrete Floor Grinder With Planetary System

Self Propelled Auto Walk Concrete Floor Grinder With Planetary System

Self Propelled Auto Walk Concrete Floor Grinder With Planetary System
video
Self Propelled Auto Walk Concrete Floor Grinder With Planetary System
Product Details:
Place of Origin: Made in China
Brand Name: Merrock
Certification: CE, ISO9001,etc
Model Number: Z12-X-750
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Iron frame+carton, Export wooden box
Delivery Time: 5-7 work days, OEM 20-25 work days
Payment Terms: TT , West Union
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Feature: Planetary System Color: OEM
Voltage: 380-440V Phase: 3
Type: S-X12-750 Work Width: 750mm
Plate: 275mm Automation: Auto Walk
Condition: New
High Light:

Auto Walk Concrete Floor Grinder

,

Auto Walk Stone Floor Grinder

,

Stone Floor Grinder With Planetary System

Auto Walk Concrete Floor Polisher Fast Speed Self Propelled Planetary System





MERROCK Profile.pdf

Quick Detail:

Name 12 heads floor polishing machine Application Marble, granite, terrazzo, concrete floor
Type Z12-X-750 Function Leveling, polishing, grinding, renovating


Description:

  1. 750 mm large work areas improve the work efficiency.
  2. Separated body make it easy for carrying.
  3. With multifunction plate include magnetic discs and Velcro discs meet different clients’ demand.
  4. Four plates, each fix 3 pieces small discs, total 12 pieces small discs one machine, each time need fix 12 pieces polishing pads.
  5. Handle is adjustable, is easy to control.
  6. With inverter could adjust the speed from 0 to 1500 rmp.
  7. Use good quality bearing.

Specification:


Model Unit Z-X12-750
Power Voltage/Phase 440V/3P
Motor HP 15
  KW 11
Inverter HP 15
  KW 11
Speed RPM 300-1200
Body Weight LB 1212.5
Work Width INCH 30
  MM 750
Water tank GAL 9.2
  Liter 35
Grinding Discs Header 4
  Tools 12



Planetary Grinder Operation instruction:

  1. Fix the grinding disc, please put the handle in horizontal position, press the handle down by power to make the bottom disc tilting, and the grinding disc turn up, and stick the grinding pads on.
  2. Lay the machine back to the floor slowly to let the grinding pads reach the floor. (Please lay lightly).
  3. Put the add weight down to the back of the machine, wear the dustband.
  4. Fix the power supply wire. (Safety operation)
  5. Hold the machine handle, pull out the bolt, then pull and push the handle adjuster bar to adjust the handle in a proper position for operation, fix the handle by the bolt at last.
  6. Turn on the water switch when need water, if you would like dry grinding, please connect the outside dust collect with dust vacuum cleaner.
  7. Turn on the power supply switch and the machine begin to work.
  8. Stop the machine to change the grinding pads.
  9. Keep the speed above 1000rpm during operation.
Operation Safety:
  1. While operation, to keep safe must wear safety helmet and safety shoes, in addition, use mask and earplug according to the operation condition.
  2. Non-against exploding construction, so absolutely do not put flammable substances of petrol, thinner and gas etc nearby.
  3. Regarding to the noise, please comply with relative rules in local,do not give trouble to the surroundings.
  4. Absolutely do not touch the motor during operation, otherwise it's easy to scald; also parts of the grinding heads will be too hot to touch.
  5. It had better use our grinding assessories or the appointed products made by our company such as grinding pads , if use other products, it perhaps will injure operator's body. Therefore the incident does not belong to the scope of product quality if it happens during use other company's accessories .
  6. If machine runs abnormally , and un-usual condition during using the machine, immediately stop the operation, examine and repair it after confirming the safety.

Self Propelled Auto Walk Concrete Floor Grinder With Planetary System 0
Available abrasive:

  1. Diamond resin pads
  2. Diamond grinding shoes
  3. Metal diamond grinding discs


Self Propelled Auto Walk Concrete Floor Grinder With Planetary System 1

Z-X12-750 Auto-Walk Grinder Manual.pdf



How to Grind the Soft Concrete?

Grinding soft concrete requires 'hard bond' grinding discs that resist the metal matrix being eroded away. The sandy, gritty, abrasive dust will erode diamond grinding discs abnormally fast, so be certain that you are using the right diamond grinding disc. More than any other time, grinding soft concrete is when contractors need to be aware of the signs of rapid grinding and fast wear to stop work and rectify the problem.


Things need to noted when grinding soft concrete

1.Inspect your diamond tooling regularly for unusually high diamond exposure.This means that when you run your finger over the surface the diamond grit is sticking out a lot.The diamond grit will befalling out of the matrix before you have had a chance to wear them out.

2.Use diamond tooling with a hard bond and or more segments to grind. And be certain to remove the machine weights during grinding to reduce the weight on the diamond tooling.

3.Use a vacuum that will extract dust away as quickly as possible.This will greatly improve the life of the diamond tooling. If there is a lot of dust rolling between the floor and segments, it will cause excessive wear of the diamond tooling.

Tips for grinding soft concrete

● Do not use the cheapest diamond grinding disc and expect to save money, it becomes an expensive exercise. A premium diamond grinding disc is usually the best value for money.

● Reduce the weight on the head of the machine as much as possible to ensure that the sandy, gritty, abrasive dust that is rolling around under the segments does not erode the matrix any more than necessary.
