500mm Work Width Manual Marble Floor Polishing Equipment

500mm Work Width Manual Marble Floor Polishing Equipment

  • High Light

    Manual Marble Floor Polishing Equipment

    ,

    500mm Marble Floor Polishing Equipment

    ,

    Manual Marble Floor Polisher

  • Name
    Marble Floor Polishing Equipment
  • Operation Way
    Manual
  • Place of Origin
    Made in China
  • Brand Name
    Merrock
  • Certification
    CE, ISO9001,etc
  • Model Number
    MRK - V12 - 500
  • Minimum Order Quantity
    1pc
  • Price
    USD2500
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    5-7 work days, OEM 20-25 work days
  • Payment Terms
    TT , West Union
  • Supply Ability
    90 pcs / month

500mm Work Width Manual Marble Floor Polishing Equipment

High Effective Manual Marble Floor Polishing Machine For Cement Ground



MERROCK Profile.pdf



High Speed Effective Polishier / Terrazzo Floor Grinder Specially for Cement Ground





Quick Detail:



Name 12 heads Terrazzo Floor Grinder Application Marble, granite, terrazzo, concrete floor
Type MRK-V12-500 Function Leveling, polishing, grinding, renovating





Description:



  1. 500x 500 mm large work areas improve the work efficiency.
  2. Separated body make it easy for carrying.
  3. With multifunction plate include magnetic discs and Velcro discs meet different clients’ demand.
  4. Four plates, each fix 3 pieces small discs, total 12 pieces small discs one machine, each time need fix 12 pieces polishing pads.
  5. Handle is adjustable, is easy to control.
  6. With inverter could adjust the speed from 0 to 1500 rmp.
  7. Use import NSK bearing.





Application:



For stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...





Specification:



Type MRK-V12-500
Power 7.5hp/5.5KW
Voltage 380V-440V
Inverter 11HP
Speed 0-1500 rpm
Grinding discs 12pcs
Work width 500mm
Weight 245kg
Water tank 30L

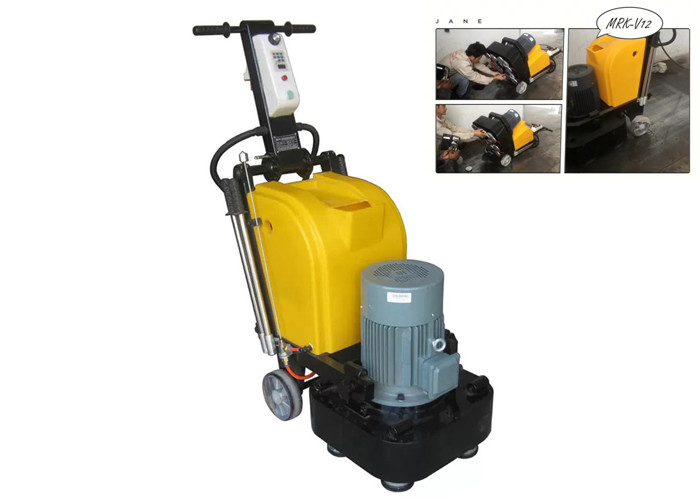

Detail picture:



500mm Work Width Manual Marble Floor Polishing Equipment 0





Available abrasive:



  1. Diamond resin pads
  2. Diamond grinding shoes
  3. Metal diamond grinding discs





Packing:



500mm Work Width Manual Marble Floor Polishing Equipment 1

Diamond Polishing Pads With Different Grits

Seven particle size numbers of diamond polishing pads which are 50#, 100#, 200#, 400#, 800#, 1500#, 3000# are conventional polishing pads in the stone processing industry, also called the basic particle size. Because the manufacturing technology of this polishing pad is mature and the effect is reliable. In fact, the new type of three-step or five-step polishing pads are not as good as this conventional polishing pads in terms of optimization effect. From 50#~3000#, the scratch can be optimized very well. This type of polishing pad has very clear polishing steps and polishing effect.

1.50-400# diamond polishing pads

Diamond polishing pads of these particle sizes are all using abrasive particles to cut away minerals on the surface of the stone, and the grinding effect is dominant. It is used for leveling during grinding. Relying on rough abrasives, the height difference can be quickly flattened and ready for the next stage.

2.800# diamond polishing pads

This type of diamond polishing pad is quite special. It is the preparatory polishing stage. It serves as a link between the previous and the next, giving a finishing to the front grinding process and a beginning to the back filling process. So it is a complex of "grinding effect & filling effect". The two functions exist at the same time.

3.1500-3000# diamond polishing pads

Diamond polishing pads of these particle sizes are mainly based on the release of resin in the polishing pads for filling process to form high gloss. The filling effect is dominant, and the grinding effect is still there, but it is very weak. The abrasive of polishing pads is very delicate, and the filling effect of the resin is strengthened to grind the stone out of high gloss.
