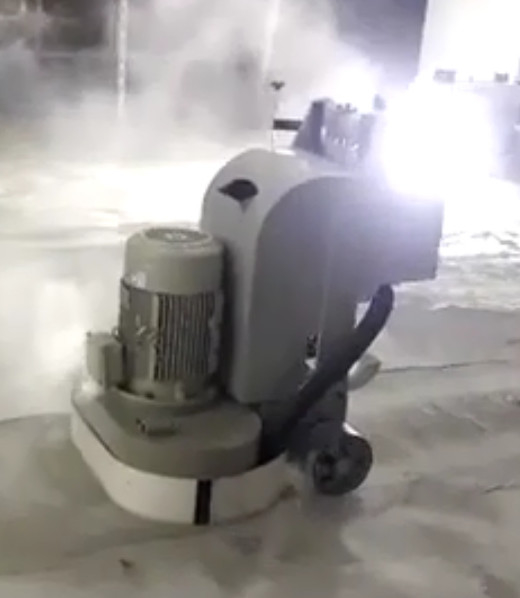

Gray / White / OEM Terrazzo Floor Polisher 6 Heads Floor Polishing Machine

Gray / White / OEM Terrazzo Floor Polisher 6 Heads Floor Polishing Machine

  • High Light

    Terrazzo Floor Polishing Machine

    ,

    Terrazzo Floor Grinder

  • Color
    Gray / White / OEM
  • Type
    S6 Single Phase
  • Work Width
    680 Or 730
  • Name
    6 Heads Floor Polishing Machine
  • Place of Origin
    Made in China
  • Brand Name
    Merrock
  • Certification
    ISO9001,CE,MSDS,etc
  • Model Number
    S6
  • Minimum Order Quantity
    1pc
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    5-7 work days, OEM 20-25 work days
  • Payment Terms
    TT
  • Supply Ability
    50 sets/month

Gray / White / OEM Terrazzo Floor Polisher 6 Heads Floor Polishing Machine

220V 10HP Power Single Phase Concrete Stone Terrazzo Floor Grinder



MERROCK Profile.pdf



Quick Detail:



Name 6 heads floor polishing machine Application Marble, granite, terrazzo, concrete floor
Type S6 Single Phase Function Leveling, polishing, grinding, renovating





Description:





MRK-S6 is elegant appearance and practical operation. It is more prominent to shock absorption effect, to avoid the machine injure when vibration, and meanwhile, to avoid the ripple phenomenon which is easy to occur when the large grinding machine is polishing the stone.

  1. MRK-S6 is with bigger work width and reasonable weight. The center of gravity is forward and with gear transmission, its efficiency is 1.6 times than the efficiency of 6-head machine construction, also easier to transportation than 12-head machine. This machine is a perfect combination of all type of machines.
  2. MRK-S6 is more convenient to transport for the chassis separating device
  3. Stainless steel water tank
  4. With an external vacuum port
  5. Components through precision lathe processing
  6. With emergency stop button and reverse button on panel
  7. Multifunctional grinding discs can be fixed various polishing pads to reduce your operation cost.







Application:



For stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Specification:



Name

S6

Large grinding machine

Type

S6-380B

S6-220B

Voltage

380V-440V

220V-240V

Motor

7.5HP

7.5HP / 10HP

Inverter

10HP

10HP

Speed(rpm/m)

0-1500 Stepless speed regulation

0-1500 Stepless speed regulation

Body Weight

257KGs

257KGs



Work Width

730*350mm2

730*350mm2



Water tank

30L

30L

Grinding Discs

2pcs (6 discs)

2pcs (6 discs)







Available abrasive:

  1. Diamond resin pads
  2. Diamond grinding shoes
  3. Metal diamond grinding discs



Tips:
The Properties of Industrial Diamonds in Polished Concrete

Both synthetic diamonds and natural diamonds have the same chemistry and structure, although synthetic diamonds tend to be more uniform in their characteristics because of the lack of impurities that may be found in natural diamonds. Diamonds are the hardest naturally occurring substance. Diamonds also have the highest thermal conductivity of any naturally occurring substance. Diamonds are generally clear and colorless, however, impurities may result in colored or cloudy diamonds.

Because diamonds are the hardest naturally occurring substance, they can be used for grinding, abrading, or cutting every other material, including other diamonds. Their high thermal conductivity also contributes to their effectiveness in grinding, abrading, and cutting by carrying heat away from the surface. This is important because the glazing of tool surfaces and blades occurs when the tool has been heated to the point that the tool surface melts.

When creating a polished concrete floors, the hardness and thermal conductivity make industrial diamonds ideal for use as an abrasive. Metal bond diamond abrasives are formed by sintering metal with diamonds with the level of abrasiveness. When the diamond abrasive is over 400 grit, generally for polishing concrete. This combines the hardness and heat transfer properties of diamonds with the strength and heat-dissipating properties of metal. These tools are key to a concrete polishing system that is efficient because fewer passes are required to polish concrete floors. Moreover, longer lasting tools mean less waste. Less waste, combined with environmentally friendly chemicals, creates a concrete polishing system that results in a sustainable polished concrete floor.
