Merrock Integrated 510mm Concrete Floor Grinding Machine

Merrock Integrated 510mm Concrete Floor Grinding Machine

  • High Light

    510mm Concrete Floor Grinding Machine


    Merrock Integrated Concrete Floor Grinding Machine


    Merrock 510mm Stone Floor Polisher

  • Grinding Head
    12 Heads
  • Inverter
  • Water Tank
  • Function
    Terrazzo, Concrete, Marble, Granite
  • Motor
  • Rotating Speed
  • Working Width
  • Head
  • Place of Origin
  • Brand Name
  • Certification
    CE, ISO9001,etc.
  • Model Number
  • Minimum Order Quantity
  • Price
    upon request
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    150 sets/month

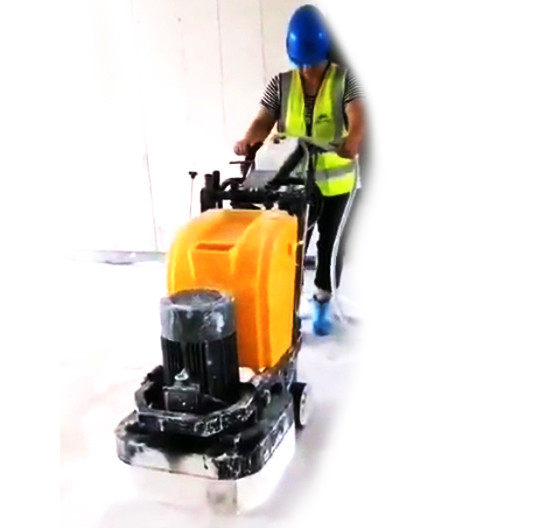

Merrock Integrated 510mm Concrete Floor Grinding Machine

concrete floor grinding machine 510MM Width


MERROCK Profile.pdf


V12-510 is a large scale integrated grinding and polishing machine that uses all gear rotation and high powered motors.



Product Features
1) The machine uses world-renowned brand components, including motors, switches and operating parts.

2) Foldable handle, ergonomically designed to create a relaxed and comfortable job.

3) The machine quality is guaranteed, the delivery speed is fast.

4) Use a connector to connect the vacuum cleaner and use it together to create a dust-free environment.

5) Unique design, integrated beauty and use in one, brand new appearance.

6) The heavy iron on both sides of the machine can be regulated and controlled.

7) The tank capacity is larger than other models of machines, saving the time wasted by machines frequently adding water.

8) Floating dust cover solves the problem of frequent fall off of traditional dust cover and low working efficiency.

9) High speed gears make machines more efficient and work more space.


Application & Function:

- Core component is made by imported mould,ensuring the performance and stability of product.
- Strong power, large working area, high efficiency, low in cost(save 20% material consumption).
- The necessary top brand equipment for large area project and ideal choice for strength construction cooperation.
- Separable add weight makes the machine easy for transport. V12 is your best choice to save time, save worry and save money in condition of  lacking in technician, raising wage of labors at present.
- With a vacuum outlet for double vacuum dust device. It is available for both wet and dry grinding.
- Cost-effective, economic and practical type, the motor is also selected the world top three brands -WEG motor or Siemens electric motor.




Item Data
Model MRK-V12-510
Voltage 220V
Motor 10HP
Inverter 10HP
Speed 0-1500rpm
Work width 510*510mm
Water tank 30L
Heads 12pcs



 Merrock Integrated 510mm Concrete Floor Grinding Machine 0


Merrock Integrated 510mm Concrete Floor Grinding Machine 1






Technically, a concrete floor grinder can remove as much concrete as you’d like it to. How quickly that happens is the bigger question.

Another consideration is how much you’ll take off at a time. A concrete grinder uses diamonds or tungsten to shear off layers of concrete.

Generally, most people use a concrete grinder to remove minute amounts of concrete or to grind off glues and imperfections. With standard grinding wheels and work, you can expect to take off around 1/16”.

Remember, the more work you put in, the more wear you put on the pads. If you want to grind hard, you may require an extra set of grinding pads.

Concrete grinding is often seen as a finishing or refinishing procedure. If you have too much concrete to remove, contractors may suggest removing the concrete and re-pouring it instead.
