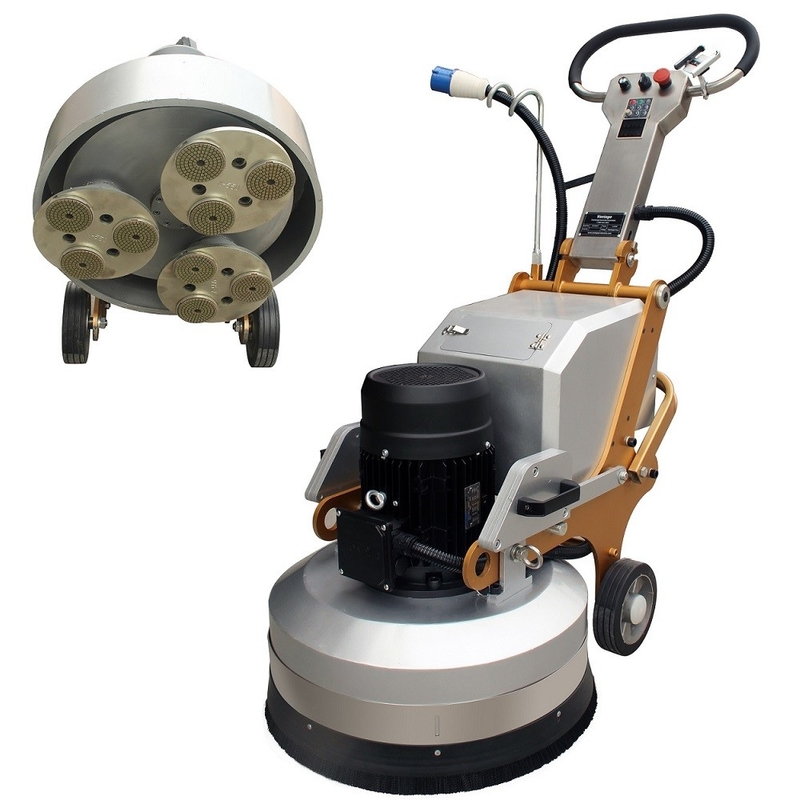

Merrock powerful planetary floor grinder S9-X-550
-- Foldable handle make transport easier.
-- Three head planetary type, offers high performance and efficiency
-- Driven by Gear and Motor, the life warranty can be up to 5-10 years.
-- With slie extra weight.
-- LED light equiped.
-- with 9 discs cross rotating, no trace leave on the floor.
-- Our multipurpose floor grinder can be used in floor preparation, floor grinding and polishing wet and dry.
-- It also can remove the old tough coatings like adhesive, screed, epoxy and paint.
-- Collapsible design for easier transport.
-- Quick-change System with removable Velcro attachments.
-- With inverter, rotating speed is available.
-- Formac floor grinders' rotating head plates adapt a best rubber coupler for good work result and long lifetime.
-- Dust hole is designed to connect the dust collector to avoid dust pollution
Quick Specifications:
Name | Concrete Grinder | Application | Marble, granite, terrazzo, concrete floor |
Type | S9-X-550 | Function | Leveling, polishing, grinding, renovating |
Description:
- Super Portable
- With small size, more convenient to move
- planetary system, best for stone grinding and polishing
- With Three 3 heads, each of them fix 3 pieces polishing pads, each time need fix 9 pieces polishing pads.
- with adjustable Handle, so easy to handle.
- With branded inverter that could adjust the speed from 0 to 1500 rmp.
Application:
Nature Stone/Concrete/Terrazzo leveling, floor polishing and grinding, also apply to strip the old coat of epoxy etc...
Specification:
Type | S9-X-220B |
Voltage | 220V-240V |
Motor | 5.5KW |
Speed | 0-1500 rpm |
Body weight | 200KGS |
Working width | 550mm |
Water tank | 30L |
Grinding plate | 9 heads |

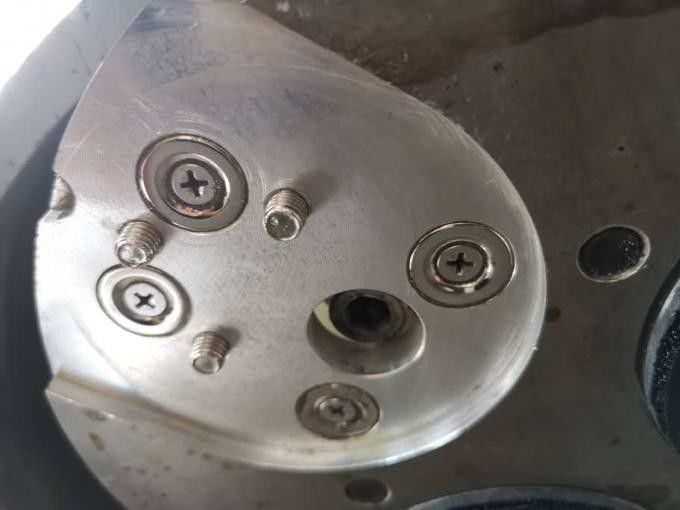

Detail picture:
Resin pads:
Identifying a Rotary Grinder
Rotary grinders may take several different forms but always maintain a disc configuration that is easy to distinguish from that of a planetary grinder. These machines typically feature a single large disc along the base that rotates to grind the floor. Rotary grinders may also feature multiple smaller discs along the base that counter-rotate. These discs may lie on the same plane or may overlap. Rotary grinders with multiple discs will not have a larger central disc like a planetary grinder does.
