Planetary Terrazzo Floor Grinding Machines 3 Heads 550mm

Planetary Terrazzo Floor Grinding Machines 3 Heads 550mm

  • High Light

    Planetary Terrazzo Floor Grinding Machines

    ,

    3 Heads Terrazzo Floor Grinding Machines

    ,

    Planetary Terrazzo Floor Grinder

  • Weight
    200Kgs
  • Automatic Grade
    Manual
  • Condition
    New
  • Motor
    5.5KW
  • Voltage
    220V
  • Dimension
    550MM
  • Place of Origin
    CHINA
  • Brand Name
    MERROCK
  • Certification
    CE
  • Model Number
    S9-X-550
  • Minimum Order Quantity
    1
  • Price
    upon request
  • Packaging Details
    WOODEN BOX WITH IRON BAR
  • Delivery Time
    5-7 work days, OEM 20-25 work days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    150 sets/month

Planetary Terrazzo Floor Grinding Machines 3 Heads 550mm

3 Heads 550MM width Planetary System Terrazzo Grinder S9



MERROCK Profile.pdf



S9-X-550 created in 2020, a planetary running machine which inherits advanced gear-driving

technology, special design for small area and home decoration, smart and convenient, easy to move

and easy to handle, convenient for transportation.

It can match with the machine need and get rid of voltage limit requirements of the construction

area. This machine use planetary running, can be fully grinding, increase the quality of

construction. It is an indispens able grinding machine for you in the floor construction site.



Quick Specifications:

Name Terrazzo Grinder Application Marble, granite, terrazzo, concrete floor
Type S9-X-220B Function Leveling, polishing, grinding, renovating



Description:

- With super high efficiency

- With planetary system best for stone grinding and polishing
- With Three 3 heads, each of them fix 3 pieces polishing pads, each time need fix 9 pieces polishing pads.
- with adjustable Handle, so easy to control.
- With inverter that could adjust the speed from 0 to 1500 rmp.
- Easy to handle and super portable



Application:

Stone/Marble/Concrete/Terrazzo/Granite leveling, floor polishing and grinding, also apply to remove the old coat of epoxy etc...





Specification:



Type S9-X-220B
Voltage 220V-240V
Motor 5.5KW
Speed 0-1500 rpm
Body weight 200KGS
Work width 550mm diameter
Water tank 30L
Grinding plate 9 heads

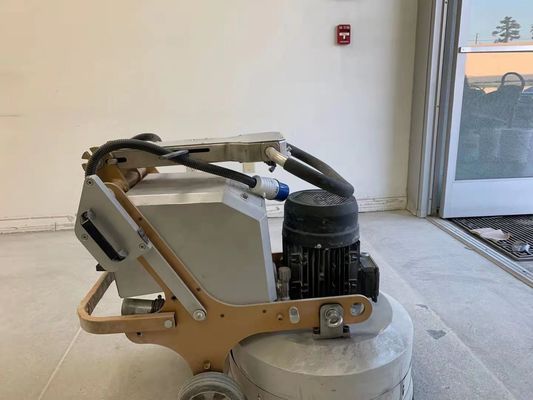

Detail picture:

Planetary Terrazzo Floor Grinding Machines 3 Heads 550mm 0







Tips:

How Do Planetary Grinders Work?
A planetary grinder gets its name due to its similarity to how planets work. There is a large main disc that acts as a central point around which several small discs rotate at different speeds from the large disc. The small discs all grind or polish the surface simultaneously while the large disc doesn’t come in contact with the floor. Think of it like the large disc is the sun and the small discs are the planets orbiting the sun while also turning on their own axis.
