11KW Granite Floor Polisher

11KW Granite Floor Polisher

  • High Light

    12 Heads Granite Floor Polisher

    ,

    4 plates marble floor polisher

    ,

    11KW Granite Floor Polisher

  • Product Name
    4 Grinding Plates 12 Heads 11KW Marble Granite Floor Grinder
  • Voltage (V)
    380V-460V
  • Power (KW)
    11KW/15HP
  • Inverter (KW)
    15HP/11KW
  • Working Area
    710*710mm
  • Speed
    0-1500RPM
  • Water Tank
    30L
  • Apply To
    Surface Preparation, Marble Granite Floor Grinding Polishing
  • Place of Origin
    China
  • Brand Name
    Merrock
  • Certification
    CE
  • Model Number
    V12-710
  • Minimum Order Quantity
    1
  • Price
    USD1000-3500
  • Packaging Details
    Iron frame+carton
  • Delivery Time
    30
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

11KW Granite Floor Polisher



4 Grinding Plates 12 Heads 11KW Marble Granite Floor Polisher





Quick Detail:



Product name

4 Grinding Plates 12 Heads 11KW Marble Granite Floor Polisher

Application Marble, granite, terrazzo, concrete and quartzite floor
Type V12-710 Function Leveling, polishing, grinding, renovating





Description:



1. With multi-functional grinding plate is suitable for all kinds of diamond pad ands blades.
2. 4 Grinding Plates 12 Heads 11KW Marble Granite Floor Polisher is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
5. With vacuum cleaner interface could connect a industrial vacuum cleaner outside.
6. There is a 30L water tank can grinding in wet and dry.
7. 710 apply to marble, granite, terrazzo, concrete floor, quartzite stone floor etc.
8. It's easy to control and has stable performance.




Application:



4 Grinding Plates 12 Heads 11KW Marble Granite Floor Polisher is for marble floor leveling, granite floor polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Specification: catalog-grinder polisher.pdf

Model S12-710
Phase 3
Voltage 380V
Motor (HP) 15HP
Inverter (KW) 11KW
Grinding Speed 0-1500rpm
Working width 71*71cm
Grinding Heads 12 pieces
Grinding plates 4 pieces
Water tank 30L/Yellow
NW 375KGS
GW 425KGS





Feature:



1. 4 Grinding Plates 12 Heads 11KW Marble Granite Floor Polisher with magnetic plate.

2. 710mm big width improve the working efficiency.

3. It can use the dry and wet resin polishing pads, metal diamond grinding blades.

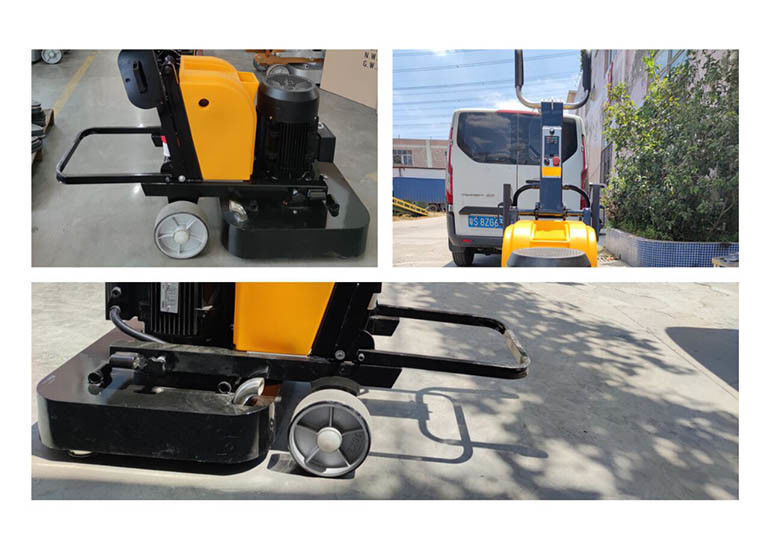

Detail picture:

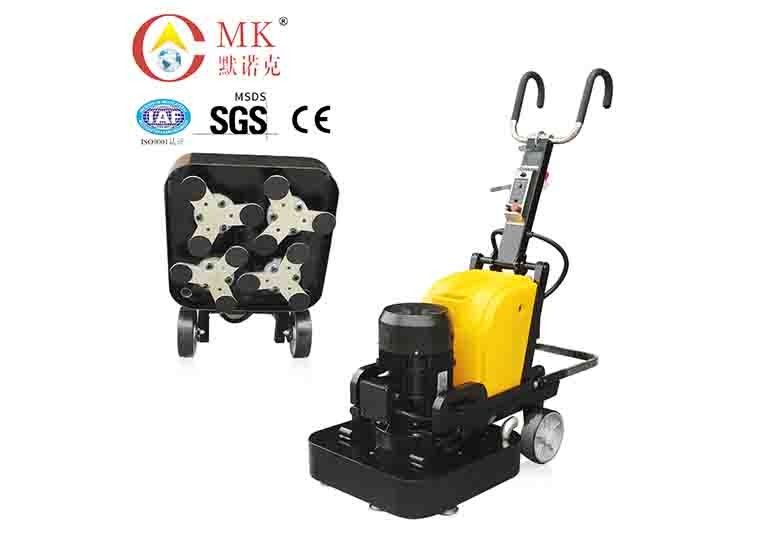

11KW Granite Floor Polisher





Tools for the machine:



Diamond resin polishing pads ( Wet polishing pad / dry polishing pad / renovation pad)



1. Wet polishing pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.





Diamond metal grinding shoes (J007) for concrete terrazzo and epoxy floor

Metal diamond grinding discs for concrete terrazzo and epoxy floor

Metal diamond grinding blades for concrete terrazzo and epoxy floor





Solution for concrete floor:



11KW Granite Floor Polisher



1. Metal diamond grinding blade

    J007 30#

    J007 50#

    J007 100#

2. Resin diamond wet polishing pad

    R-2 50#

    R-2 150#

    R-2 300#

    R-2 500#

3. Resin diamond dry polishing pad

    G-1 800#

    G-1 1500#





Packing:



Carton + iron frame (Export package)



V6-V12 concrete grinder.pdf



Tag: terrazzo floor polishing machine, concrete floor grinder
