Vacuum Interface Stone Floor Grinder

Vacuum Interface Stone Floor Grinder

  • High Light

    Vacuum Interface Stone Floor Grinder

    ,

    15KW Stone Floor Grinder

    ,

    440V Concrete Floor Grinder

  • Product Name
    440V 15KW Parking Lot Vacuum Interface Concrete Terrazzo Floor Grinder
  • Voltage(V)
    380V/440V
  • Power(KW)
    15KW/20HP
  • Inverter(KW)
    15KW/20HP
  • Work Area
    700*700mm
  • Idling Speed
    0-1500R Per Minute
  • Water Tank
    30L
  • Type
    Construction Marble Granite Floor Grinder Polisher
  • Warranty
    1 Year
  • Place of Origin
    China, Dongguan City
  • Brand Name
    Merrock
  • Certification
    CE
  • Model Number
    S12-700 20HP
  • Minimum Order Quantity
    1
  • Price
    USD 2500-3500
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    15
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

Vacuum Interface Stone Floor Grinder



440V 15KW Parking Lot Vacuum Interface Concrete Stone Floor Grinder





Quick Detail:



Name

440V 15KW Parking Lot Vacuum Interface Concrete Stone Floor Grinder

Application Marble, granite, terrazzo, concrete floor
Type S12-700 380V/440V Function Leveling, polishing, grinding, renovating





Description:



1. Aluminum alloy die-casts one body base plate is hard and don't deform, its work efficiency is about 3 pieces of MRK-V12-510.
2. 440V 15KW Parking Lot Vacuum Interface Concrete Stone Floor Grinder is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. 440V 15KW Parking Lot Vacuum Interface Concrete Stone Floor Grinder with removable led light can work at night.
5. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
6. With vacuum cleaner connector could install a vacuum cleaner outside.
7. It with water tank can wet and dry grinding.
8. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
9. It's easy to control and has stable performance.




Application:



440V 15KW Parking Lot Vacuum Interface Concrete Stone Floor Grinder it's for stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...



Specification:

Model S12-700 S12-700
Phase 3 3
Voltage 380V 380V
Power 15HP/11KW 20HP/15KW
Inverter 15HP/11KW 20HP/15KW
Speed 0-1500rpm
Work area 700*700mm
Heads 12 pieces
Grinding plate 4 pieces
Water tank 30L
Net Weight (KG) 480/500
GW(KG) 530/550
Packing size(CM) 110x70x134cm





Detail picture:

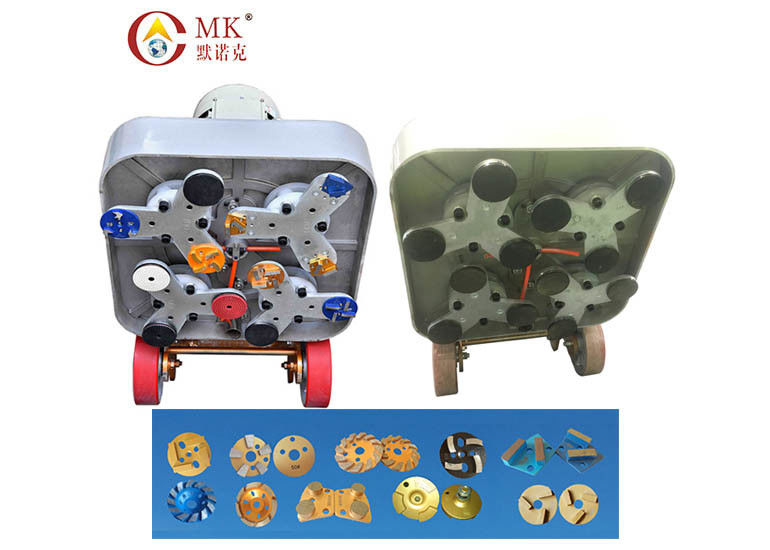

1. 440V 15KW Parking Lot Vacuum Interface Concrete Stone Floor Grinder with luminum alloy die-casts one body base plate.

2. It can use the dry and wet resin polishing pads, metal diamond grind blades.

3. Use helical gear to reduce the machine noise.

4. With storage bin can put the tools inside the machine.



Vacuum Interface Stone Floor Grinder

Vacuum Interface Stone Floor Grinder

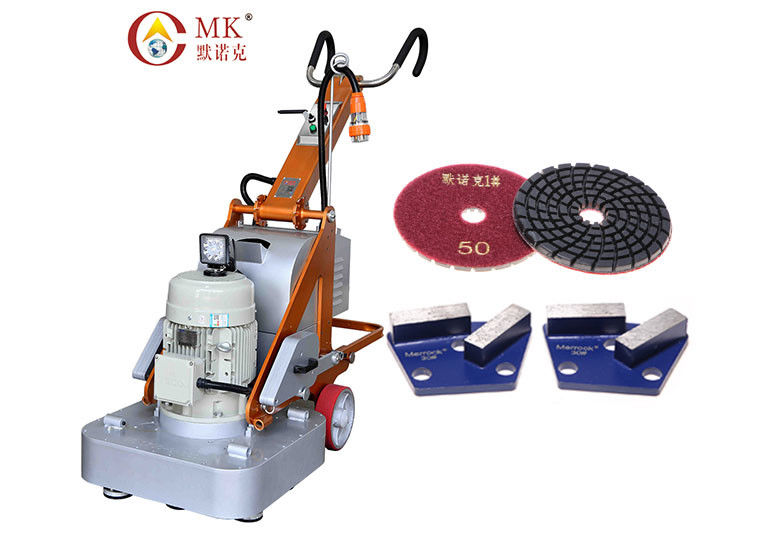

Available abrasive:



Diamond resin pads



1. Wet polishing pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the marble, granite, terrazzo and concrete floor.





Diamond grinding shoes for concrete terrazzo and epoxy floor

Metal diamond grinding discs for concrete terrazzo and epoxy floor

Metal diamond grinding blades for concrete terrazzo and epoxy floor





Packing:



Carton with iron frame

Size: 110x70x134cm





Tag: terrazzo floor grinding machine, stone floor polisher
