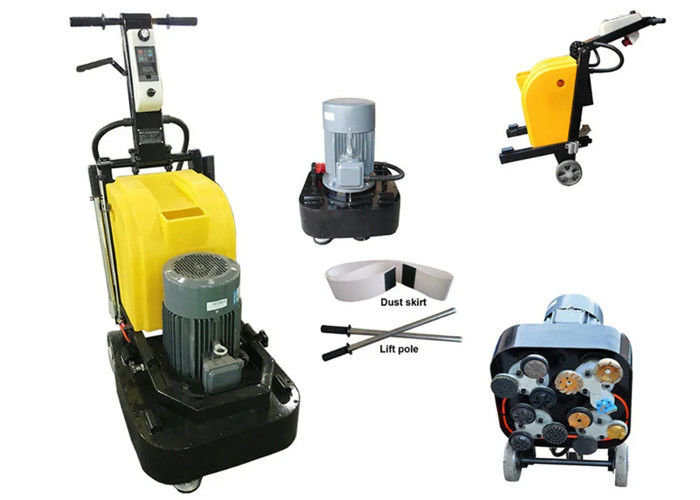

Terrazzo Floor Grinder with High Efficiency and adjustable speed
Application Scenarios:
Stone levering, stone and concrete floor surface grinding, concrete/floor polishing, high-speed railway beam surface grinding, as well as removing old floor coatings.
Feature :
- Full gear drive transmission system, which is more efficient than bellt drive transmission system.
- Strong power, large working width, high efficiency, cost saving (save up to 20% tooling expenses)
- Ideal equipment for large area construction project.
- Separable add-weights make the machine easy to transport.
- With vacuum port for vacuum cleaner.
- Available for both wet&dry grinding.
- With Top-grade Motor and Inverter. High-performance, reliable and low failure rate.
- With Adjustable rotational speed. Suiting for different kinds of floor;
Specification:

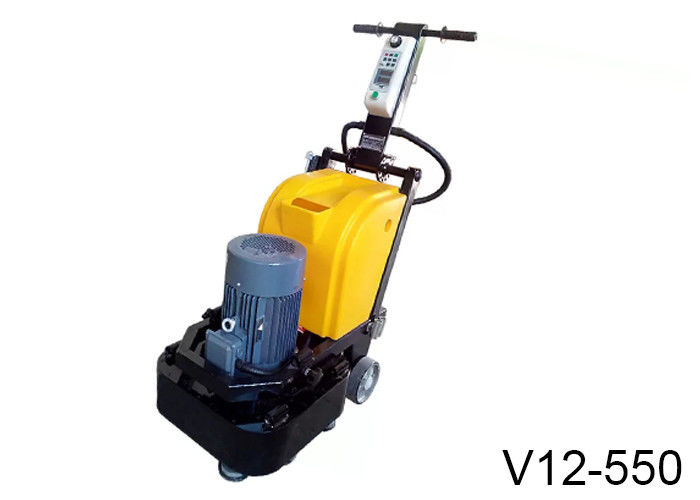

Type | MRK-V12-580 | MRK-V12-550 | MRK-V12-510 |
Voltage | 380V-440V | 380V-440V | 380V-440V |
Motor | 7.5KW/10HP | 7.5KW/10HP | 5.5KW/7.5HP |
Inverter | 11KW/15HP | 11KW/15HP | 7.5KW/11HP |
Speed (rmp/m) | 0-1500 | 0-1500 | 0-1500 |
Body weight (kg) | 280 | 270 | 245 |
Work width | 580x580mm | 550x550mm | 510x510mm |
Water tank | 30L | 30L | 30L |
Grinding head/disc | 4-Head / 12-Disc | 4-Head / 12-Disc | 4-Head / 12-Disc |
