4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V

4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V

  • Product Name
    230V Concrete Floor Grinder
  • Voltage
    220V/240V 380V/440V
  • Power(HP)
    5.5HP/4KW
  • Work Width
    310*550mm
  • Inverter
    4KW
  • Water Tank
    30L
  • Rotating Speed
    0-1500RPM
  • Add Weight
    20KG
  • Weight
    230KG
  • Place of Origin
    China
  • Brand Name
    Merrock
  • Certification
    CE
  • Model Number
    MRK-V6-220B
  • Minimum Order Quantity
    1
  • Packaging Details
    Iron frame+carton, Export wooden box
  • Delivery Time
    30
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    20

4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V



4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V





Quick Detail:



Name

4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V

Application Marble, granite, terrazzo, concrete floor
Type MRK-V6-220B Function Leveling, polishing, grinding, renovating





Description:



1. 4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V designed for big industrial floor area grinding with high efficiency and competitive price.
2. Drive by gear and belt.
3. Folding hande and integration control panel, to make operation easy and safe.
4. A large cross chassis is to improve the work efficiency, speed increase 180rpm/min, improve the working efficiency and make better construction effect.
5. This MRK-V6 is one of the most efficient of the 6 heads stone grinding machine currently.
6. Can be equipped with vacuum equipment, realization of dry and wet working mode.
7. Knob-style water switch, water spray system from the center of pad holder, an effective solution to the diamond disc wear and
tear and marks generated by grinding, greatly improve work efficiency.
8. Multifunctional pad holder can install all kinds of diamond tools, reduce your operation cost as much as possible.
9. Scope: Grinding for concrete, granite and marble terrazzo floor in wet and dry.




Application:



Stone leveling, stone grinding, concrete grinding, concrete polishing, epoxy grinding, high-speed railway beam surface grinding, also apply to remove the old coat etc.



Specification: V6-V12 concrete grinder.pdf

Model MRK-V6-220B MRK-V6-380B
Phase 1 3
Voltage 220V 380V
Power 5.5HP/4KW 5.5HP/4KW
Inverter 5.5HP/4KW 5.5HP/4KW
Speed 0-1500rpm
Work width 310*550mm
Heads 6 pieces
Grinding plate 2 pieces
Water tank 30L
NW(KG) 170+20
GW(KG) 230
Packing size(CM) 76x66x134cm





Detail picture:

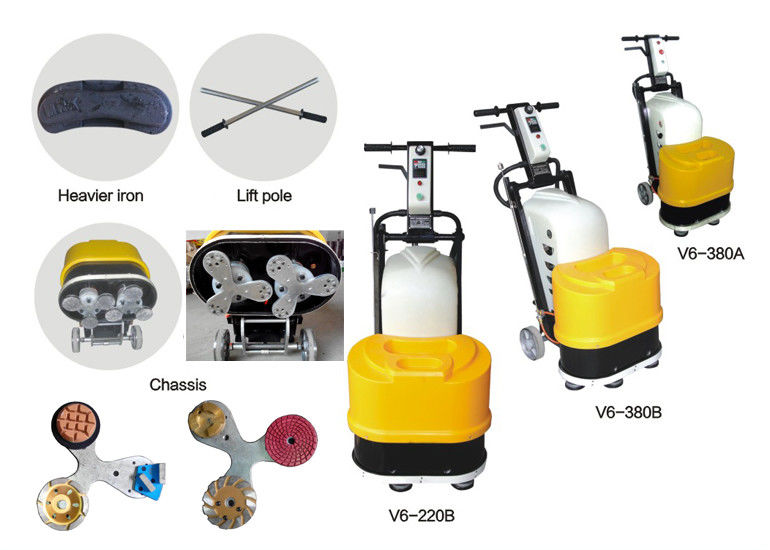

4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V with 2 pieces lift pole, 1 piece additional weight



4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V 0







Available abrasive:



Diamond resin pads



1. Wet polishing pad for wet grinding and polishing the marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry polishing the granite, stone, marble, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing the marble, granite, terrazzo and concrete floor.



4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V 1

Diamond grinding shoes for terrazzo, concrete and epoxy floor

Metal diamond grinding discs for terrazzo, concrete and epoxy floor

Metal diamond grinding blades for terrazzo, concrete and epoxy floor



4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V 2





Packing:



Carton with iron frame



4KW Concrete Marble Granite Terrazzo Floor Grinder Single Phase 240V 3



V6-V12 concrete grinder.pdf



Tag: marble floor polishing machineterrazzo floor grinding machine
